Deploying Workspace ONE UEM applications to Windows devices

Overview

This guide focuses on how to use Omnissa Workspace ONE UEM to successfully deploy and manage applications on Windows devices, with focus on MSI, EXE, and ZIP file deployment.

Applications may be installed as part of initial Windows device provisioning or after device enrollment.  This guide assumes that the Workspace One Intelligent Hub is already installed, as well as successful device enrollment.

Although still supported, Product Provisioning is considered legacy for Windows Desktop and is not recommended, nor will it be addressed herein.  Omnissa recommends adopting Freestyle Orchestrator as the replacement.

Key topics covered within this document include:

  • Windows Software Distribution processes
  • Key configuration settings, as well as assignment
  • New functionality, including Fetch, App Volumes integration, and ADMX Profiles
  • Validation and troubleshooting

Considerations and notes

Please note the items below:

Multiuser impact on applications

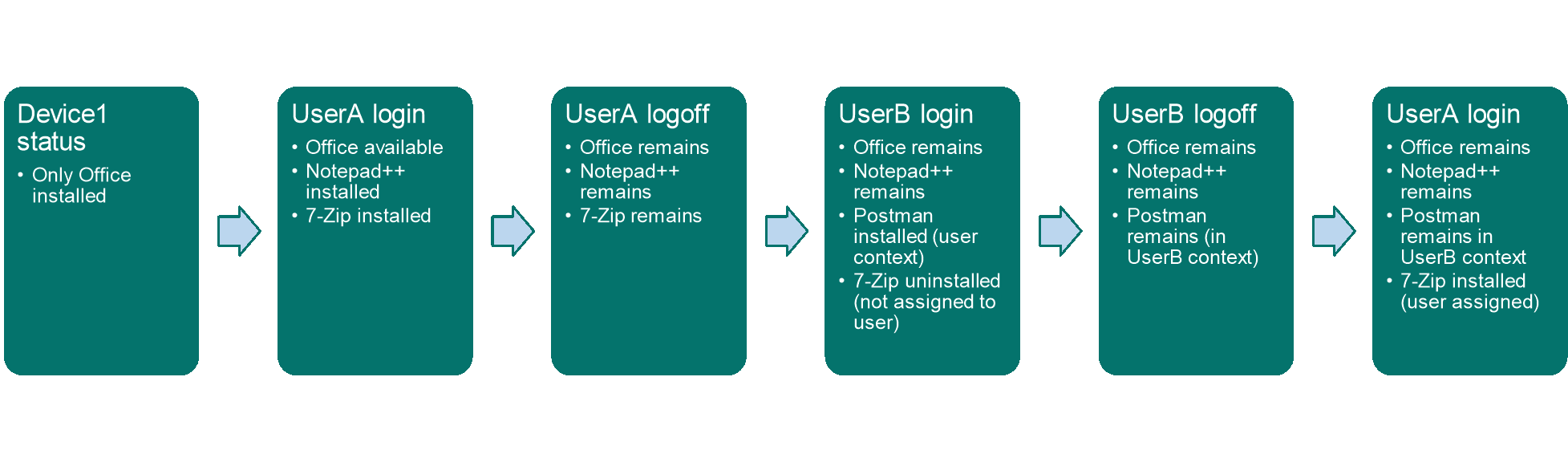

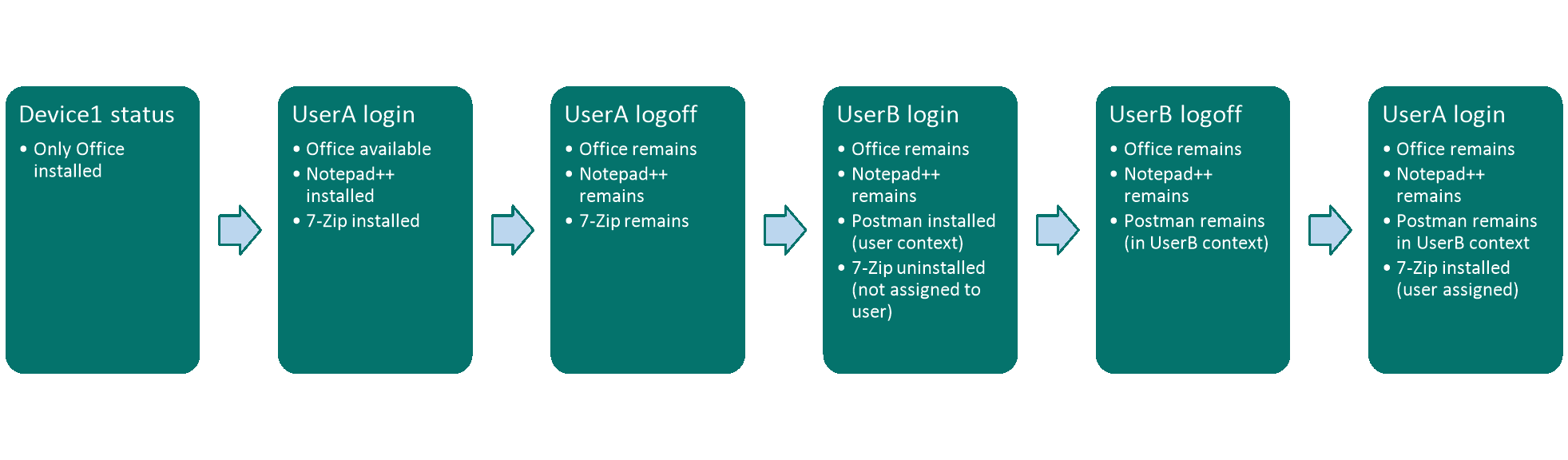

The new Windows Multiuser default can have a significant impact on applications installed on Windows Desktop devices.  Multiuser considerations are detailed below.

Web apps

This document primarily focuses on the installation of native apps onto Windows devices.  Web apps such as Salesforce and Jira are often referred to as SaaS apps and can easily be enabled for any Workspace ONE managed device, not just Windows.  To enable Web apps, select Resources > Web Links.  For more information about configuring Web apps, please see Omnissa docs.   These apps should then be presented to users alongside native apps within the Workspace ONE App Catalog.

Win32 API references

The term Win32 Apps is often used to describe all Windows applications when in fact, those applications are no longer just 32-bit applications but also have evolved to 64-bit applications. However, Win32 API continues as the name of the interface that supports both 32- and 64-bit applications.

Microsoft has ceased support for 32-bit Windows operating systems; thus, this guide focuses on Windows 10/11 64-bit and ARM operating systems that run both 32- and 64-bit applications.


What is Windows Software Distribution?

Windows Software Distribution, sometimes represented as SfD or SFD, focuses on downloading and deploying native applications locally onto Windows computers.  Whether applications are administratively forced onto the Windows device or selected for installation by the user through the Intelligent Hub, the result is that the application is installed onto the Windows device.

Note that the terms software distribution and application deployment are used interchangeably throughout this document.

Software Distribution steps

Workspace ONE UEM securely and methodically deploys applications to Windows devices.  On the client device, four key steps occur:

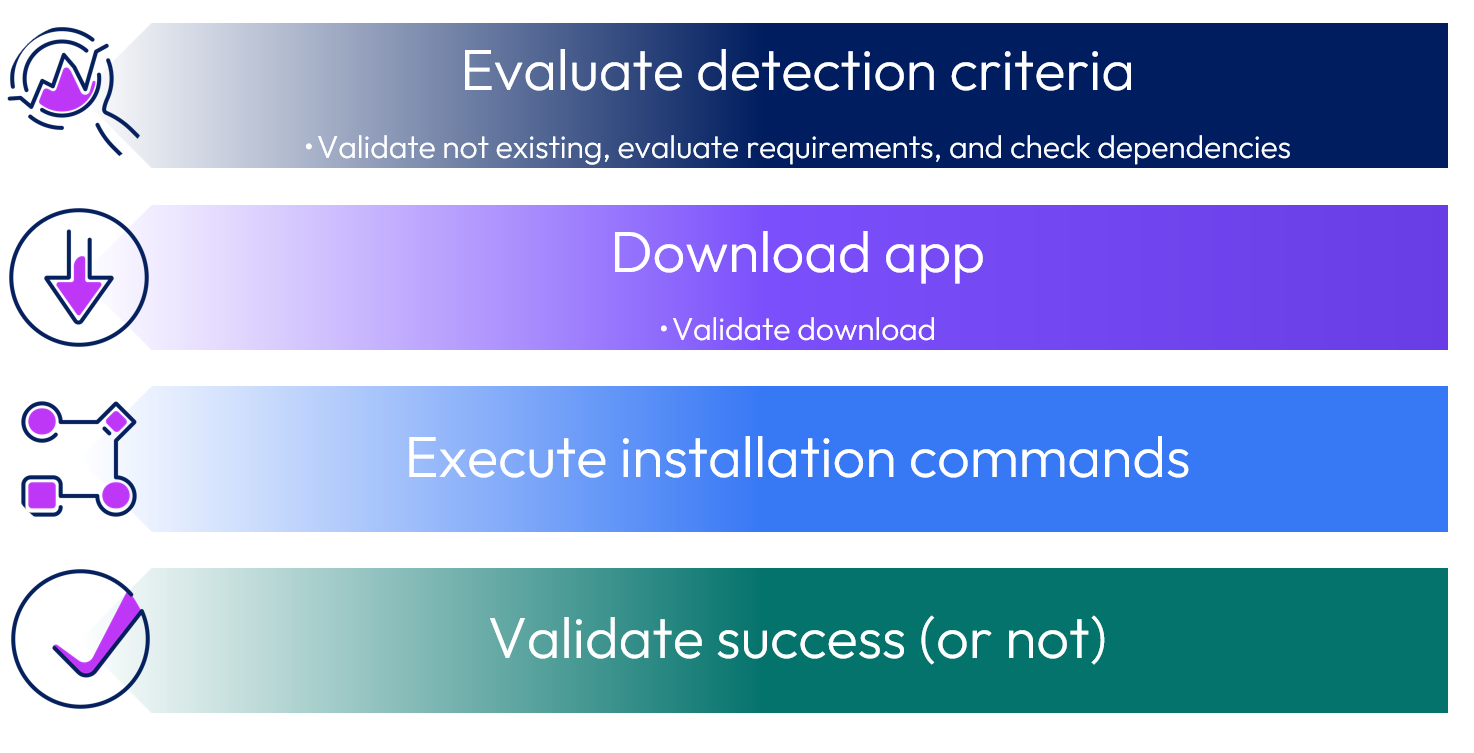

A group of colorful rectangular buttons

AI-generated content may be incorrect.

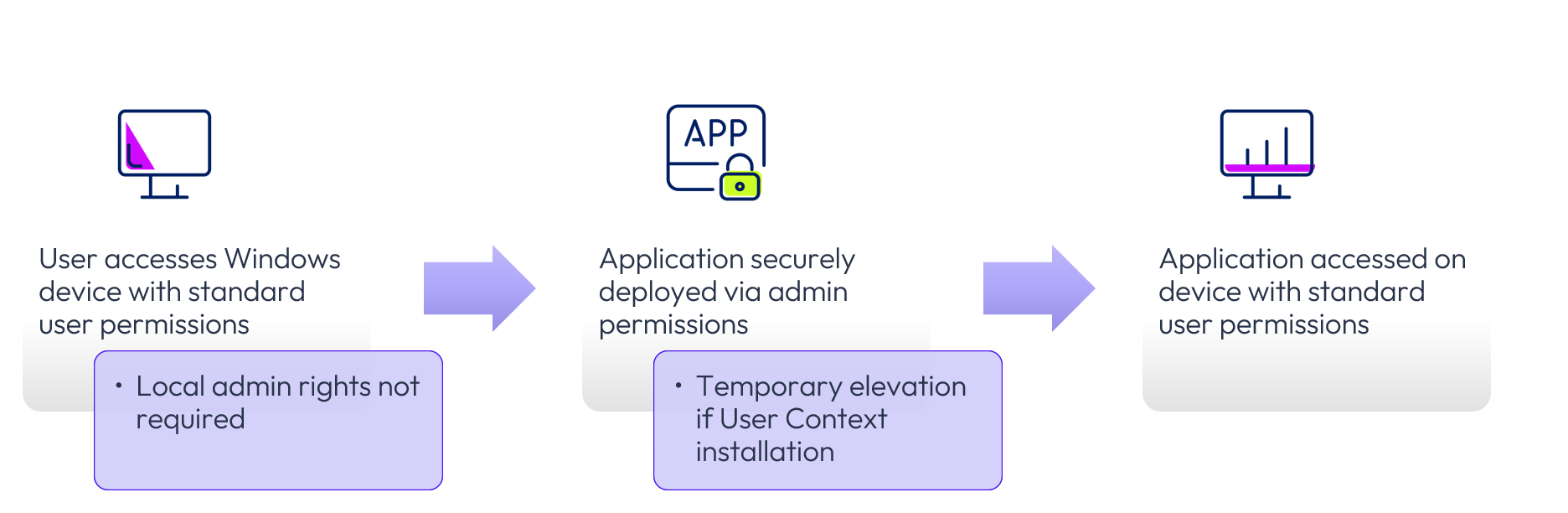

Figure 1: Software distribution process on Windows device

Application installation process

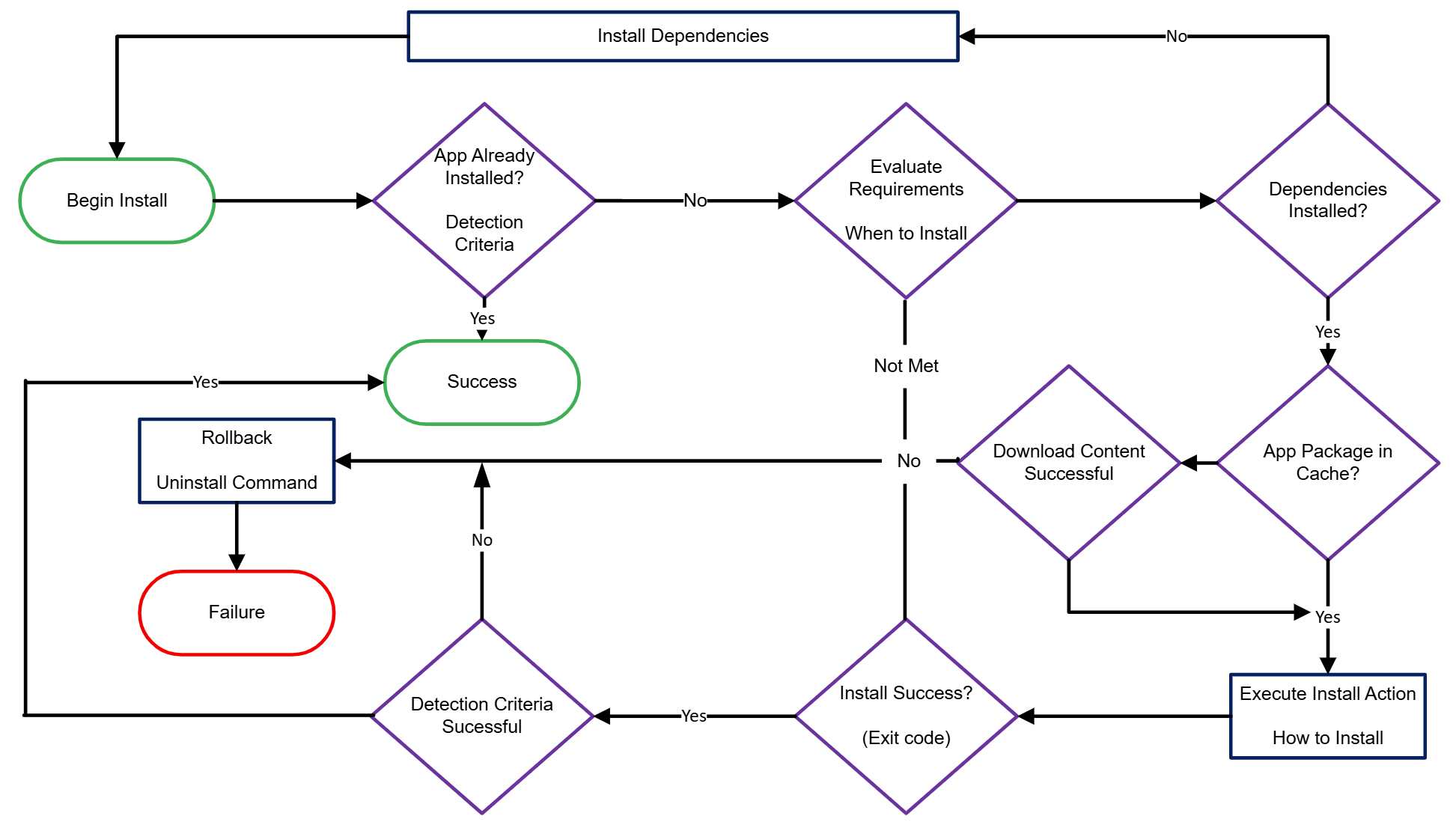

The complete Windows application installation process is depicted below.

A diagram of a flowchart

AI-generated content may be incorrect.

Figure 2: Workspace ONE Windows application installation process

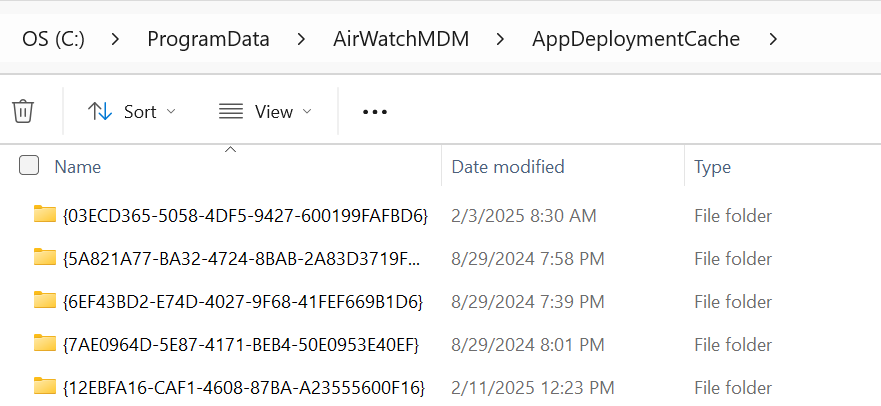

When an application is deployed via Workspace ONE, the file(s) are stored within this path:

C:\ProgramData\AirWatchMDM\AppDeploymentCache

As such, the Windows device hard drive must have sufficient space to house these installation files.

Workspace ONE UEM does more than simply install application packages.  As shown in the flow chart above, numerous checks occur during application installation to maximize success; however, if an app cannot be successfully installed, it is rolled back.  Additional actions such as reboots can be incorporated into the software distribution process; the graphic above only shows the base process flow.

For more details regarding the device-side processes, please see the troubleshooting section.

Software distribution tools

Omnissa provides several features and tools that may be used to facilitate Windows application deployment, including:

  • Enterprise App Repository is a built-in catalog of popular ready-to-go applications that minimizes the need for app configuration.
  • Application File is the most commonly used way to configure application deployment.

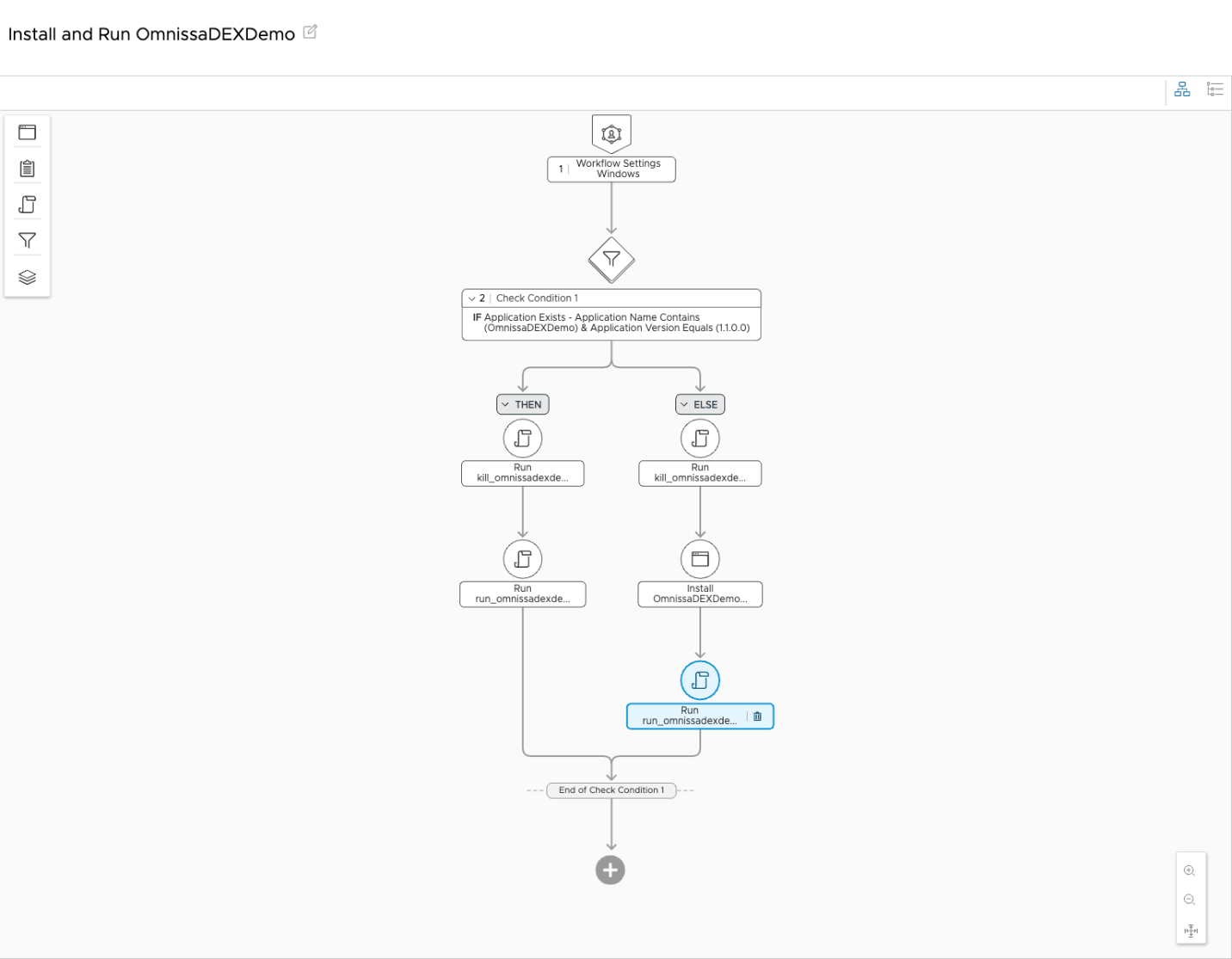

  • Freestyle Orchestrator, which streamlines appending steps and processes, such as if/then steps or the installation of dependencies, as part of the application workflow.
  • App Volumes may be integrated with Workspace ONE UEM to output application MSI packages for simplified software distribution ingestion.

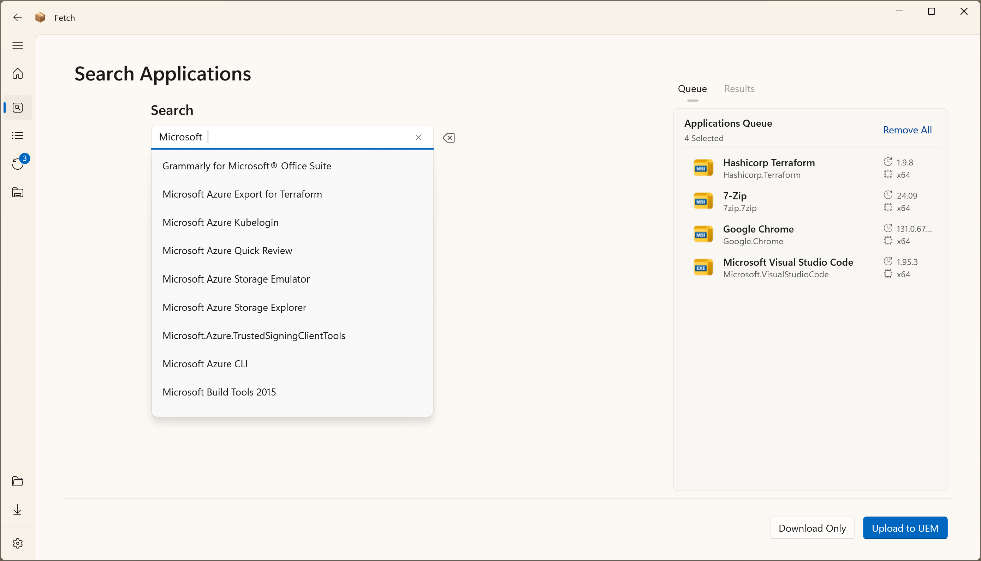

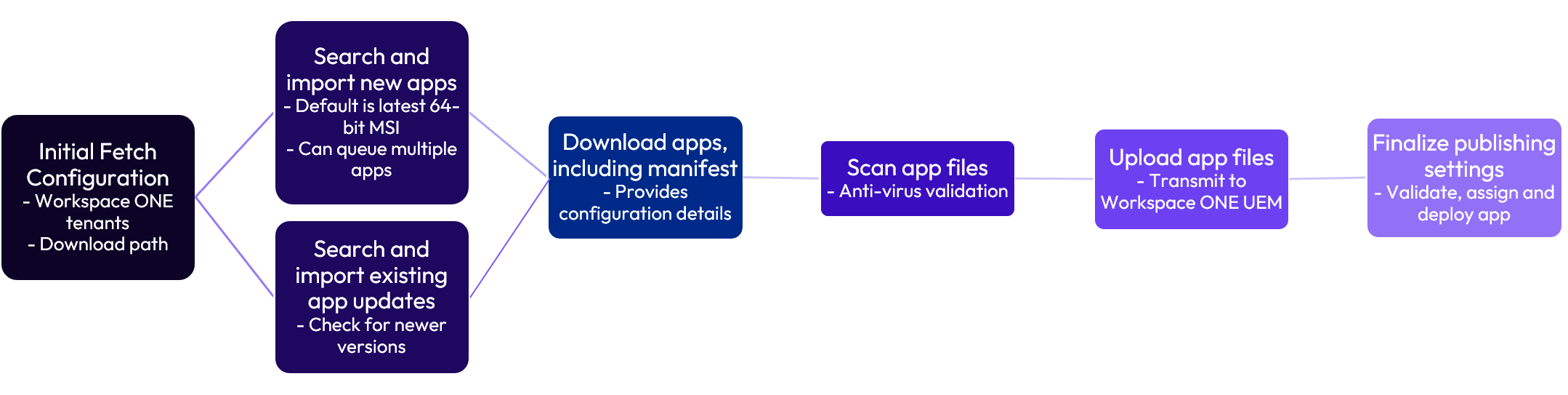

  • Fetch is a GitHub utility that enables bulk application management.

Each of these tools are discussed later in this document.

In addition, third-party vendor products such as Flexera may be used for creating and managing application packages; however, the use of such tools is beyond the scope of this document.

Before deploying applications

Prior to deploying applications, consider how Intelligent Hub and application sourcing will be enabled.  Windows software distribution and Content Delivery Network (CDN) deployment are automatically enabled for SaaS deployments.

Prerequisites: Intelligent Hub and Software Package Deployment
When Workspace ONE Intelligent Hub is installed on a Windows device, the Software Distribution Agent (SFDAgent), which is used for application deployment, is subsequently pushed to the device; no additional client-side components are necessary.  Intelligent Hub and Software Distribution Agent must be installed before application deployment can commence.

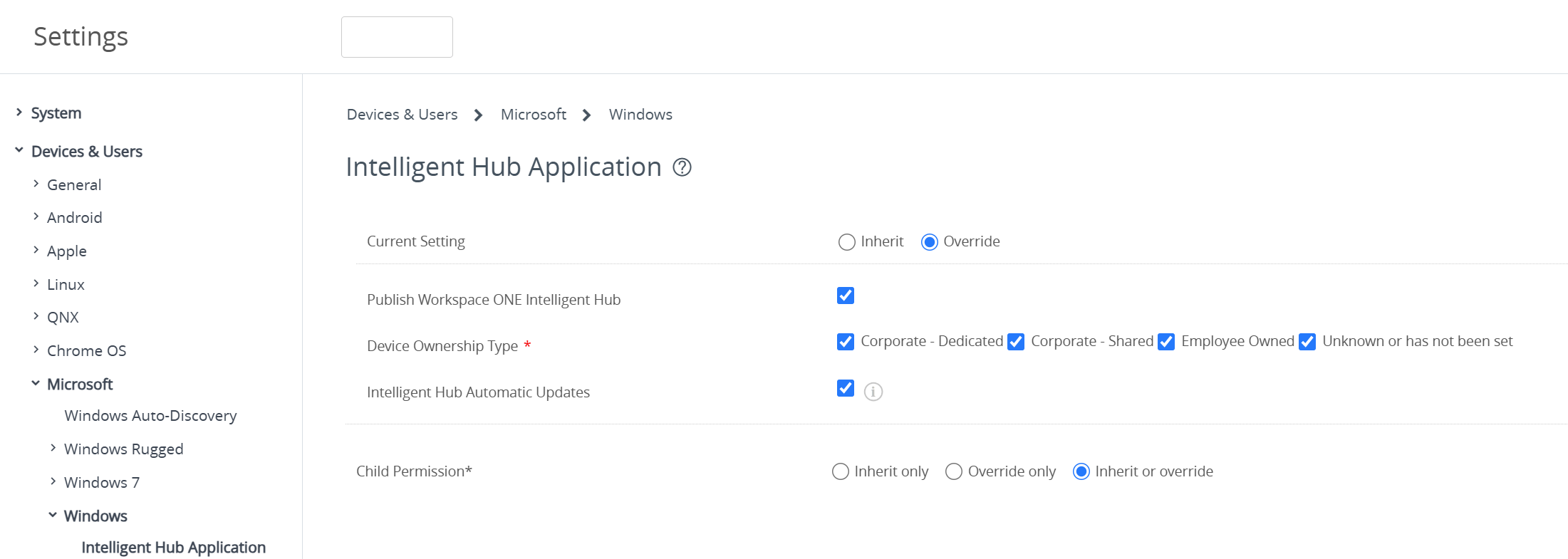

Intelligent Hub can be installed manually by the user from https://getwsone.com or automated as part of Windows device enrollment and provisioning; please see Omnissa Docs for information about this functionality. Administrators should ensure that Intelligent Hub is published for users and updated by configuration within Groups & Settings > All Settings > Devices & Users > Microsoft > Windows > Intelligent Hub Application.

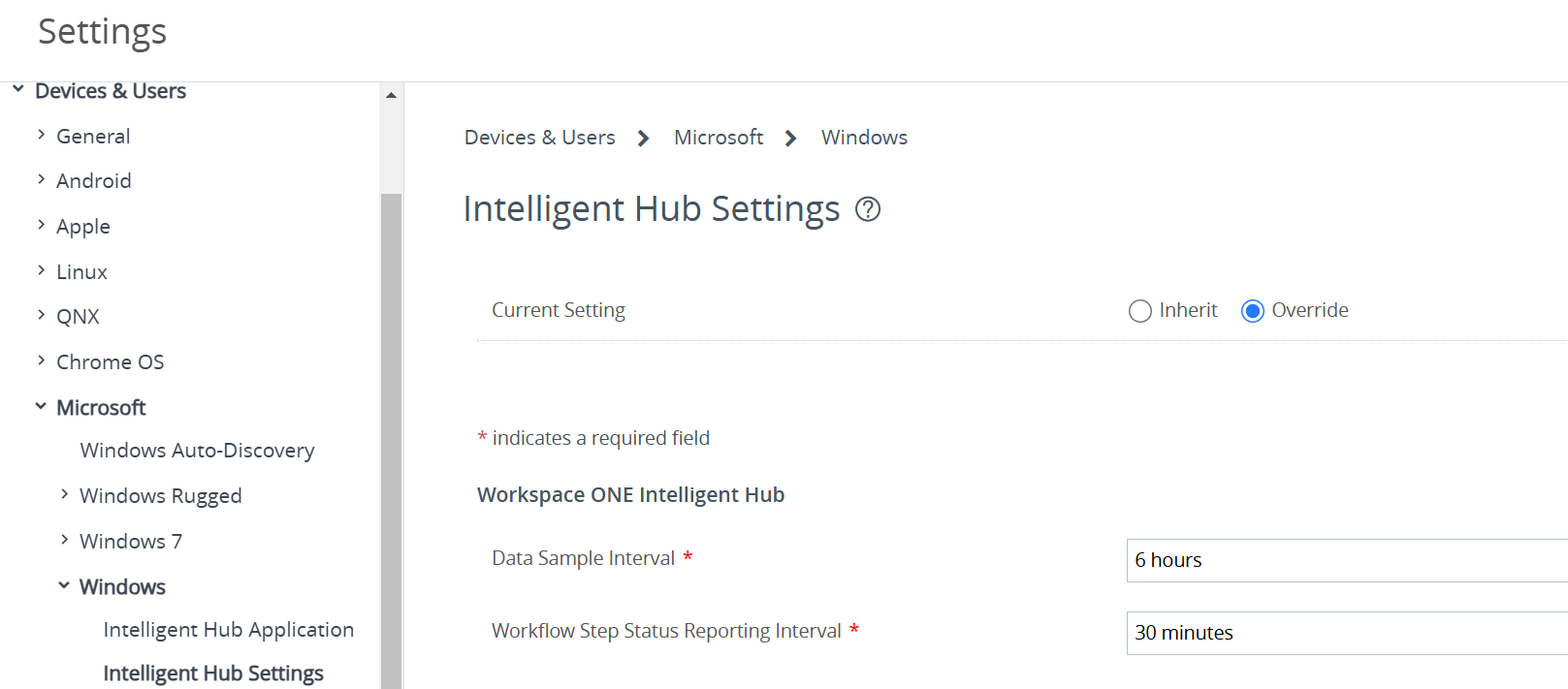

 A screenshot of a computer

AI-generated content may be incorrect.

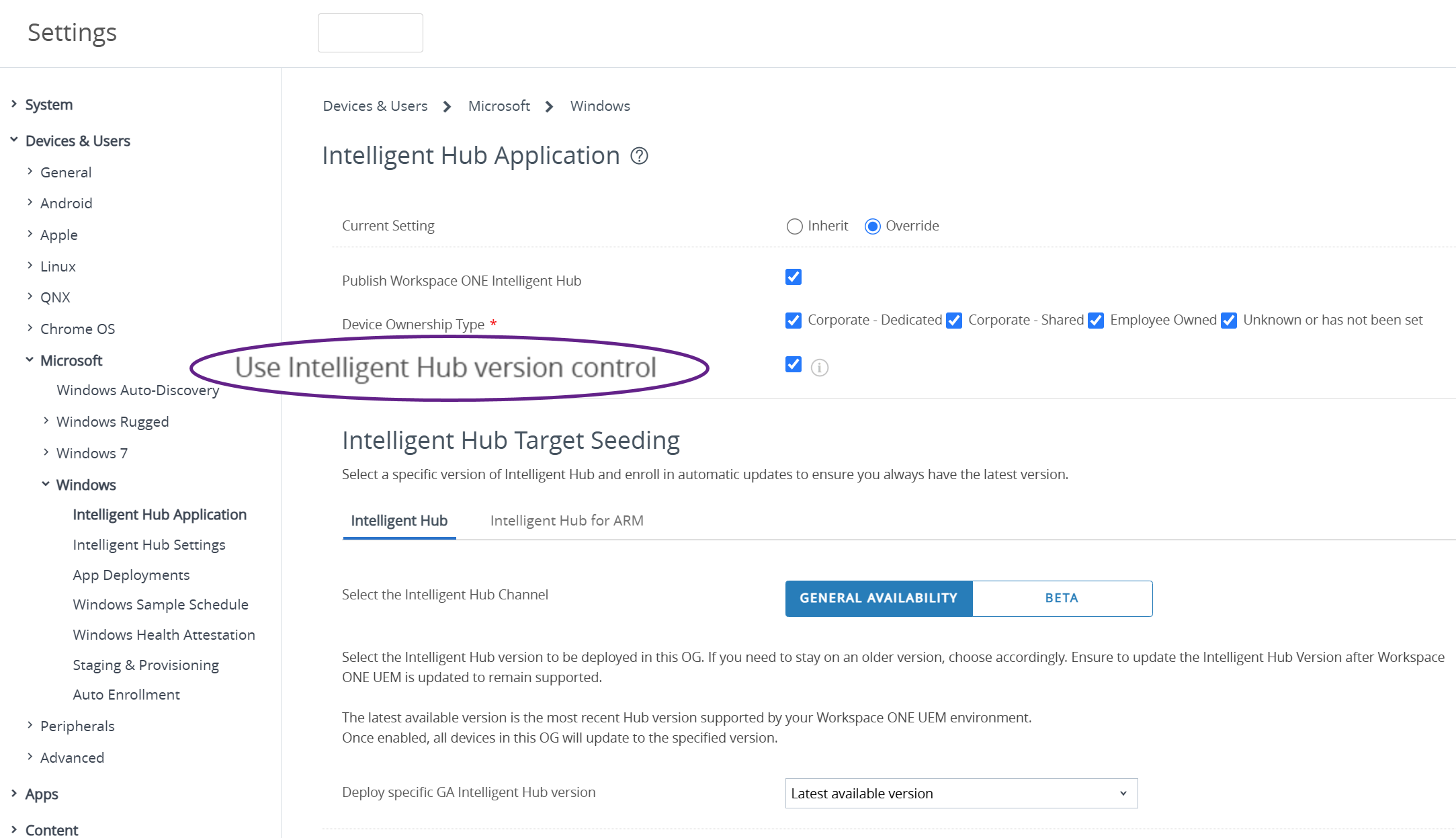

Figure 3: Intelligent Hub settings

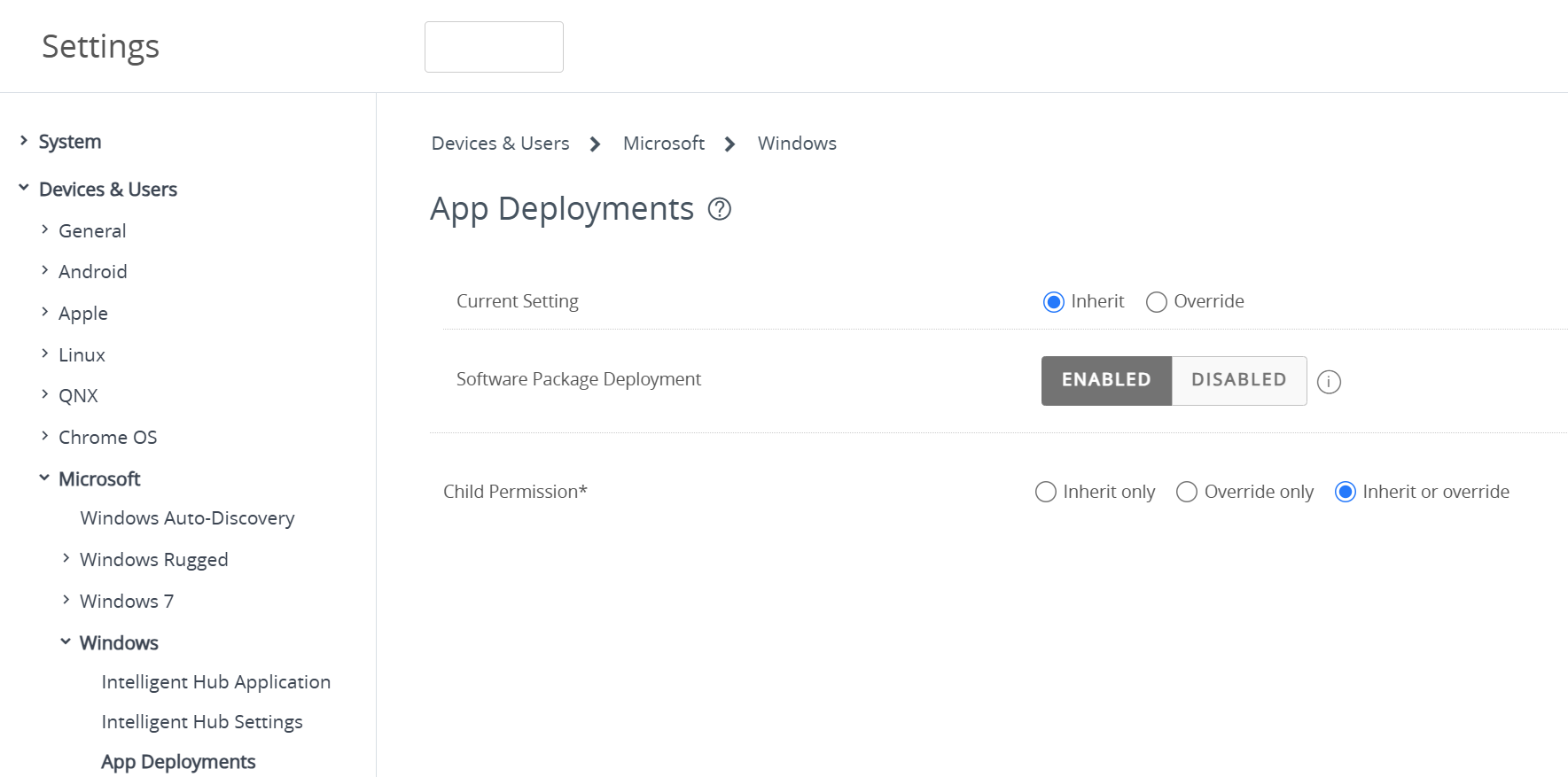

By default, Software Package Deployment is enabled; it is required for application functionality.  Note that Airwatch Admin rights are necessary to view Software Deployment status; console admins cannot see this tab.

A screenshot of a computer

AI-generated content may be incorrect.

Figure 4: Software package deployment configuration

Application source: CDN, Peer Distribution, and deployment ring decisions

Workspace ONE Saas environments are automatically granted 500 GB for application package storage.  Additionally, the maximum size for individual files uploaded as application installers is 10GB. Storage space and file size can both be increased upon request through Global Customer Support or your Omnissa account team.

Especially in large environments, application files should be dispersed by means of Content Distribution Network (CDN) and/or made available via Peer Distribution.  Configuration is straightforward and should be enabled as part of initial rollout.

Content distribution network (CDN)

By default, SaaS environments make use of worldwide CDN functionality for application deployment to minimize latency.  This is automatic for SaaS tenants but must be configured for on-premises customers.  Not only does CDN provide efficient distribution of installation binaries, it also provides secure storage for those binaries and installation commands.

The CDN URL that is autogenerated and used for accessing the application installation binaries automatically refreshes, eliminating timeout issues.  For example, if a user is on vacation for two weeks and a new app has been assigned to their device during that timeframe, the application can still be successfully deployed because the CDN URL will not go stale.

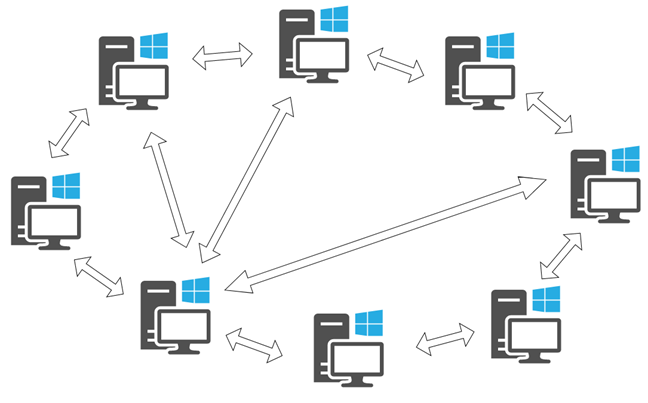

Peer Distribution

Workspace ONE Peer Distribution enables scalable and efficient distribution of Windows applications. Peer Distribution can reduce the time taken to download large applications in a large branch office site, minimizing network bandwidth and providing faster deployments by downloading from peers on the same network.


Image result for p2p

Figure 5: Peer Distribution

Peer Distribution also reduces download waste by surviving network disconnects in volatile environments with automatic congestion throttling and download restarts where the downloads left off. Further, when combined with Content Delivery Network (CDN) and Smart Groups configured as Deployment Rings, Peer Distribution provides the most efficient software distribution.

Workspace ONE leverages the BranchCache feature native to the Windows operating systems. Administrators in the Workspace ONE UEM console have the ability to define whether Workspace ONE Peer Distribution is configured to run in hosted, distributed, or local mode, and define which devices are in scope via Smart Group assignments.

Peer Distribution is configured via a Workspace ONE profile and is disabled by default.  The options are presented via Resources > Profiles > Add > Add Profile > Windows > Windows > Device > Peer Distribution mode

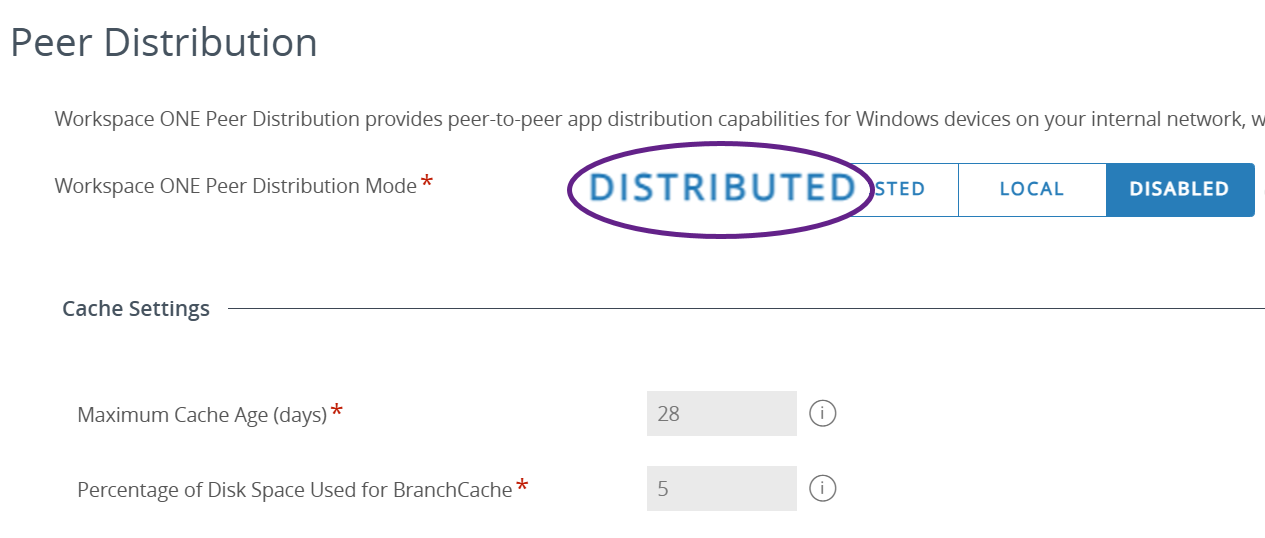

Omnissa recommends designating Distributed mode for efficient distribution of application installation files via peer devices on the same local subnet.  This is similar to the Omnissa best practice of enabling Delivery Optimization for Windows updates.

A screenshot of a computer

Description automatically generated

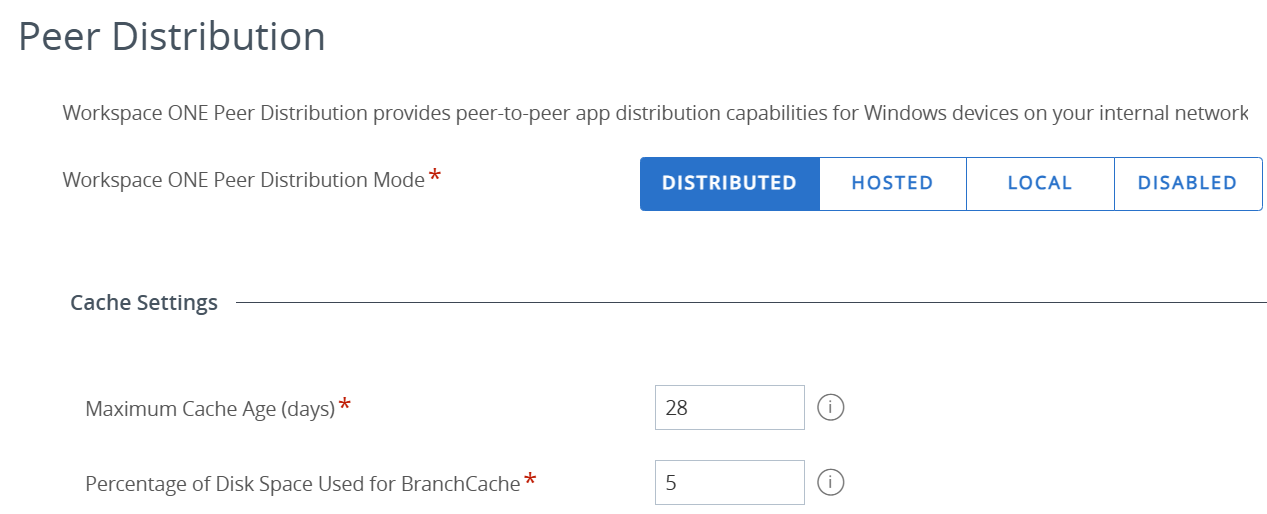

Figure 6: Configuration of Peer Distribution

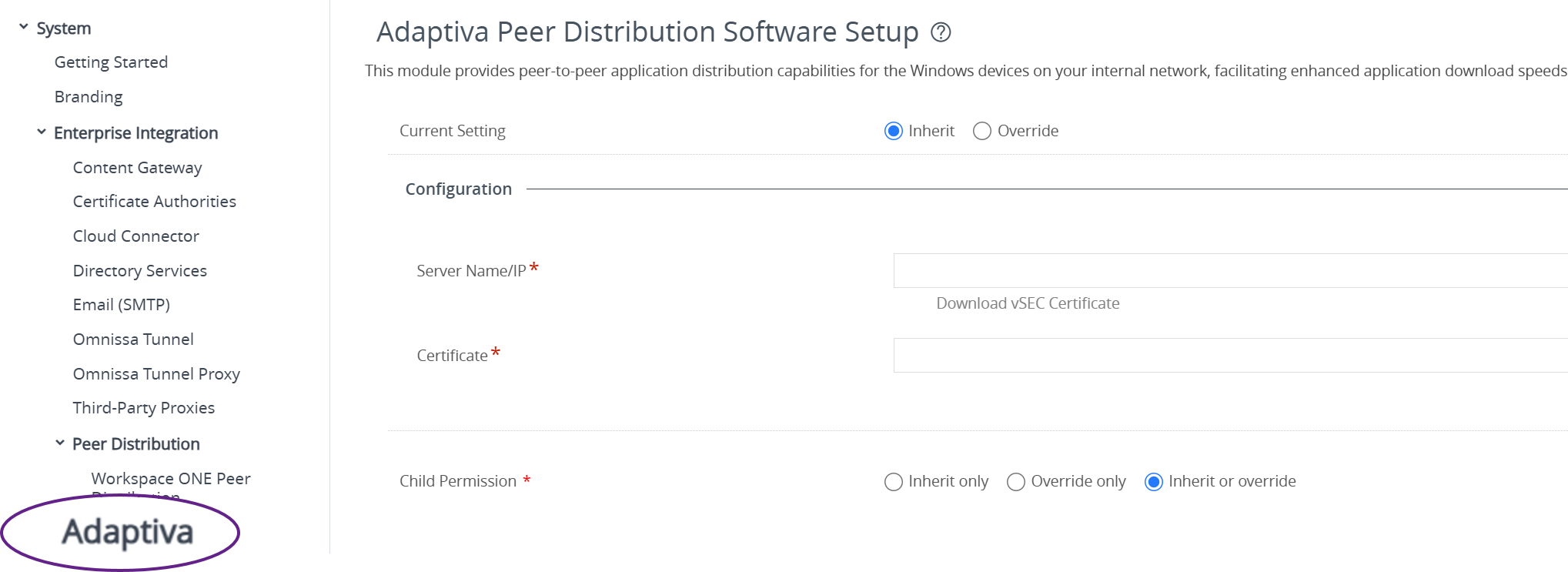

Third-party technologies such as Adaptiva Peer-to-Peer Content Distribution or 1E Nomad can be utilized in place of Peer Distribution to provide additional capabilities. Please refer to Peer-to-Peer Software Distribution with Adaptiva and Peer-to-Peer Software Distribution with 1E Nomad for additional information.

A screenshot of a computer

Description automatically generatedFigure 7: Adaptiva peer distribution

CDN + Peer Distribution + deployment rings

As a best practice, Omnissa recommends combining CDN with Peer Distribution Distributed Mode and Deployment Rings to distribute applications in a structured, low-risk and low-bandwidth usage approach.

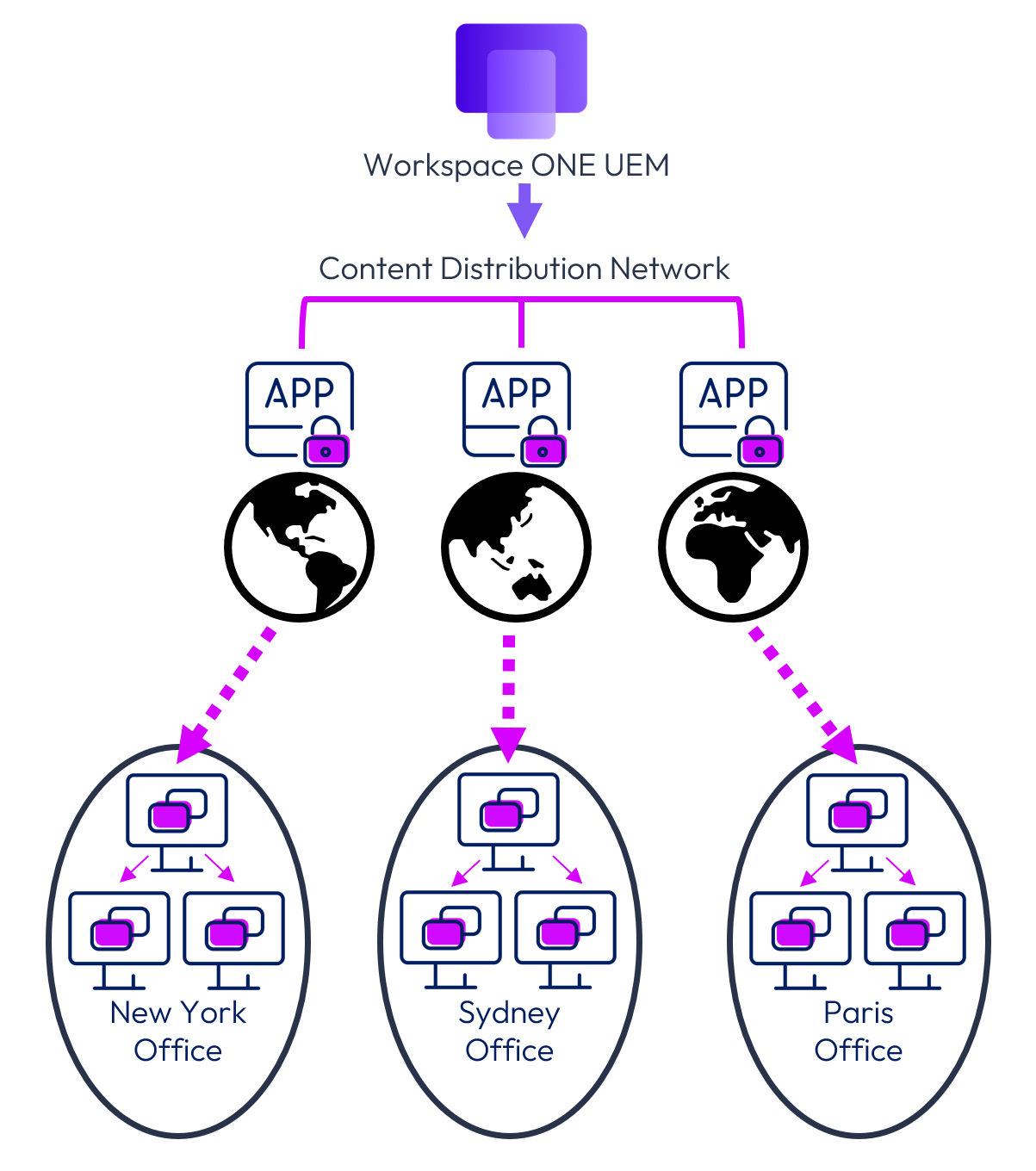

A diagram of a network

Description automatically generated

Figure 8: CDN and peer distribution example

In the example above, a small number of devices within each office (New York, Sydney and Paris) is a member of the Pilot Deployment Ring Smart Group. Once the application is assigned to the Smart Group, the first devices within each office begin downloading and installing the application. This provides the following advantages:

  1. Reduces the risk of an application deployment affecting the entire company, an entire office or business unit
  2. Provides for less disruption to business users
  3. Allows IT to assign new applications to ‘friendly’ users or application SMEs
  4. Provides for less disruption if there is a problem with the application
  5. Reduces the effect on Service Desk if there is a problem with the application
  6. Reduces bandwidth usage at that point in time within each office
  7. Allows devices that are roaming outside the office network or in a different office to continue to receive these applications

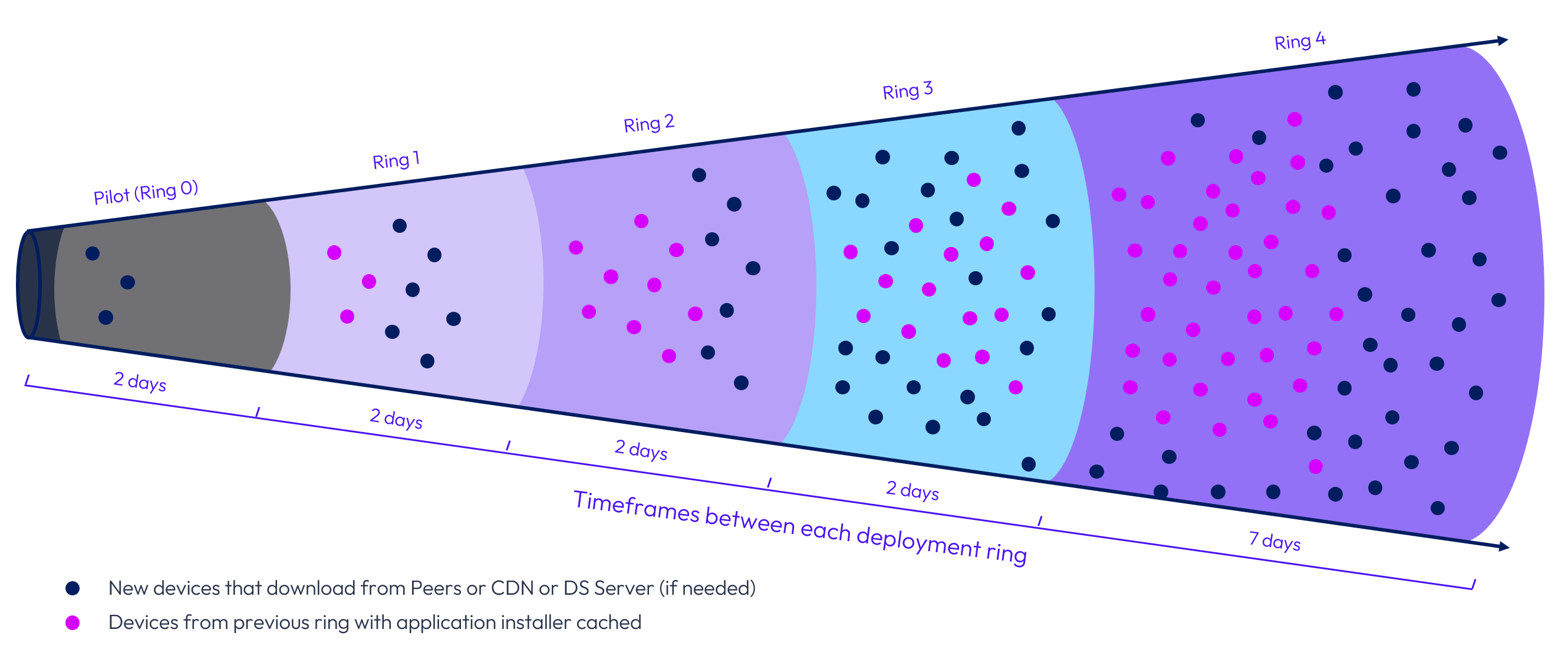

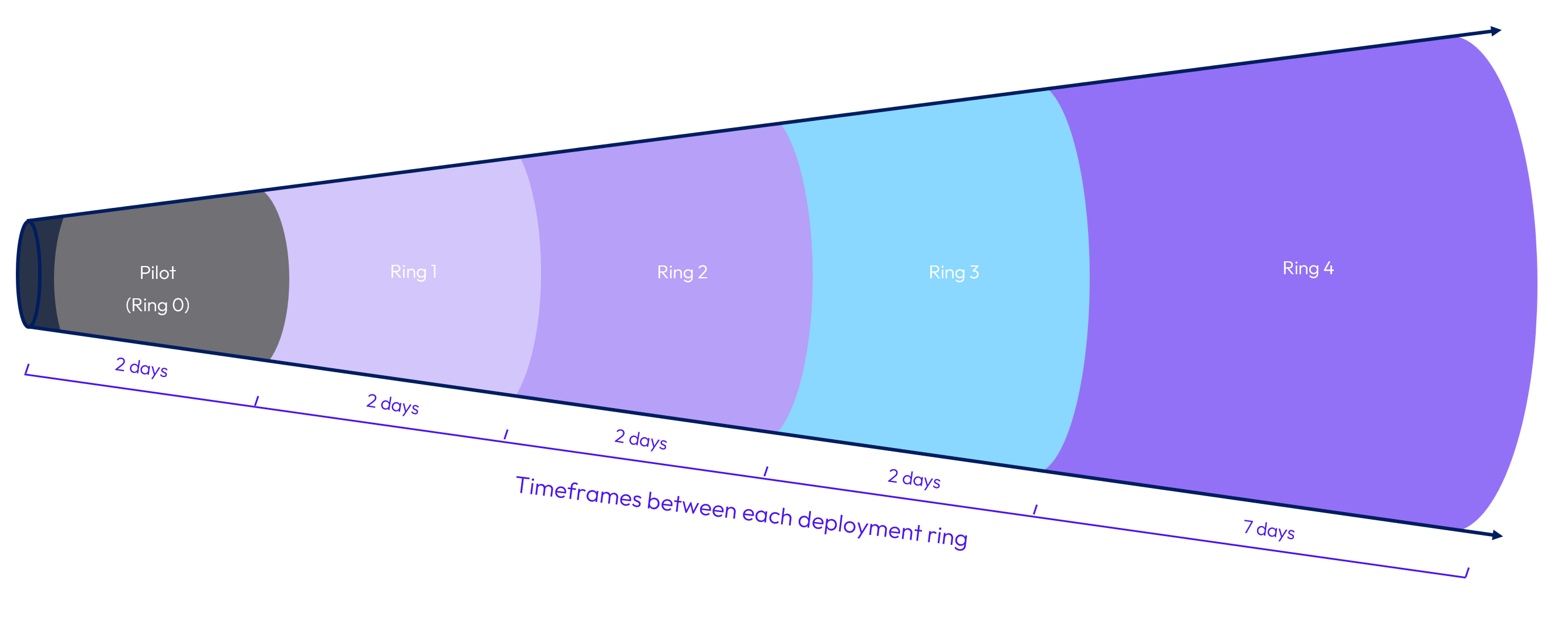

The following illustration shows the sample timeframes between each Deployment Ring of logical device groups. The timeframes between each deployment allows devices to receive the application installers and install them, taking into consideration time zone differences, roaming users, and device check-in cadence. Each sequential Deployment Ring logically appends devices from the previous ring, thereby growing the number of target devices.

A blue and purple cone

AI-generated content may be incorrect.

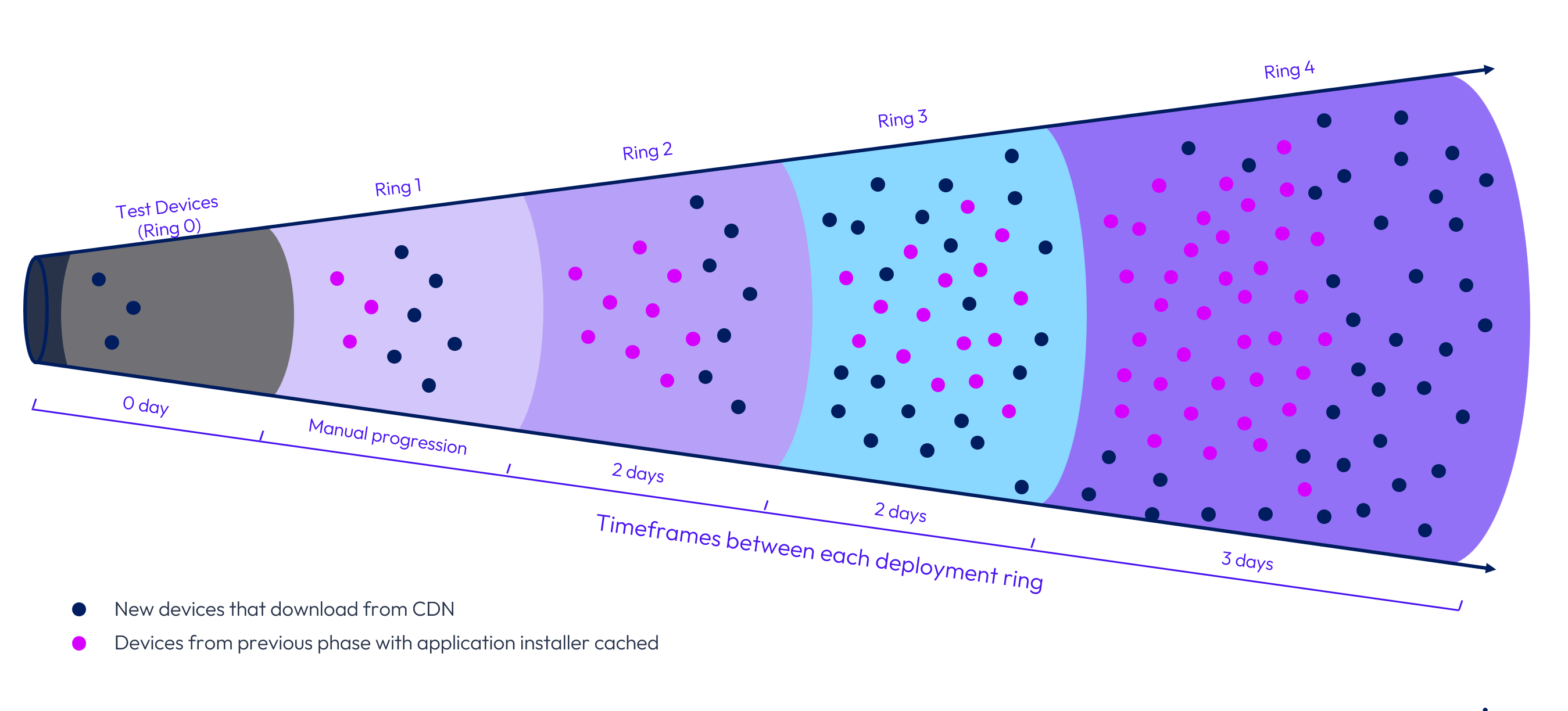

Figure 9: Deployment ring

Once the pilot group of devices has pulled down the application installer and installed the application, the next Deployment Ring will be activated by assigning the subsequent Deployment Ring Smart Group to the new application. Devices within the next Deployment Ring Smart Group will begin to download the application installer from devices within their respective subnet (peers), and proceed with deployment, thereby reducing bandwidth, and speeding up application deployment.

The process continues with each subsequent Deployment Ring Smart Group targeting more devices and leveraging an ever-larger cache of application installers from local peers and then becoming peers themselves for other devices. This is shown in the following diagram:

A diagram of a blue and purple cone

AI-generated content may be incorrect.

Figure 10: Application deployment to subsequent deployment rings

Application deployment: Native Apps

Windows application packages are created as Native Apps.  Note that there are three options presented: Internal, Public, and Purchased.  Windows apps can only be configured as Internal.  There are two options presented after selecting Resources > Native Apps > Internal > Add:

  • Application file, which is the most common way to deploy all applications
  • Enterprise App Repository, which offers pre-configured basic packages for a multitude of applications

Other means for deploying applications will be discussed later in this guide.

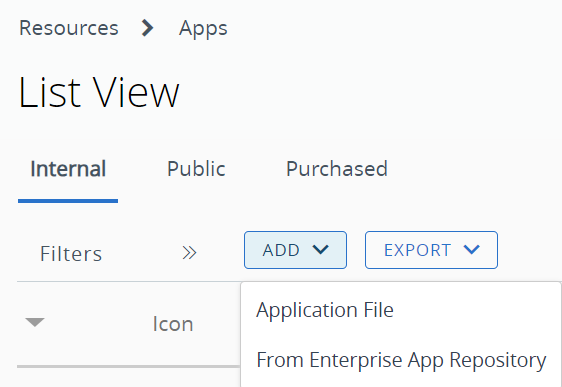

A screenshot of a computer

Description automatically generated
 Figure 11: Options for adding a new Windows application

For simplicity, this section will walk through the steps to deploy a basic package to Windows endpoints by accepting the defaults.  These processes will be addressed first via the Enterprise App Repository and then as an Application File.

Enterprise App Repository method

After selecting this option and choosing an application from the repository, simply follow the wizard.  Details such as install context, install command, uninstall command, and admin privileges are automatically pre-configured.

A screenshot of a computer

AI-generated content may be incorrect.

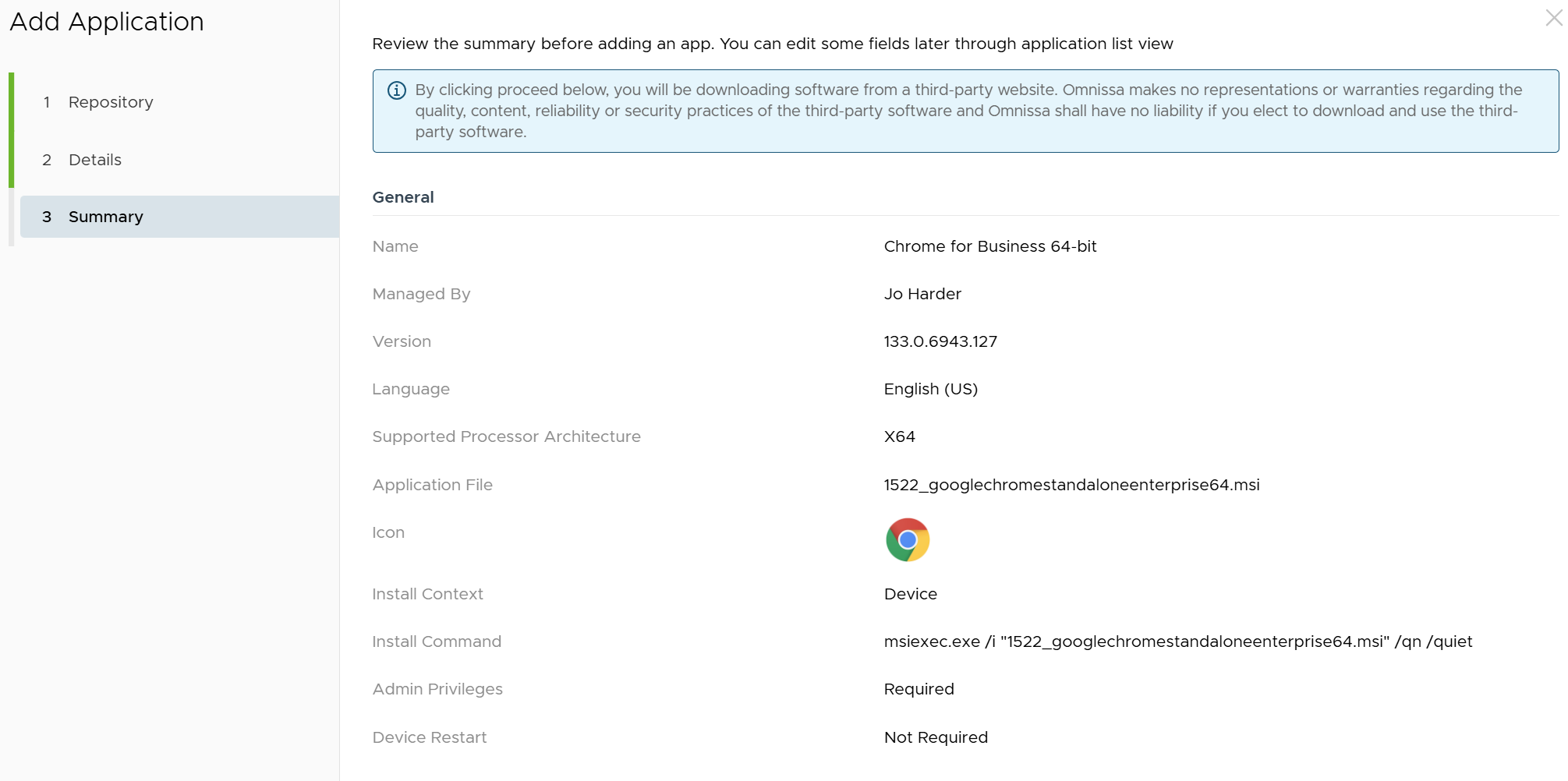

Figure 12: Three steps to add an app from Enterprise App Repository

After the package is created, two additional actions should be undertaken:

  • Edit the package if necessary
  • Assign the appropriate Smart Group(s) to receive the package

A new version of this application can be added from the Enterprise App Repository at a later time.

The Enterprise App Repository was refreshed in early 2025, providing new applications and newer versions of existing applications.  If you require applications not available within the Enterprise App Repository, please reach out to your account team to make this request.

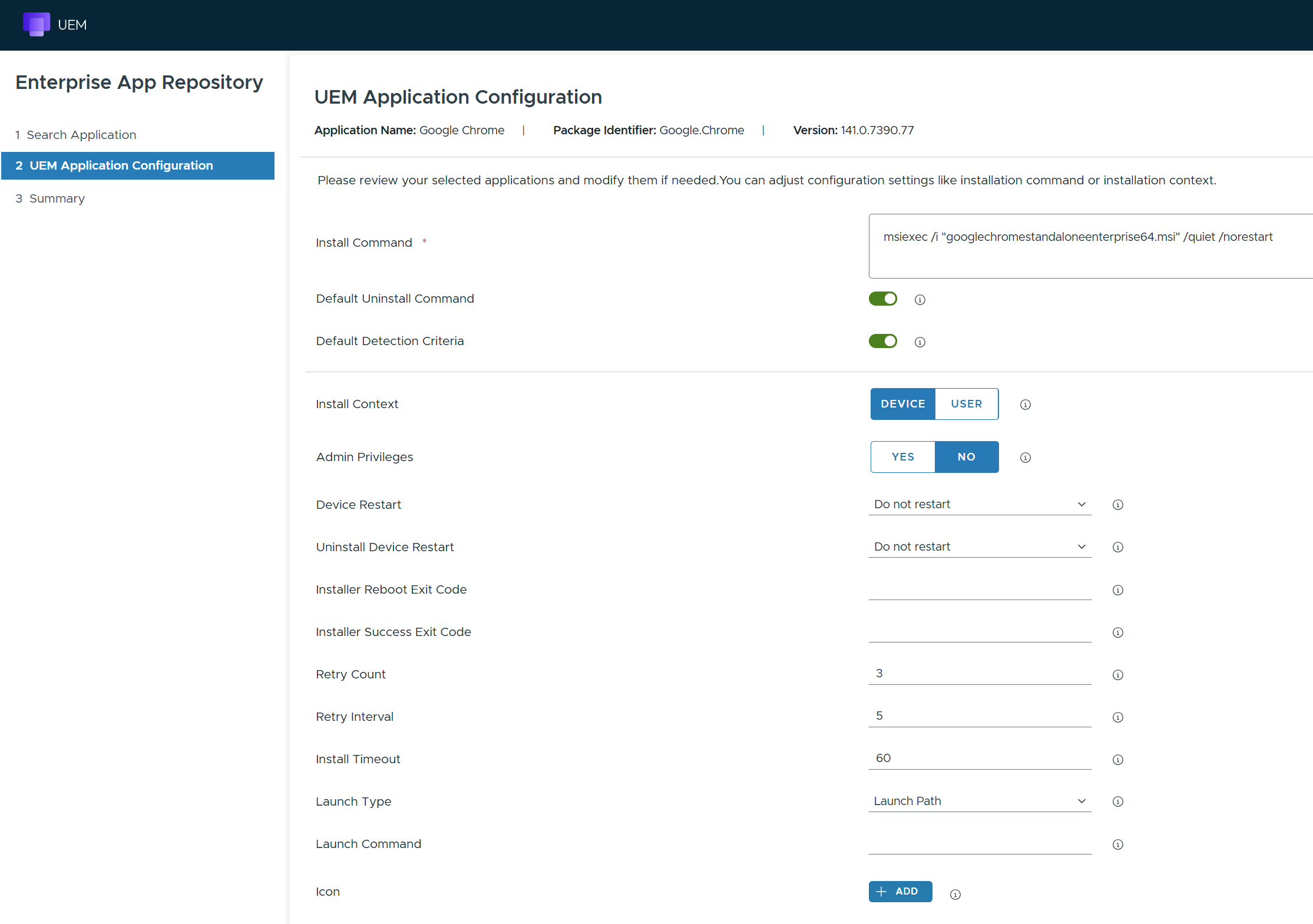

Edit Enterprise App Repository package (if necessary)

It may be necessary to modify one or more settings within the pre-configured application package. For example, you may wish to modify the app icon or designate terms of use.  After scrolling through the five tabs and making any needed changes, click Save and Assign.

Assign Smart Group(s)

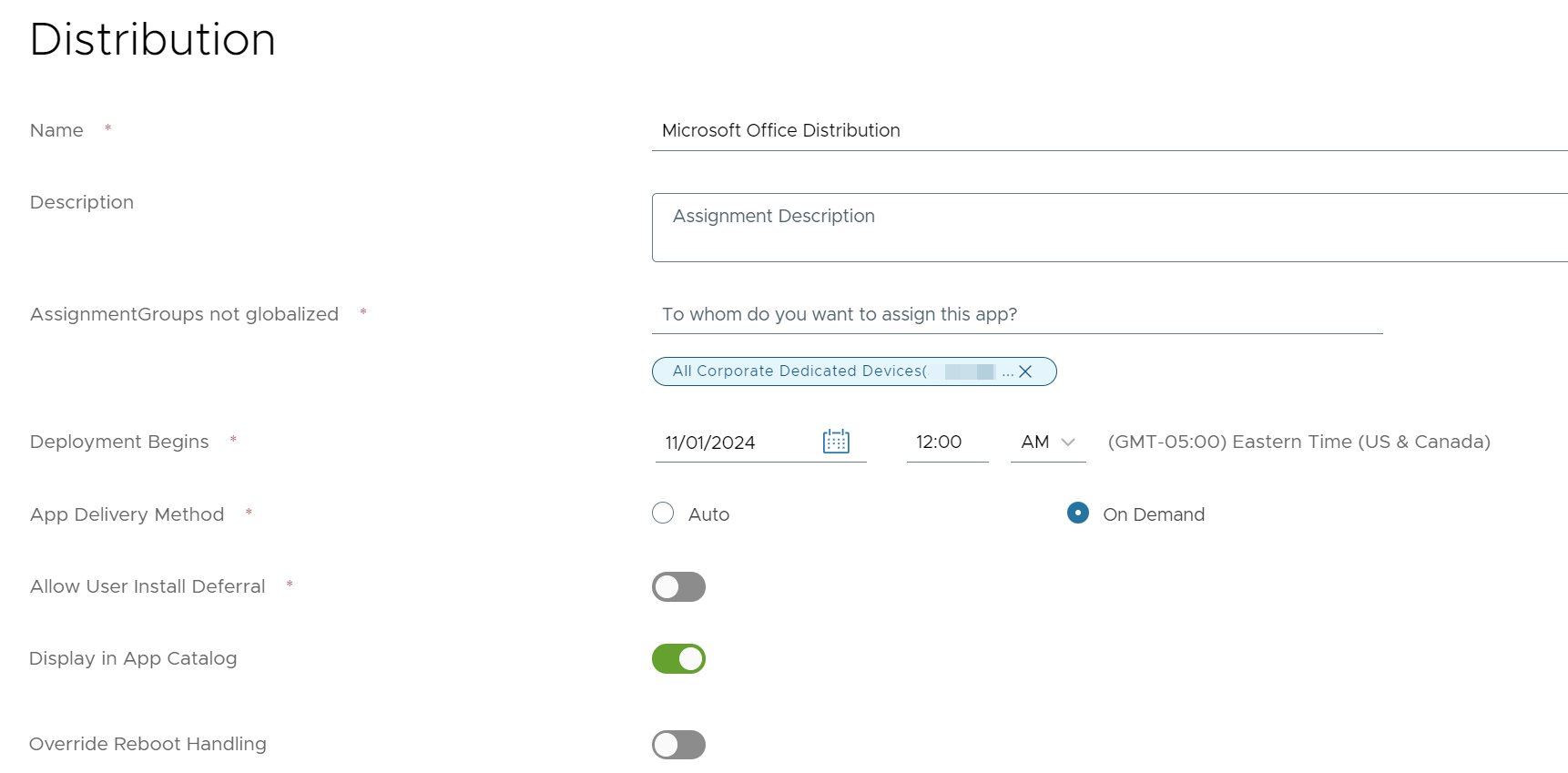

After designating the Smart Group(s) to which this package should be assigned and reviewing the distribution settings, click Save and Publish.

Application File method

The most common means of deploying applications is via Application Files.  Before creating an Application File, note that four key items are required:

A screenshot of a computer

AI-generated content may be incorrect.

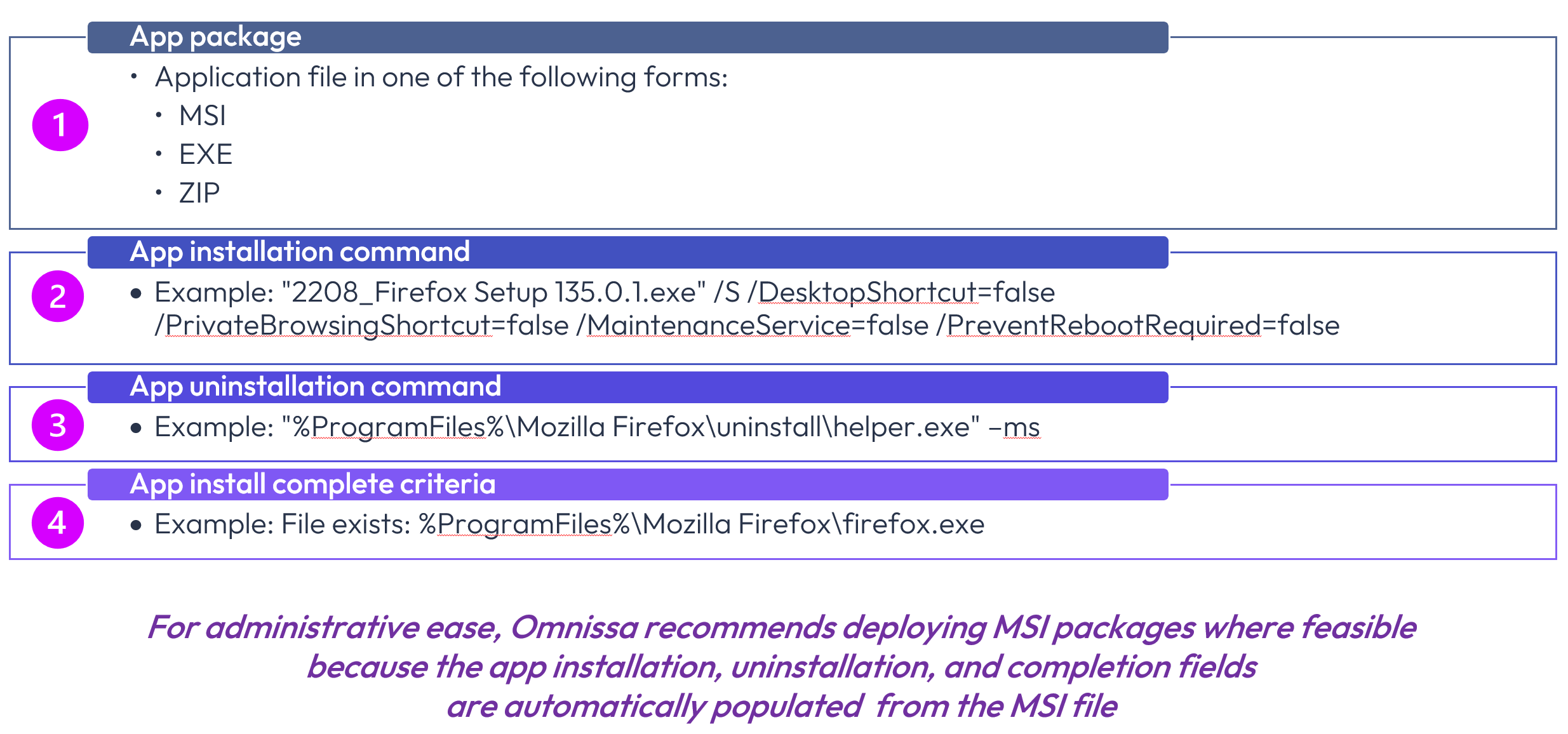

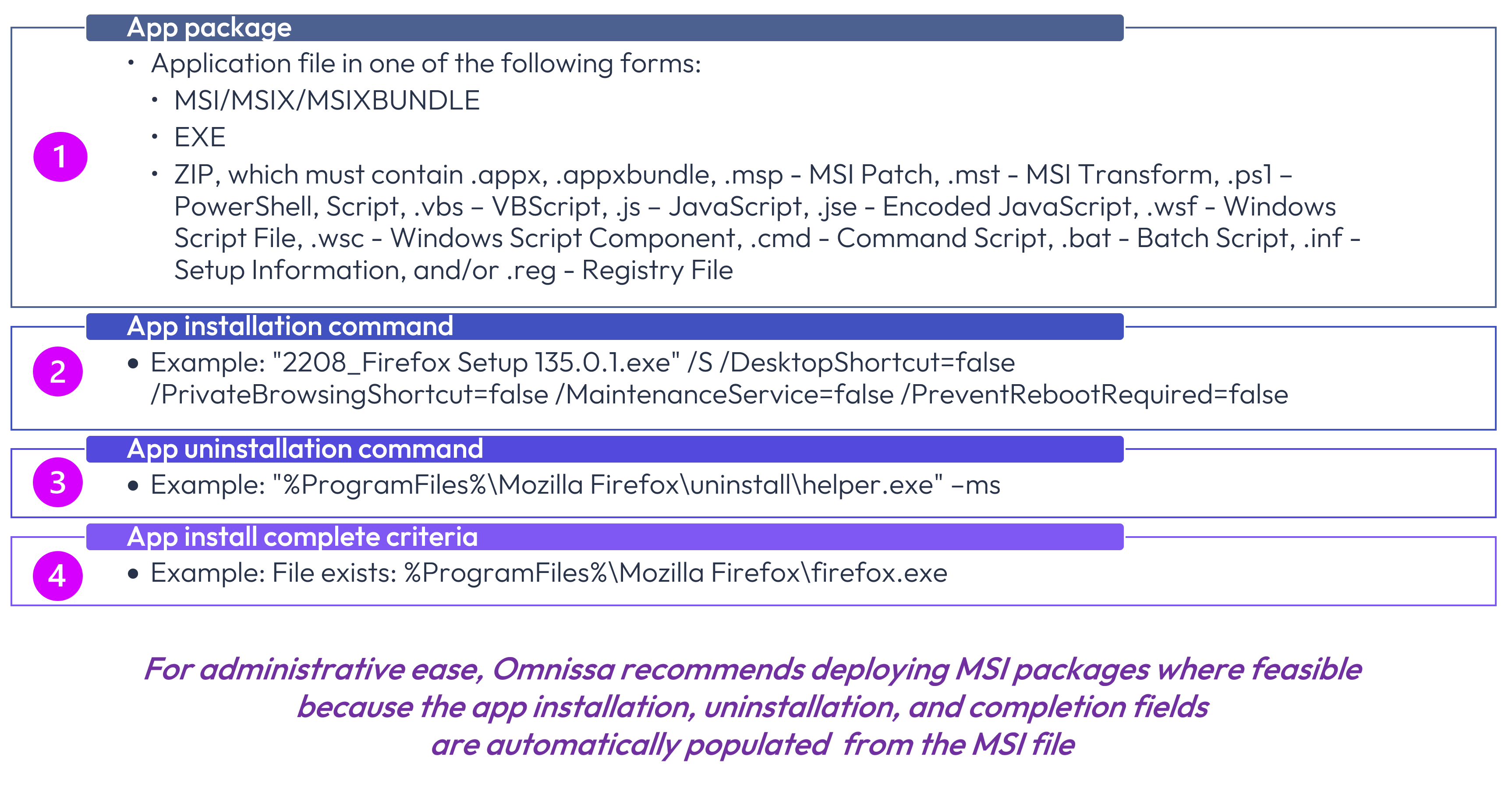

Figure 13: Minimum requirements for creating new Application File

MSI applications automatically populate the App Install Command, App Uninstall Process, and When to Call Application Complete (indicates deployment success or failure) fields, whereas EXE and ZIP files do not.  In addition, an application icon is strongly recommended to maximize familiarity but not required.

Aside from the requirements discussed above, administrators have many options when configuring application files.  For an explanation of every option presented within each tab of the application file, please see Omnissa Docs. Key options and recommendations are discussed below as part of the creation of a new Application File, which is based on the following steps:

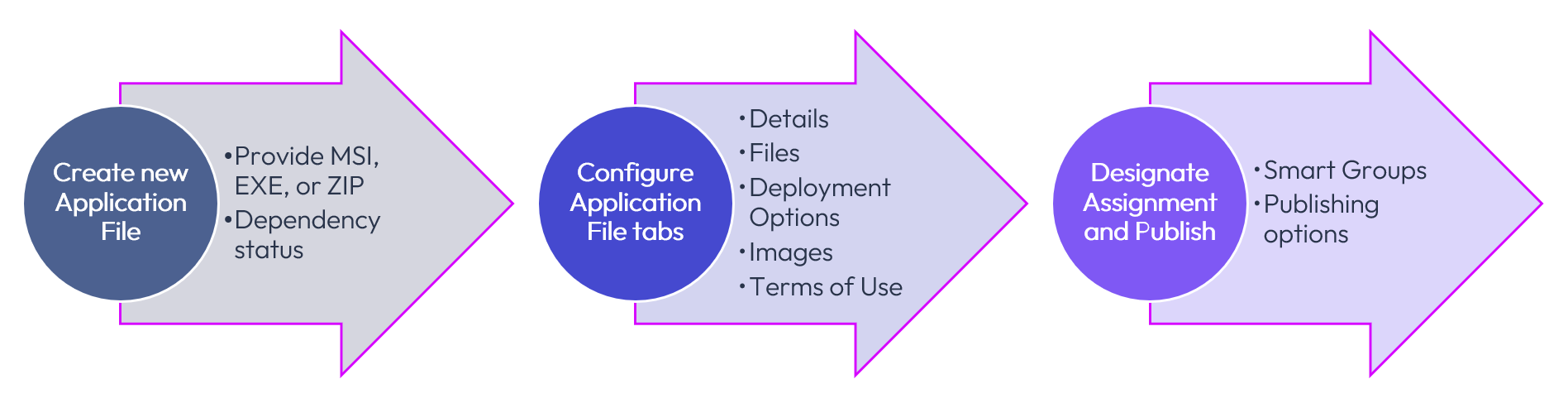

A purple arrow with white text

AI-generated content may be incorrect.

Figure 14: Process for creating a new application file

Creating a new Application File

When creating a new Application File, several key considerations include:

  • File type based on whether the package is based on MSI/MSIX, EXE, or ZIP
  • Dependency app implying whether other applications may have a dependency on this app

While a Dependency app may be designated as part of an Application File, a better solution is to use Freestyle Orchestrator to create an application installation workflow.  Not only does Freestyle Orchestrator provide more flexibility, but maintenance is also greatly simplified.

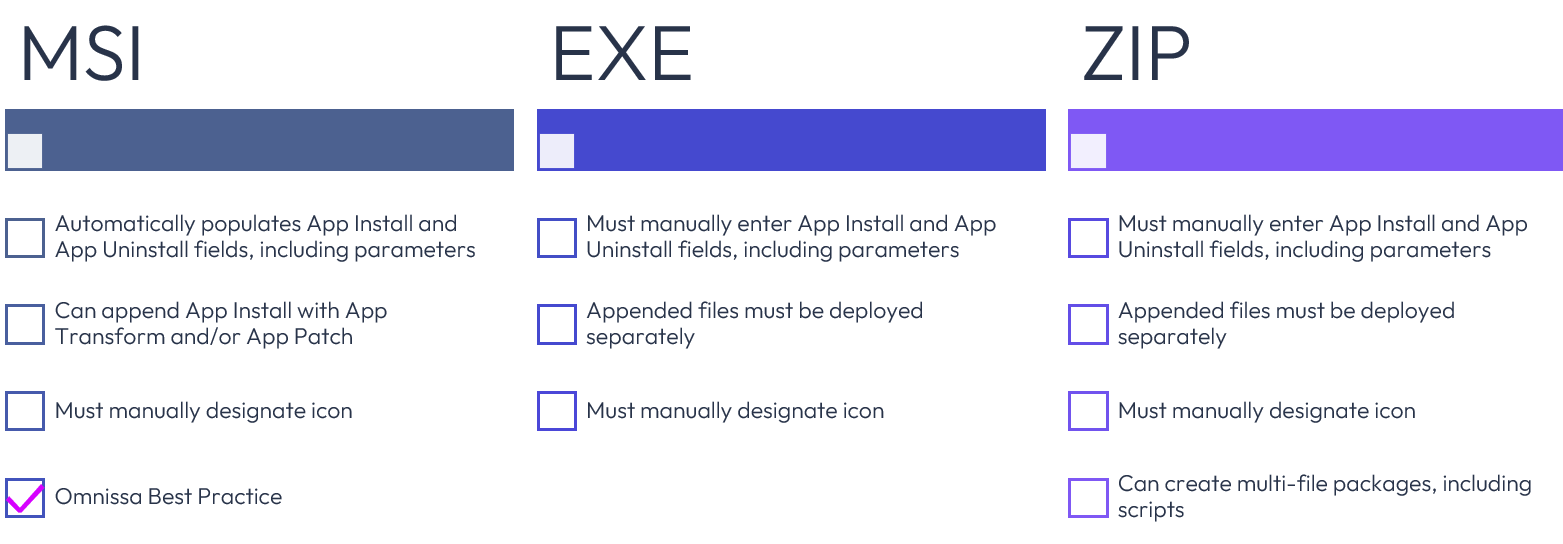

File type

The file type should be considered initially because it cannot be changed later. For example, if an application is initially deployed via an EXE file and an MSI later becomes available, the newer version cannot be deployed with the “Add Version” wizard. To address this use case, customers can utilize Freestyle Orchestrator to uninstall the old version and install the new version as separate applications.

MSI packages are the simplest deployment option and should be used where feasible. EXE applications are the next preference. ZIP packages are supported, however due to the nature of ZIP packages and limited visibility to SFDAgent to the processes being executed within the package, deployment of ZIP packages should be a last resort.

When EXE and ZIP files are selected, it is necessary to enter commands.

MSI files

Most applications are available as MSI packages which are generally easier to deploy. Where an MSI is used, standard MSI command line options are available to add or adjust the default command line. The default Install Command, Uninstall Command and When to Call Install Complete criteria (Detection Criteria) can be changed if required.

Workspace ONE also supports MST files as a method of changing the MSI install parameters.

Note: MSIX is similar to MSI and is a supported application package format.  MSI is much more common and thus will be the focus within this document.

EXE files

EXE files may use a wide variety of parameters, so understanding the options available for each specific application from the vendor is necessary.  Deployment of EXE- and ZIP-based packages is more complex, requires additional manual configuration, and may require significant testing.

Correctly designating the Install Command, Uninstall Command and Detection Criteria for EXE application installers is important for successful deployment. Testing these commands locally on a small number of test devices allowing configuration modification and redeployment without impact to users.  This is strongly recommended before wide-scale deployment via Workspace ONE,

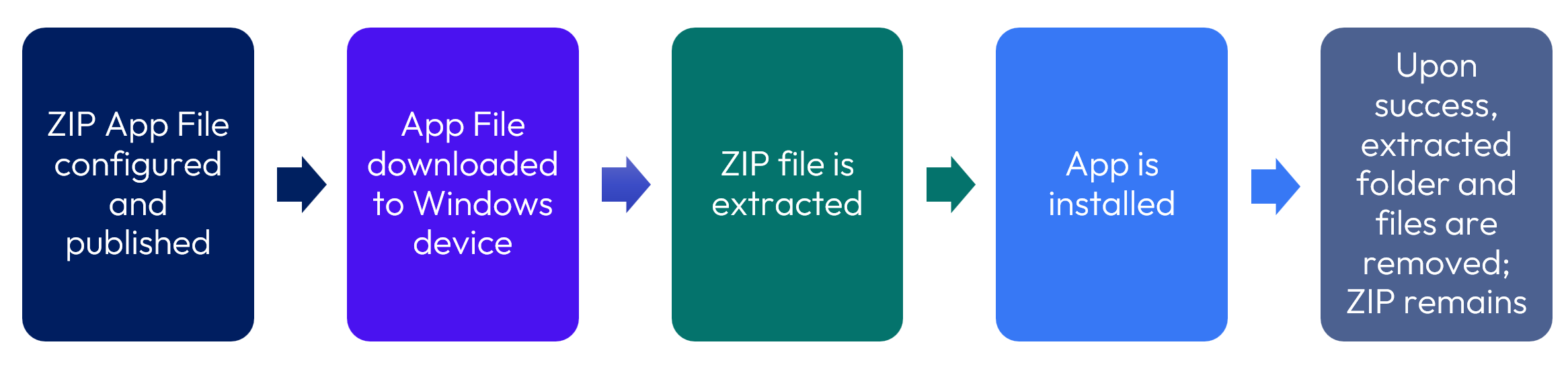

ZIP files

ZIP files can be used where an MSI or EXE is not applicable. For example, if you need to deploy a script or multiple files, ZIP file can be used for this purpose.  Deploying ZIP files is more complex and prone to error, so using this type of file for software deployment should be a last resort. Alternatively, Freestyle Orchestrator can provide some of the capabilities of a ZIP file deployment.

When creating a ZIP file, the bundle of files must contain an MSI or EXE file, even if it has zero content.  Without this, the system cannot ascertain the platform and thus the upload will fail.  To create a dummy EXE file to include in your ZIP file, from a command prompt, simply type:

echo . > dummy.exe

Note: ZIP packages that are greater than 4GB in size must be created with 7-Zip.  The native Windows compressor is not suitable. In addition, the ZIP file should not be encrypted, as this prevents SFDAgent from unencrypting and using the contents.

 Dependency app

Dependency apps such as utilities or runtimes are used by other applications to provide additional functionality.  Dependency apps can be selected as requirements for other apps during configuration.  This causes Workspace ONE to check that the dependency apps are pre-installed on the device.  Dependency apps cannot be accessed standalone.  Some examples of dependency apps include:

  • .NET Framework
  • Microsoft C++ Redistributable

Note: Although dependency apps can be designated as part of an Application File, Omnissa recommends using Freestyle Orchestrator to manage complex application install sequencing and dependency application installs.

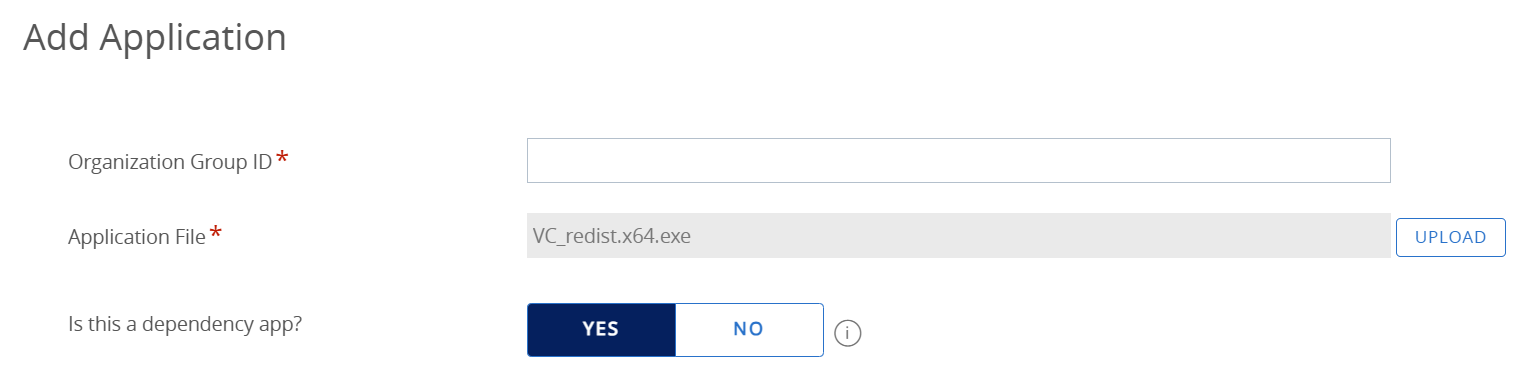

When an application is designated as a dependency app, fewer options are subsequently presented within the Application File configuration.

A screenshot of a computer

AI-generated content may be incorrect.

Figure 15: Dependency apps are invoked by other applications, e.g., Microsoft Visual C++ redistributable

Now that the application media has been uploaded and dependency has been designated, the next step is to configure the Application File.  Because dependency apps present fewer options, the remainder of this section will focus on standard apps that have not designated as dependency apps.

Configure Application File

Once the application package has been uploaded, five tabs are presented within the Application File configuration.

Figure 16: Application File configuration tabs

Key items within each of these tabs will be discussed below in sequential order.  All fields marked with an asterisk are required.  For a review of all settings, please see Omnissa Docs

Details pane

The Details pane contains much of the metadata for an application. Metadata such as Name, App Version, Supported Processor Architecture and Supported Models will be discussed below as they are required for deployment.

A screenshot of a computer

AI-generated content may be incorrect.

Figure 17: Application file Details pane default settings for Notepad++ EXE

 Name and application version

The name and app version for MSI files will populate automatically; however, EXE and ZIP files default to the file name and version 1.0.0.0, as shown above.  Omnissa recommends modifying the Name field as this will become the Display Name of the application in the Workspace ONE console and Intelligent Hub catalog. Additionally, the App Version field should be changed to the actual version of the application for EXE and ZIP installers.

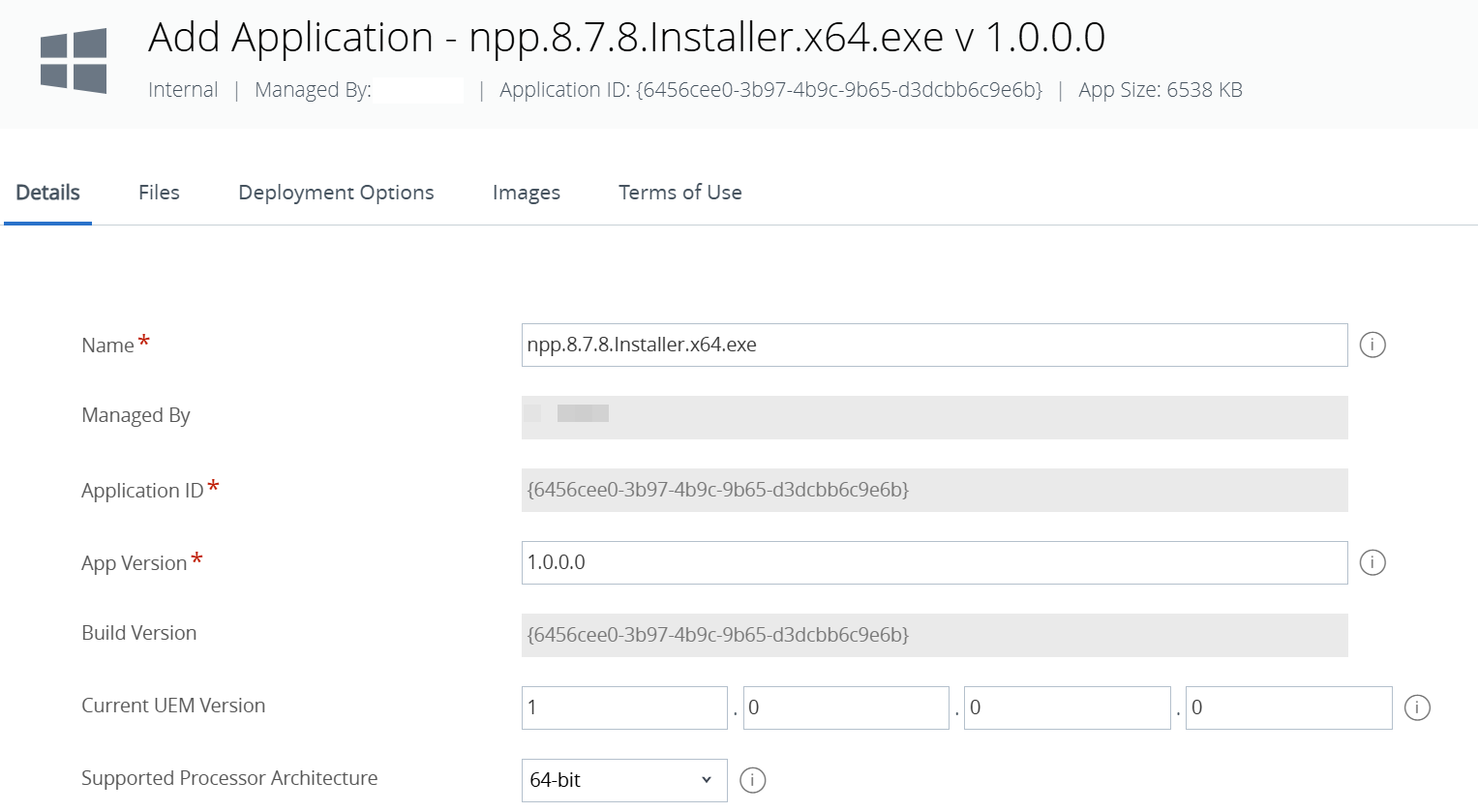

Application ID

The Application ID is a 32-character GUID that uniquely identifies the application.  When an MSI has been designated, the Application ID is automatically extracted from the installation file MSIPRODUCTCODE parameter.

When an EXE or ZIP Application File is added, the Application ID is generated by Workspace ONE. The first version of the application added also uses the generated Application ID as the Build Version GUID. Subsequent versions of the application added via the Add Version wizard, keep the same Build Version GUID and receive a new Application ID GUID, thereby linking the versions.

The Application ID should be noted because it may need to be incorporated as part of the app uninstall command.

Figure 18: The Application ID is a unique 32-character GUID

32-Bit vs. 64-Bit applications

Many applications are offered in both 32-bit and 64-bit versions.  Two key differences are:

  • 64-bit applications can access over 4GB of RAM and are less likely to crash
  • 32-bit apps install into C:\Program Files (x86) whereas 64-bit apps install into C:\Program Files

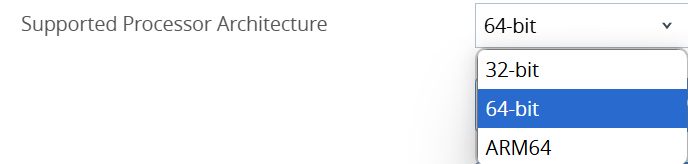

As of September 30, 2024, support for 32-bit Windows 10 ceased, so it is likely that all Windows endpoints within your environment are based on Windows 10/11 64-bit architecture.  Unless your environment has ARM64 devices, standard 64-bit applications should be deployed where feasible to provide a better experience for your users.

A close-up of a white background

AI-generated content may be incorrect.

Figure 19: 64-bit applications are or will likely be selected

Note that ARM64 will only function on ARM64 devices, whereas 32-bit and 64-bit applications will work interchangeably on 64-bit Windows devices.

Further, the Smart Group designation(s) must align with these selections.

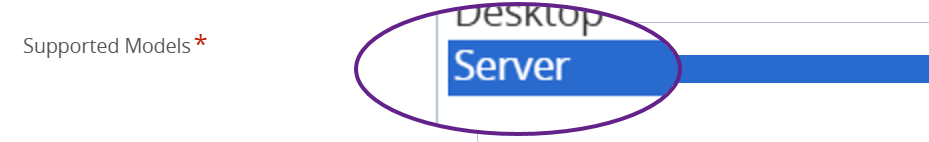

Supported models

By default, Desktop is selected as the supported model for Windows apps.  If deploying to Windows Server, select Windows Server or select both Windows Desktop and Windows Server platforms.

Files pane

While the App Uninstall process is the only required field on this screen, app dependencies as well as transforms and patches may optionally be configured.  In order for a dependency app to appear in the dropdown for selection, it must first be selected as a Dependency App when creating a new Application File.

A screenshot of a computer

Description automatically generated

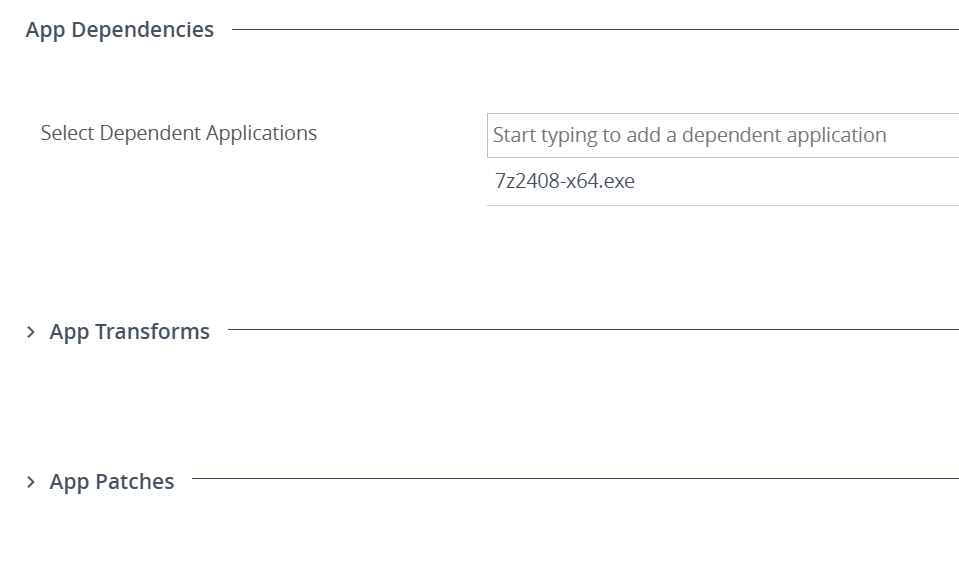

Figure 20: Options to designate app dependencies, app transforms, and app patches

App transforms (MST files)

App transforms (MST) files contain a collection of settings applied during application installation.  Because each transform can be associated with different assignment groups, multiple transforms can be uploaded into the same MSI to provide distinct functionality.  For example, one or more language packs may be added for multi-lingual support, with an MST assigned to the respective assignment group.

Note that if the transform file selection is changed after the app is installed, the MST is not applied to member devices. Only the newly added devices which do not have the app installed receive the updated transform.

App patches (MSP files)

App patches (MSP) files append to the MSI application installation; they are self-contained packages that contain all the information required to update the application.  App patches can be:

  • Cumulative.  Patch file is inclusive of all the changes from previous patches.
  • Additive. Patch file is not inclusive of all the changes from previous patches and must be applied in addition to last patch files.

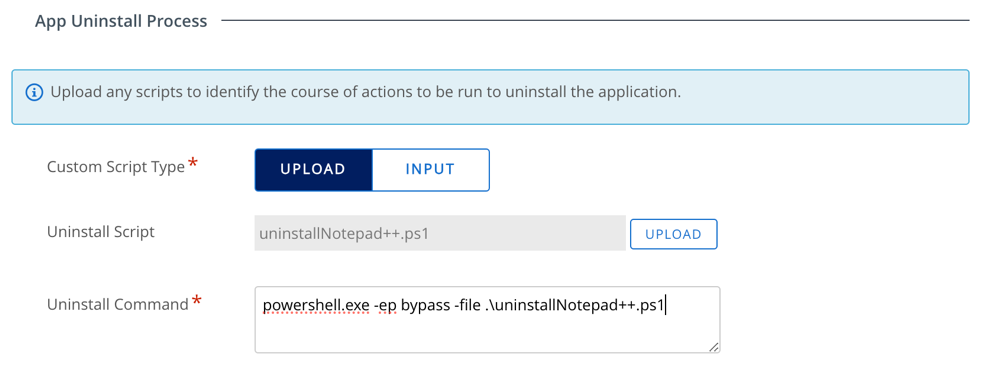

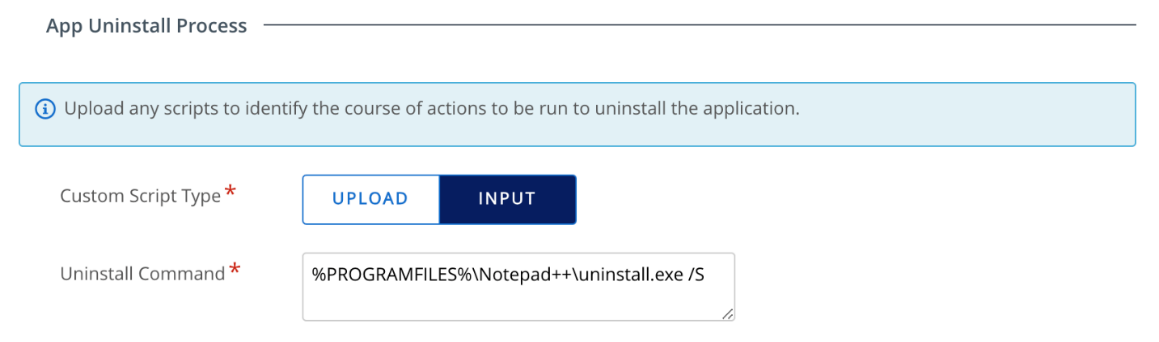

App uninstall process

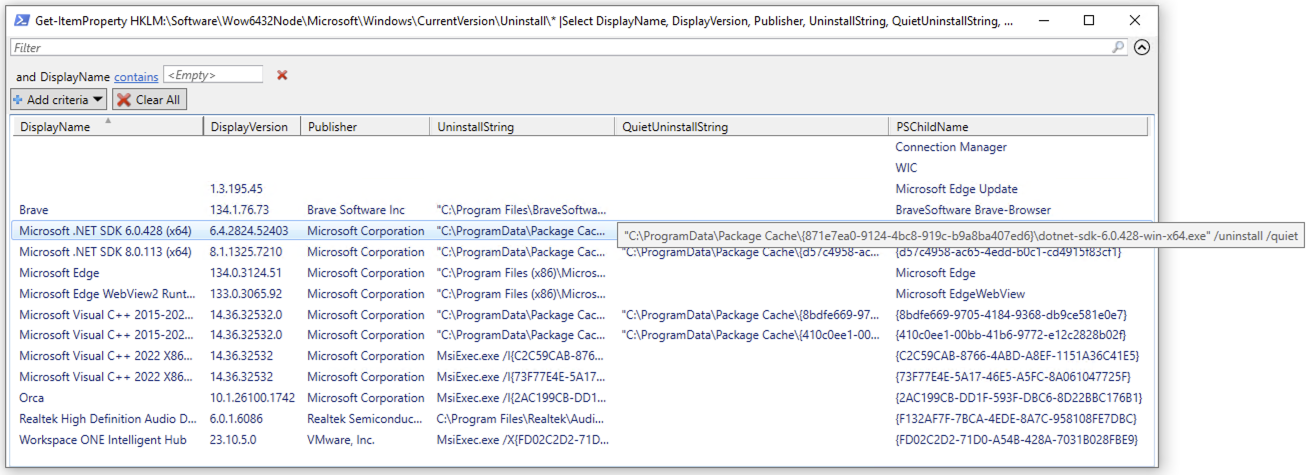

The application Uninstall Command is automatically populated for MSI files when the default Use Custom Script for MSI = NO; however, it can be manually adjusted if required by selecting YES.

MSI files by default utilize the standard uninstall command based upon the MSIPRODUCTCODE. This code should be unique for each version of each application; however, this code must match what is actually installed on the device. Workspace ONE reads the MSIPRODUCTCODE and stores it as Application ID in the metadata of the uploaded MSI application installer, and uses the default MSIEXEC uninstall command line, for example:

msiexec.exe /X {23170F69-40C1-2702-0000-000004000000} /qn

By selecting Use Custom Script for MSI = YES, you can also specify a command line or provide a script to initiate the uninstall process. The uninstall command line can be modified to include additional MSIEXEC parameters such as /norestart. Simply select Use Custom Script for MSI = YES, Custom Script Type = INPUT and provide an Uninstall Command:A screenshot of a computer

Description automatically generated

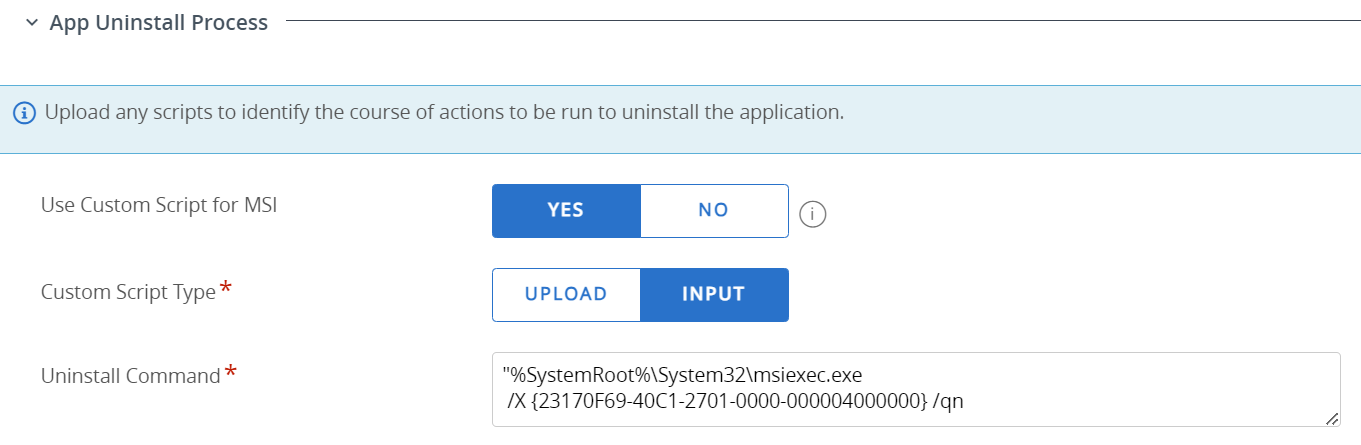

Figure 21: Sample MSI custom uninstall command, which includes the Application ID from the details tab, as well as parameters

EXE and ZIP installers require Administrators to provide the Uninstall Command as they are not included in the metadata of the installer files, like with MSI files. For example, the Uninstall Command for Notepad++ is shown below using the default selection of Custom Script Type = INPUT, and then designating the Uninstall Command string.

A screenshot of a computer error

AI-generated content may be incorrect.

Figure 22: App uninstall process configuration

In many cases, the syntax “C:\Program Files\{app name}\uninstall.exe” /S is suitable for EXE files. Long file names should also be encased within double or single quotation marks, and environment variables such as %PROGRAMFILES% are valid to use. Additionally, native OS command lines can be used such as:

  • cmd.exe /c del /F /S /Q "C:\wsone\BGInfo"
  • Remove-Item -LiteralPath "C:\wsone\BGInfo" -Force -Recurse

Uninstall Commands are stored in the registry and can be obtained by following this general process:

  1. Install the application on a test device
  2. Open a Powershell window and run the following commands:

    Get-ItemProperty HKCU:\Software\Microsoft\Windows\CurrentVersion\Uninstall\* |Select DisplayName, DisplayVersion, Publisher, UninstallString, QuietUninstallString, PSChildName | ogv

    Get-ItemProperty HKCU:\Software\Wow6432Node\Microsoft\Windows\CurrentVersion\Uninstall\* |Select DisplayName, DisplayVersion, Publisher, UninstallString, QuietUninstallString, PSChildName | ogv

    Get-ItemProperty HKLM:\Software\Microsoft\Windows\CurrentVersion\Uninstall\* |Select DisplayName, DisplayVersion, Publisher, UninstallString, QuietUninstallString, PSChildName | ogv

    Get-ItemProperty HKLM:\Software\wow6432node\Microsoft\Windows\CurrentVersion\Uninstall\* |Select DisplayName, DisplayVersion, Publisher, UninstallString, QuietUninstallString, PSChildName | ogv

  3. Alternatively, look at the uninstall key in the registry:
    HKCU\Software\Microsoft\Windows\CurrentVersion\Uninstall
    HKCU\Software\WOW6432Node\Microsoft\Windows\CurrentVersion\Uninstall
    HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\{GUID}\UninstallString
    HKLM\SOFTWARE\WOW6432Node\Microsoft\Windows\CurrentVersion\Uninstall\{GUID}\QuietUninstallString


Simply find your application and the corresponding Uninstall String in the UninstallString or QuietUninstallString column. Note that some MSI-based applications prefix their UninstallString with MsiExec.exe /I{GUID} rather than MsiExec.exe /X {GUID}. Simply adjust the Uninstall Command to utilize MsiExec.exe /X.

Figure 23: The PSChildName column shows the GUID of the application

If UPLOAD is selected, a script must be uploaded and designated as the uninstall command. Also designate the script runtime in the Uninstall Command and the appropriate parameter to specify the script file.  For example, if using a Powershell script to uninstall Notepad++:

A screenshot of a computer

AI-generated content may be incorrect.

Figure 24: App uninstall Process configuration with uploaded custom script

Deployment options pane

The Deployment Options pane contains the controls for the deployment, including the install pre-requisites (When to Install), install behavior (How to Install) and how to determine that the install is complete (When to call Install Complete).

When to install

Within the initial When to Install section, keeping the resource requirements at 0 is the most common approach, meaning the Software Deployment agent will not validate if the device meets the Disk Space Required, Device Power Required, and RAM Required levels. However, if resources are restricted on target devices or the application being deployed is a significant size, the Disk Space Required, Device Power Required, and RAM Required fields should be utilized.

A screenshot of a computer

AI-generated content may be incorrect.

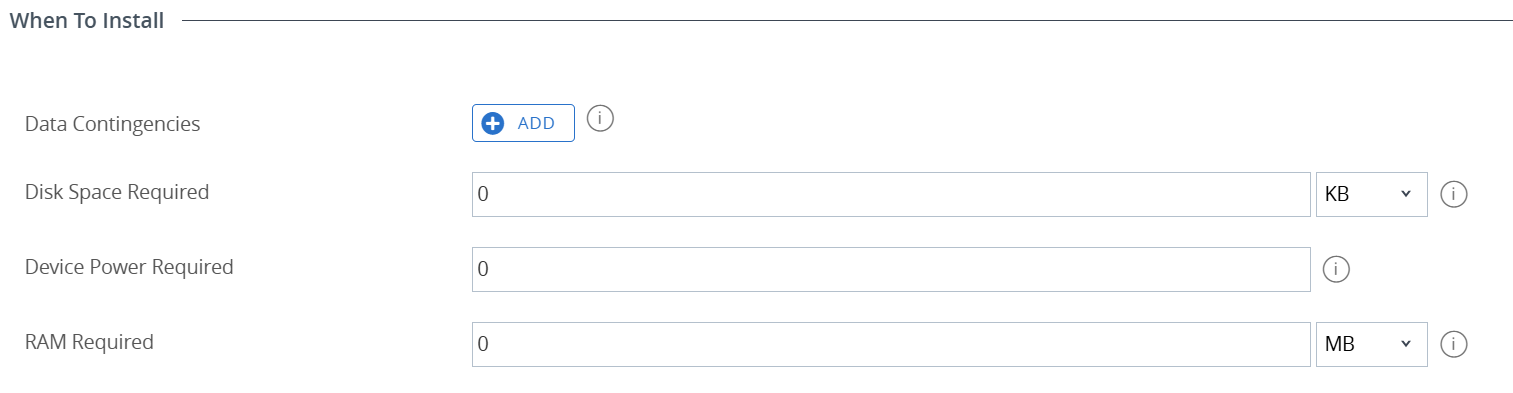

Figure 25: When to install resource checks

These values will be evaluated prior to application installation and reported in the SFDAgent deployment log as part of the requirements evaluation process.

How to install

The How to install section contains several required and optional fields that greatly impact application installation behavior.

To avoid confusion regarding the admin privileges setting, be aware that the Software Deployment Agent (SFDAgent) runs as a System service and will install applications using System level privileges in System Context. Because applications are deployed administratively, users do not require local admin permissions.  This behavior is not impacted by the Admin Privileges setting.

A screenshot of a computer

AI-generated content may be incorrect.

Figure 26: Permissions for app installation

In particular, the install context and admin privileges options are often misunderstood and will be explained in detail.

A screenshot of a computer

AI-generated content may be incorrect.

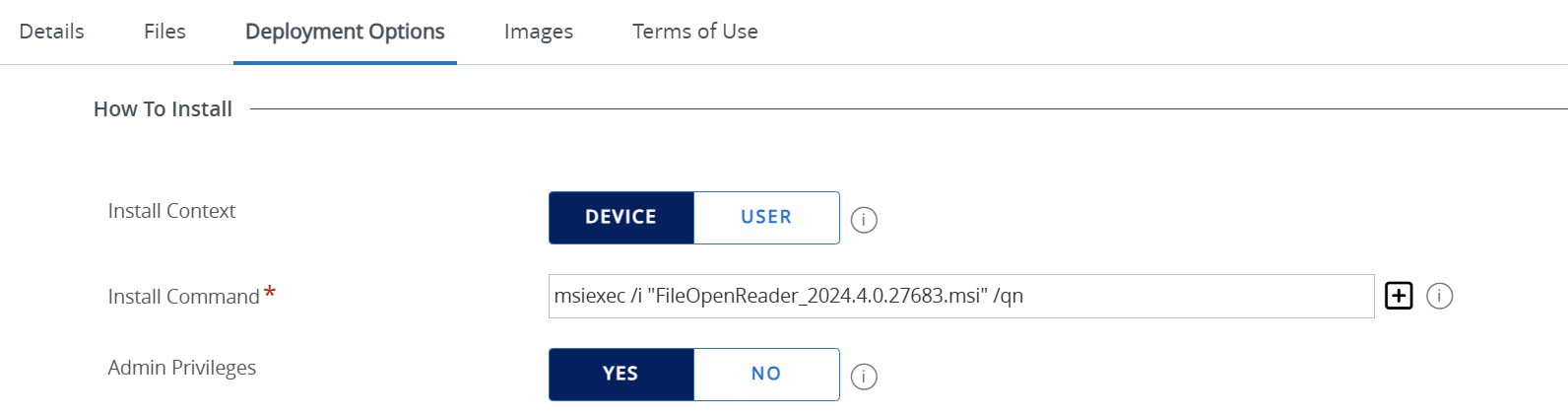

Figure 27: Deployment options > how to install

Install context and admin privileges options

Most applications install into HKLM registry keys and areas in the file system that are subsequently available to all users of the device; this is called Device Context. When the application installs within HKCU and the user profile, this is called User Context. Only a small percentage of applications install into the User Context.

It is important to note that the application installer governs where an application installs, not Workspace ONE. The Install Context and Admin Privileges settings merely provides permissions for SFDAgent to access the appropriate file system and registry hives.

A close-up of a blue and purple diamond

AI-generated content may be incorrect.

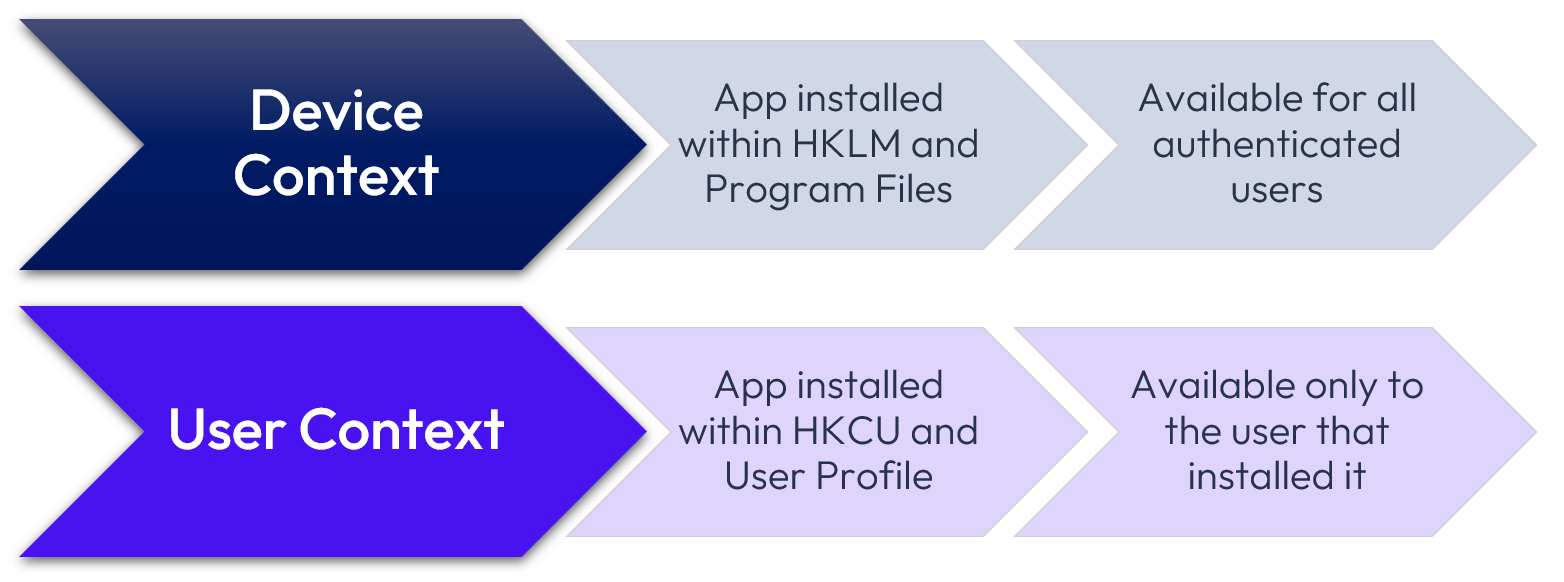

Figure 28: Device context vs. user context, especially important for multiuser

The SFDAgent, provides the ability to leverage the inherent permissions of the SFDAgent running with SYSTEM privileges to:

  • Install applications into device context
  • Impersonate a user run an installation within user context
  • Provide temporary privilege elevation to install components in both contexts

This is particularly useful for manual install scenarios and application installs that require permissions to both the device and user context, where the user is a standard user and where UAC is enabled on the device.

It is important to configure the application for the correct install context based on the application’s requirements.  As a best practice, Omnissa recommends selecting device context, especially when the inherent application installation behavior is unknown.

When install context = device is selected, processes running in SYSTEM context, such as an application installation, will not be visible to the logged on user. Because the installation process is not visible, it is vitally important to ensure the installation process is completely silent and requires no user interaction. This is the required configuration for most MSI, EXE, and ZIP applications.

For those applications that install into the User Profile, select install context = user. Because the SFDAgent is running as a service in SYSTEM Context, when install context = user is selected, SFDAgent will create a session token in the logged on users’ session to begin the application installation, which allows the installation process to install application files and registry settings within the user profile and HKCU registry hive.

The application process still has SYSTEM context privileges, allowing the application installation to also write files and registry settings outside the user profile. However, this process may require an administrator access token and popup a user account control (UAC) prompt if the user is a standard user and does not have local administrative permissions.

If admin privileges = yes in conjunction with install context = user, SFDAgent creates an administrator access token that will allow the SFDAgent to provide consent to the User Account Controls (UAC) prompt, elevating the session permissions so that the install process has temporary admin rights. This is required when the currently logged on user is a standard user or when UAC prompts are enabled as part of the local security policy for the device.

If the UAC prompt is required to be displayed based on a company policy or other reasons, then set install context = user and admin privileges = no. If the user is a Standard User and they cannot provide credentials for a user within the local Administrators group, the install process will fail. Additional information on UAC is provided in the How User Account Control works article.

Install context = user also allows the application installation process to be visible to the user. For example, the installation process requires user interaction when:

  • Displaying a custom prompt prior to starting the installation within a Powershell script
  • A manual installation wherein the application installation is not automated and requires user input

Where you have a requirement to deploy User Context applications, Omnissa recommends deploying applications with temporarily elevated admin privileges to ensure that installation occurs without permissions issues or UAC prompts.

The following table outlines the expected behavior for each combination of Install Context and Admin Privileges settings and is an extension to the table provided in the Win32 Application Installation Behavior documentation. It is important to note that the application installer governs where an application installs. The Install Context and Admin Privileges settings provide permissions for SFDAgent to access the appropriate file system and registry hives.

Install ContextAdmin PrivilegesUser PrivilegesApplication Installs To *BehaviorNotes
DeviceYes or NoAdministrator or Standard UserHKLM and Program Files Installation succeeds silently (e.g., no UAC prompts)Requires silent installation parameter
DeviceYes or NoAdministrator or Standard UserHKCU and User Profile*Installation fails silentlyDevice Context cannot access HKCU and user profile
UserYes or NoAdministrator UserProgram Files, User Profile, HKLM and HKCU*Installation visible with user action Administrator user already has administrator access token
UserYesStandard UserProgram Files, User Profile, HKLM and HKCU*Installation visible with user action Installation completes without any prompts
UserNoStandard UserHKLM and Program Files*Installation failsUser Context cannot access HKLM and Program Files
UserNoStandard UserHKCU and User ProfileInstallation succeedsInstallation proceeds if the application does not require an administrator access token

Table 1: Install context and admin privileges

* Note: Application Installs to columns describes the requirements of the application and not the configuration within Workspace ONE UEM. In some cases, the application installs files and registry keys to locations that differ from the expected behavior.

Multiuser considerations

Multiuser Windows devices provide many benefits, including the management and cost savings associated with sharing devices amongst users.  Multiuser capabilities within Workspace ONE are affected by the Install Context selection and targeting of those applications.

Some key considerations as to the Install Context and where applications are assigned:

  • Applications installed to Device Context can be installed and uninstalled administratively, independent of any user session
  • Applications installed to User Context can be installed and uninstalled only when the assigned user is logged onto the device
  • Applications assigned to the Device are available to all users on that device
  • Applications assigned to the User are only available to those specific users and accessible upon logon. This requires the application to support User Context (HKCU) installation.
  • Device Context applications not assigned to the logged in user will be uninstalled.

Note: User context applications that only install into the user profile cannot be uninstalled by multiuser. Because the second user does not have the application assigned, the logon process will experience increased CPU, memory and disk utilization, which may negatively affect the logon user experience.

Multiuser scenario

When user A logs in, the device has Office assigned and user A has Notepad++ and 7-Zip assigned.  In this case, Office is already installed.  Notepad++ and 7-Zip are not available and will install on logon as they are assigned to userA.

UserA then signs out and Office, Notepad++, and 7-Zip applications remain on the device.

UserB logs in and has an assignment for Notepad ++ and Postman. Notepad++ is already installed and is available for use, while Postman will install in the user context, as it is a true User Context application. 7-Zip is a device context application installing to %PROGRAMFILES% and therefore it will be uninstalled.

UserB signs out, and Office, Notepad++, and Postman applications remain on the device.

UserA logs in again, and even though they do not have an assignment for Postman, Postman is not uninstalled as Postman was installed into the user context (user profile) of userB and is not available for userA to use.  Additionally, 7-Zip is reinstalled as it was previously uninstalled and userA is assigned 7-Zip.

Figure 29: Multiuser example

Note that 7-Zip is uninstalled when userB logs in because it is not assigned and was installed in device context.  Postman cannot be uninstalled during UserA logon because it only exists in user B’s user context.

This scenario highlights the importance of ensuring that your application deployment strategy aligns with the application install context and your multiuser or shared device requirements.

Install command

MSI files

The install command for MSI-based applications is populated automatically. As with the uninstall command, the install command can also be modified if required. For example, the default install command of msiexec /I “AppName” /qn used for a MSI installer may automatically restart the device. To prevent this from occurring, simply edit the install command and add /norestart to the end.

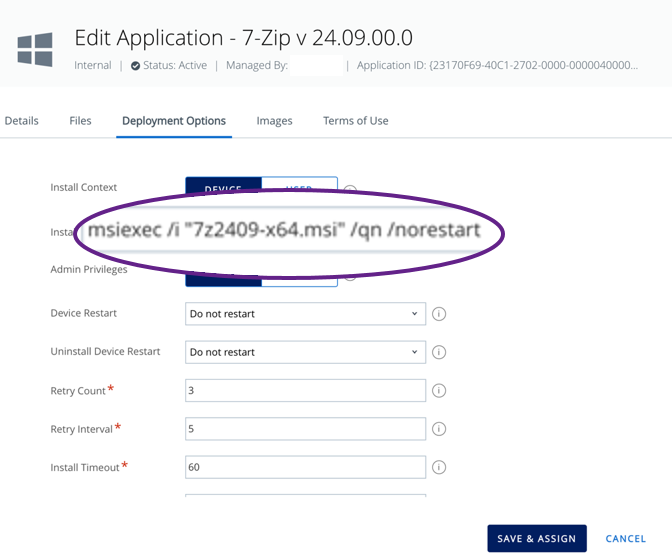

A screenshot of a application

AI-generated content may be incorrect.

Figure 30: Install command

EXE files

For EXE installers, Administrators are required to provide the install command as they are not included in the metadata of the installer file. The application vendor should provide documentation on the syntax or parameters required to install silently. However, if this documentation is not available, it may be possible to run the installer with either ?, -?, /?, /h or /help parameters and have the installer display a dialog box with all of the available installer commands.

Additionally, there are many third-party websites that provide installer parameters for many applications.

As with Uninstall Commands, long file names should be encased within double or single quotation marks, and environment variables such as %PROGRAMFILES% are valid to use.

ZIP packages

ZIP packages can contain files, scripts and even other ZIP files to serve as the source for the application installation. The SFDAgent will download a ZIP package to a subfolder within the C:\ProgramData\AirWatchMDM\AppDeploymentCache folder, unzip the contents and then execute the Install Command specified.

The install command could be any executable or script within the expanded ZIP package folder. For example, the ZIP package may contain an EXE installer and support files, and the install command could be setup.exe /s.

Additionally, native OS command lines can be used such as:

  • powershell.exe -ExecutionPolicy Bypass -File install.ps1
  • powershell.exe -Command "New-Item -ItemType Directory -Path C:\wsone; Copy-Item -Path .\HUBWTT.exe -Destination C:\wsone\HUBWTT.exe"
  • mkdir c:\wsone\BGInfo && copy /Y *.* c:\wsone\BGInfo && c:\wsone\BGInfo\Bginfo.exe c:\wsone\BGInfo\LabBGInfo.bgi /TIMER:00 /SILENT /NOLICPROMPT

Device retry count, retry interval, install timeout, and device restart

The values for Retry Count, Retry Interval, and Install Timeout options for Windows applications affect the length the system takes to report a failed installation process.  The default values are shown below and can be modified:

  • Retry count: 3 times
  • Retry interval: 5 minutes
  • Install timeout: 60 minutes

Although most customers accept these default settings, they can greatly impact the success or failure of application installation.  The default values for the above options work in the following timeframes for a single failed installation process:

60 minutes (one hour)

65 minutes (one hour and five min)

125 minutes (two hours and five min)

130 minutes (two hours and 10 min)

190 minutes (three hours and 10 min)

195 minutes (three hours 15 min)

Windows app fails to install and reaches an install timeout of 60 minutes.System retries the installation (retry count #1) at a retry interval of 5 minutes.Windows app fails to install and reaches an install timeout of 60 minutes.System retries the installation (retry count #2) at a retry interval of 5 minutes.Windows app fails to install and reaches install the timeout of 60 minutes.System retries the installation (retry count #3) at a retry interval of 5 minutes.

Table 2: Default device retry timeframes

After 3 hours and 15 minutes, the system reports a single application installation has failed. Then, the system installs the next application.

The above values should be configured to complement the application and desired timeout for a failed installation.

Fast installation example

A browser application installs on a device in four minutes. Consider setting these values for this application:

  • Retry count: 2 times
  • Retry interval: 5 minutes
  • Install timeout: 5 minutes

The system reports the failure of this application within 20 minutes. Then, it installs the next application.

Slow installation example

A large productivity application installs on a device in 30 minutes. Consider these values for these applications.

  • Retry count: 3 times
  • Retry interval: 5 minutes
  • Install timeout: 35 minutes

The system might report the failure of this application within 120 minutes. Then, it installs the next application.

Had these same setting been applied to a browser application that installs quickly, deployment time for subsequent applications would be very slow.

Considerations for device restart for your Windows applications

The values for device restart for Windows applications allow the user to defer the device reboot and associate a deadline time, up to which the user can defer the reboot. The values allow admins and end users to have more control over restarts to prevent a user from losing unsaved data or negatively affecting productivity.

Device restart helps you configure the following settings:

  • Prompt the user before the device restarts so that they can save their file and close applications.
  • Prompt the user when a device restart is required.
  • Allows the user to snooze the device and restart it as per their convenience.
  • Allows administrators to force the device to restart.
  • Allows administrators to set a deferral deadline after which the users cannot snooze the restart.

The Workspace ONE Intelligent Hub shows notifications regarding device reboots at various stages. The deferral notification allows the user to restart or snooze. Workspace ONE Intelligent Hub updates the reboot data for snooze or restart and shows that notification according to the time selected by the user.

The following table shows notifications that are displayed at various stages:

System AlertDescription
During the application installationNotifies the user to save the files and close the application.
After application installationDisplays the first alert and notifies the user about the system restart.
48 Hours before the restart deadlineDisplays the second alert and warns the user about the force restart.
15 minutes before the restart deadlineDisplays the third alert and warns the user about the force restart.
5 minutes before the restart deadlineClear system prompts that indicate the date and time of the planned force restart.

Table 3: Intelligent Hub device restart notification times and exit codes

Installer reboot exit code and installer success exit code are used for determining the success of the installation.  For MSI files, these codes are automatically populated as necessary.

EXE files do not automatically populate these fields.  Typically, the success exit code is blank or 0, and the failure exit code is 1. The most common exit codes are shown below, and you should modify exit codes as necessary.

Error actionCodeDescription
ERROR_SUCCESS0The action was completed successfully.
ERROR_SUCCESS_REBOOT_INITIATED1641The installer has initiated a restart. This message indicates a successful action.
ERROR_SUCCESS_REBOOT_REQUIRED3010A restart is required to complete the installation. This message indicates a successful action. This does not include installations where the Force Reboot action is run.

Table 4: Common exit codes

When to call install complete

Under the When to Call Install Complete section, successful installation of the application can be determined based on a DEFINING CRITERIA or USING CUSTOM SCRIPT.  DEFINING CRITERIA is sometimes referred to as detection criteria and if selected, one or more criteria must be designated.

A screenshot of a computer

Description automatically generated

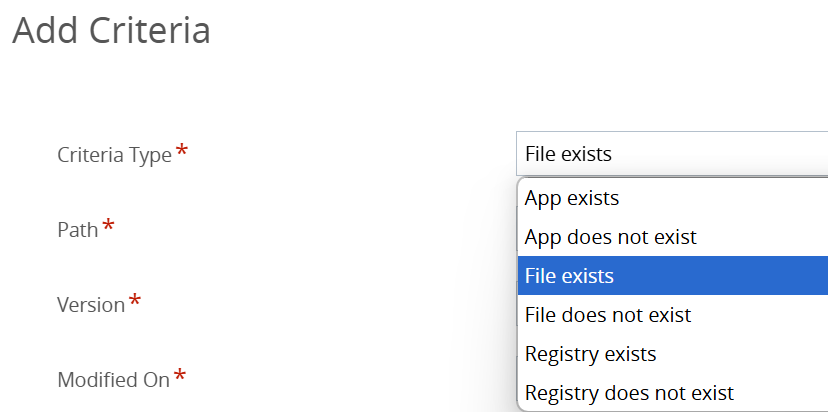

Figure 31: Criteria for determining whether the application has been successfully installed

Option types include app exists/does not exist, file exists/does not exist, and registry exists/does not exist, as well as additional criteria based on the specific selection.

When the SFDAgent detects the specified criteria, the installation will be deemed successful. However, if the detection criteria fails, SFDAgent uses the Uninstall Command to uninstall the application.

If the USING CUSTOM SCRIPT option is selected, the following script types are supported:

  • Javascript: *.js, *.jse
  • Powershell: *.ps1, *.ps1xml, *.psc1, *.psd1, *.psm1, *.pssc, *.cdxml
  • VBScript: *.vbs, *.vbe, *.wsf, *.wsc

Images pane

On this tab, ensure that the Icon subheading is populated for use with Windows devices.  Any icons populated under mobile or tablet images will not be accessed by Windows devices.

If the application icon file needs to be inserted or modified, click or drag a .jpg, .jpeg, .png, .gif, or .bmp file to Images > Icon.

Terms of use

If application terms of use are required, users must accept the agreement to access the application(s).  Terms of use can be configured via Groups & Settings > All Settings > System > Terms of Use.

A screenshot of a computer

Description automatically generated

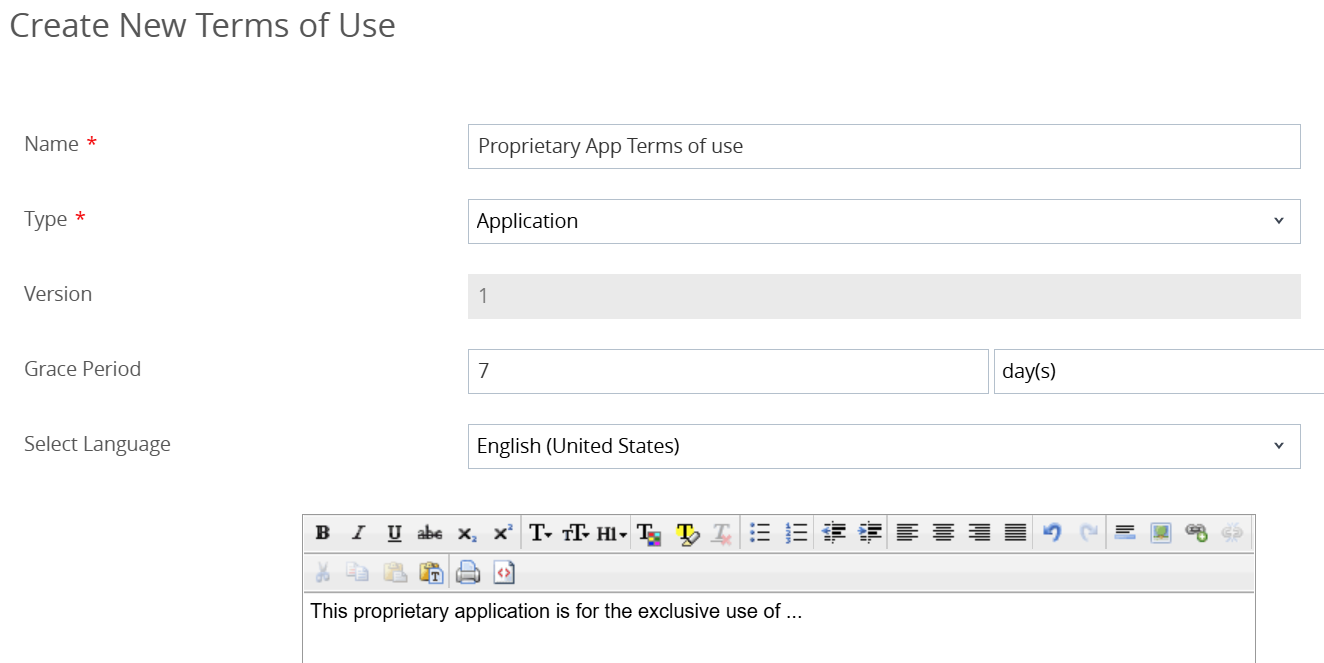

Figure 32: Application terms of use

After creating a terms of use entry, enforce it for the application by selecting the terms of ue tab and designating it there.  Once saved, users will be required to accept those terms of use prior to accessing the application.  If Application terms of use are invoked after the application has been installed, the user must accept on next use.  By default, a corresponding email is also sent.

A screenshot of a computer

Description automatically generated

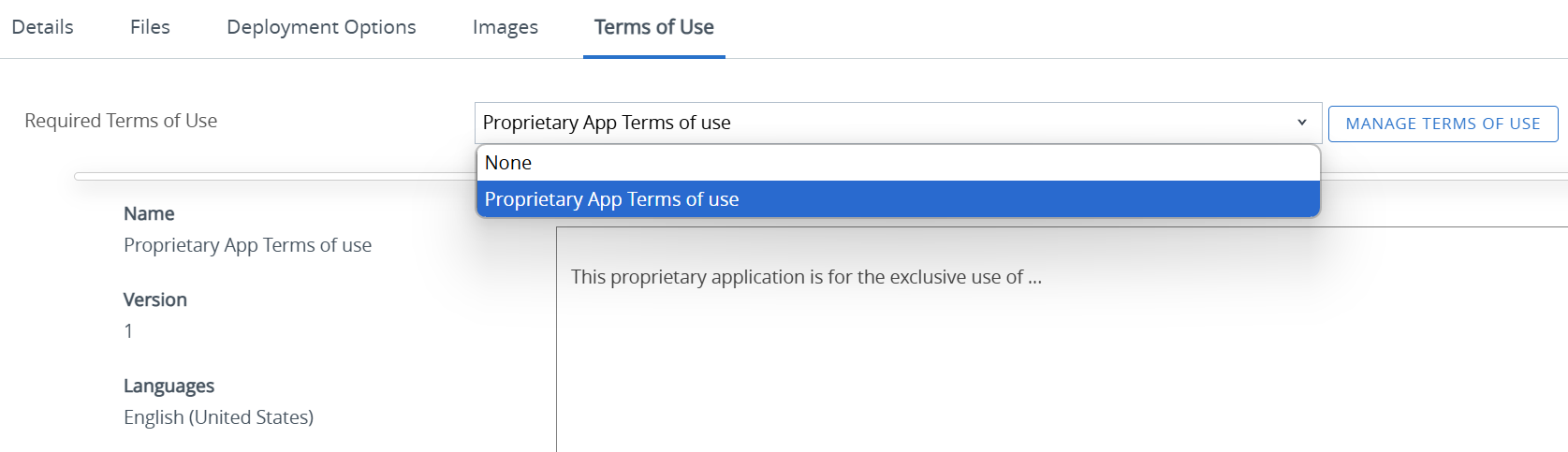

Figure 33: Applying terms of use to application

Deleting or removing an application

Carefully consider whether an application should be removed in its entirety, removed from a subset of devices, or rolled back. Workspace ONE provides mechanisms to deactivate, retire and delete applications from the console and devices. Each provides a different behavior.

Deactivating applications

Deactivating an application results in the application being uninstalled from assigned devices and marked as Inactive in the Workspace ONE console, thereby removing the ability to assign the application to other devices. Any previous versions of the same application will be marked as Inactive also.

To deactivate an application, from within the application Summary page select more actions > deactivate. For Modern SaaS environments, deactivate is now a button within the application summary page.

A white box with black text

Description automatically generated

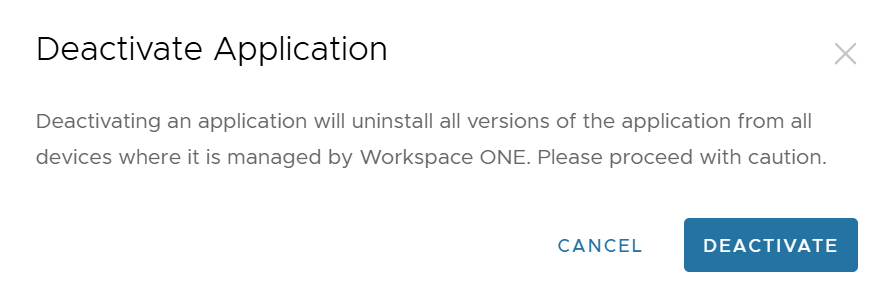

Figure 34: Deactivating an application causes it to be deleted in its entirety

Re-activate applications

To re-activate an application from the inactive state:

  1. Change the status filter within the resources > apps > native > internal > list view to inactive
  2. Select the version you want to reactivate by clicking on the name of the application to enter the application summary page
  3. Select more > activate. This will activate the selected version of the application and make it visible within the resources > apps > native > internal > list view and allow assignments.
    Note: Previous versions of the same application will be marked as retired. As with inactive state, applications can be unretired.

Removing an application from a subset of devices

To keep the application intact but remove it just from a subset of devices, simply modify the application assignment Smart Group(s) or create exclusions.

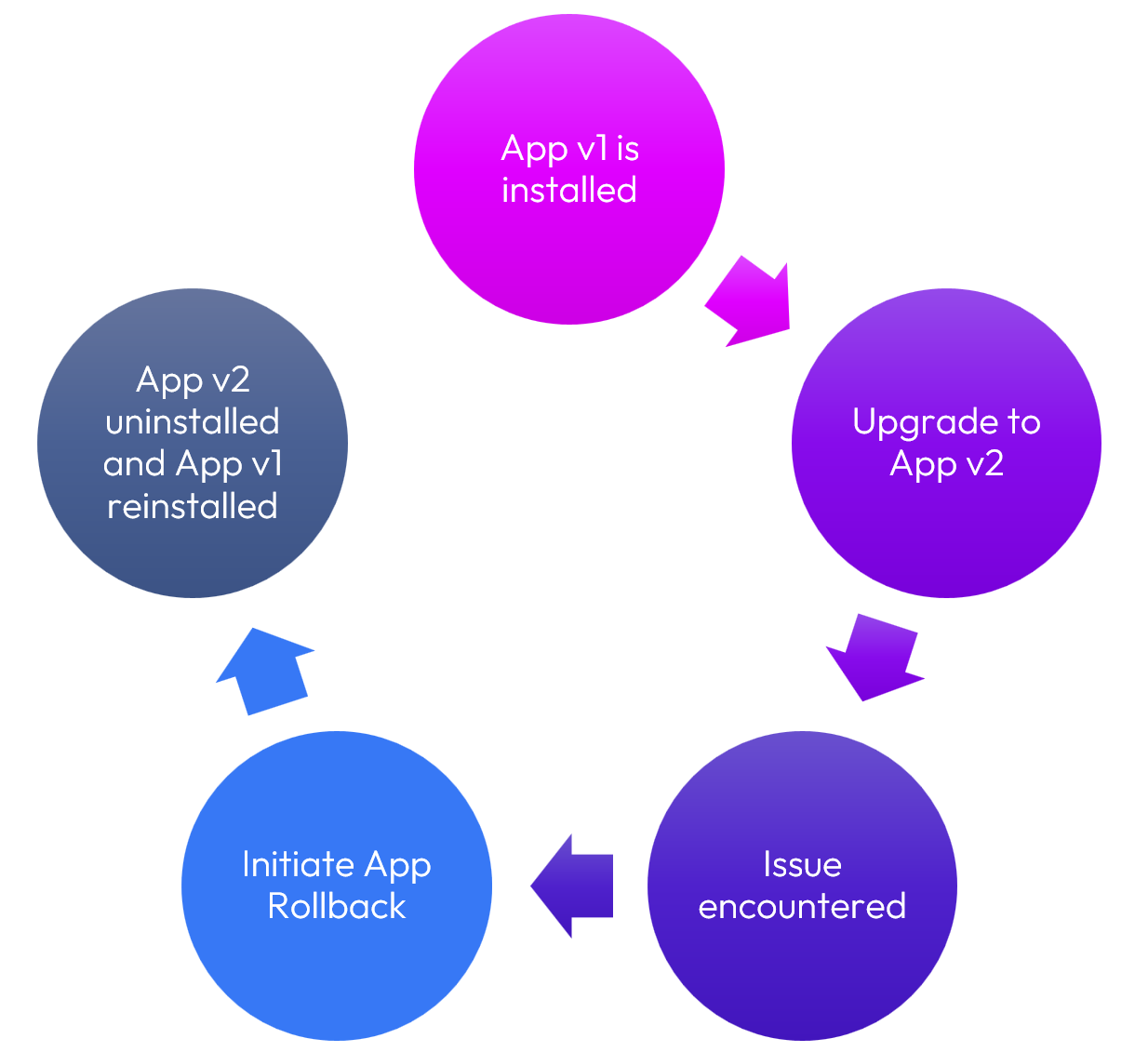

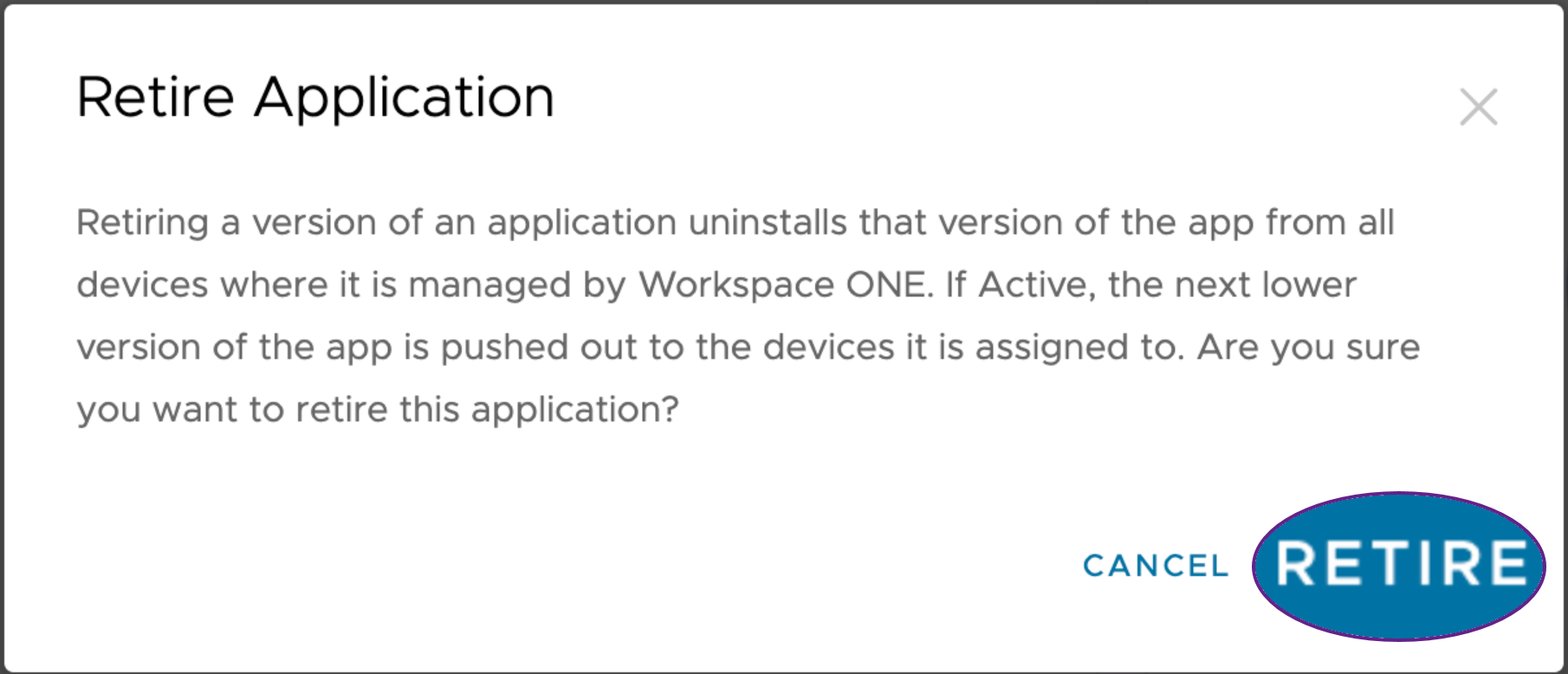

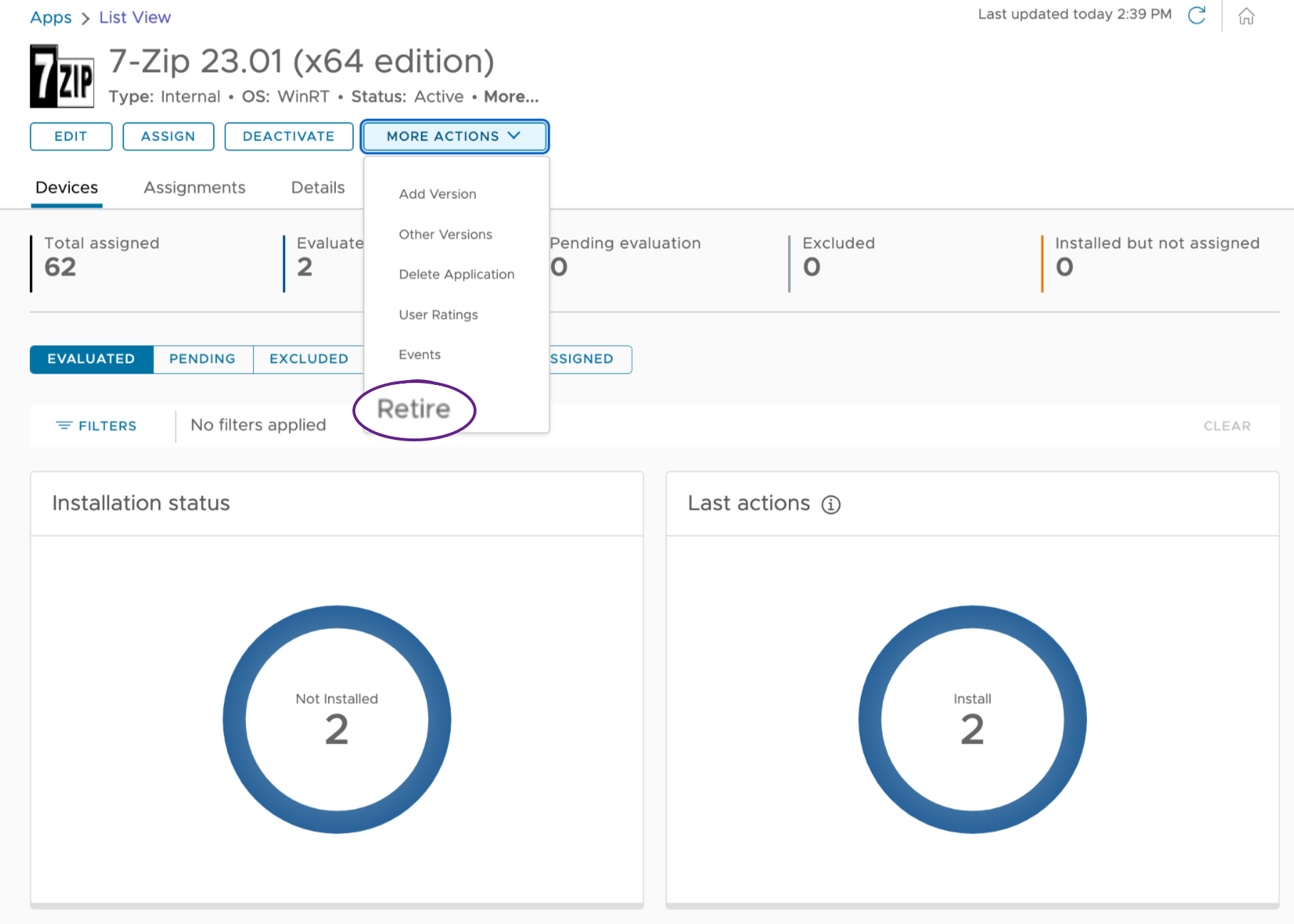

Retiring an application version (Application Rollback)

Retiring applications is similar to deactivating applications, except that it is version specific. Only the version selected when retire is selected is marked as retired, and the next older version is automatically reassigned and reinstalled.

Application Rollback is a new feature extending the retire application functionality built into Workspace ONE UEM.  It requires Workspace ONE UEM 24.10 and Modern SaaS enablement and is discussed in the What’s New section below.

In previous versions of Workspace ONE prior to 2410, when retire application was selected, the retired application was unassigned and uninstalled, but the next lower version was not automatically installed, similar to having only a single version. The application would have a Last Action Detail of “Install Command Ready for Device” which could be selected and an Install sent to those devices. While this functionality is available within the Workspace ONE UEM console by means of numerous administrative actions, Application Rollback as an extension to the Retire application function and cuts the process down to just two key steps.

Example retire / rollback scenario

If Workspace ONE UEM has Notepad++ versions 8.7.4.0, 8.6.7.0 and 8.6.1.0 and each version has an assignment including the Desktops smart group, version 8.7.4.0 will be the only version deployed to devices. Any new devices will have 8.7.4.0 deployed, and devices with any previous version will have the current version upgraded to 8.7.4.0.

If a problem is detected with Notepad++ 8.7.4.0, that version can be retired. That version will be unassigned, uninstalled from any assigned devices, the next lower version 8.6.7.0 assigned to those same devices and installed. Notepad++ 8.7.4.0 can be Unretired using the process described in Re-active Applications section once the issues are remedied.

Deleting applications

Deleting an application deactivates the application and removes it completely from the Workspace ONE UEM console. It is a destructive operation that cannot be recovered. If the version is the latest active version and a Freestyle workflow includes this application set to Latest Version, then you must change the version of the application used within the workflow first, before deleting.

This action is usually used where an old version of an application needs to be removed, or a bad version of an application needs to be removed.

Assignment of applications

After configuring an application, it will need to be assigned. Assigning resources such as applications to devices or users can be carried out by clicking Save & Assign once all the application installation, detection and uninstall parameters have been provided.

Omnissa recommends that administrators thoroughly test application installations, uninstallations, and version upgrades on a small subset of test devices using an Assignment Group (Smart Group). Smart Groups are customizable groups within Workspace ONE UEM that determine which platforms, devices, and users receive an assigned application, sensor, script, profile, baseline or workflow. Smart Groups can be static or dynamic, and therefore membership can change over time. Additionally, devices can be members of one or many smart groups.

Distribution settings

When configuring the Distribution settings for an assignment, a specific time, as well as whether the app must be installed automatically on devices or on demand. If you add multiple assignments, prioritize the importance of the assignment by placing the most important assignments at the top of the assignments list and/or moving the least important ones to the bottom of the list.

A screenshot of a computer

Description automatically generated

Figure 35: Assignment distribution settings

Assignment distribution settings include:

  • Deployment begins should align with a time when network usage is light and users will not be adversely impacted, e.g., Monday morning at 8:00 AM is likely not optimal.  Note that the time designated is based on the administrator time zone as set within the Workspace ONE UEM console.
  • App delivery method determines whether the application is forced or optional. Within most environments, auto is selected to force application deployment.  Note that this setting is one of two that are required in order to enable Desired State Management.
  • Hide notifications enabled will prevent install and uninstall notifications from appearing.  This may be useful applications that update frequently, system tools or security software.
  • Allow user install deferral may be important for applications that users access on a schedule, e.g., users may need to delay a Zoom update due to customer meetings.  Omnissa recommends changing this setting to On (green) so that users may defer application installation as necessary.
  • Display in app catalog is necessary for on-demand deployments so that users can select the app(s); however, this may be disabled for auto deployments. Disabling can be useful for hiding applications that may confuse users, such as previous versions or system tools.
  • Override reboot handling may be necessary to ensure that users are able to continue working and not be inconvenienced with a forced reboot.  For applications that require a reboot, Omnissa recommends changing this setting to On (green) and set to User-engaged restart with at least 1 day before automatic reboot.

Application installation will be initiated based upon these settings. Note that if the device does not check-in prior to the deployment begins time, the deployment will begin after the device check-in time.

Restrictions

Restrictions allow an administrator to:

  • Make app MDM managed if user installed causes a user-installed app to become managed by Workspace ONE (this does not apply to BYOD devices) where the application matches the detection criteria.  This is useful in environments where applications are deployed as part of the provisioning process, outside of Workspace ONE, or where devices are being migrated to Workspace ONE.  Note that this setting is one of two that are required in order to enable desired state management.
  • Desired state management, when enabled, causes reinstallation if the app is uninstalled by a user or other process, thus forcing the app onto the device.  This setting is only available if both app delivery method is set to auto and make app MDM Managed if user installed are enabled; otherwise, it is grayed.  Desired state management is extremely useful from a security perspective.

A white background with black text

AI-generated content may be incorrect.

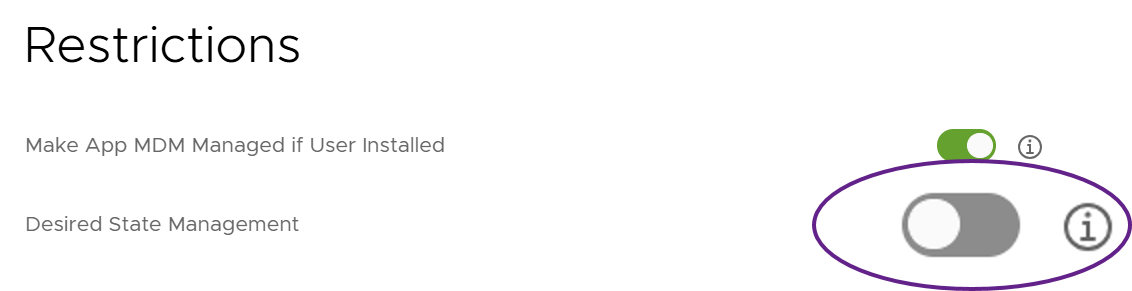

Figure 36: Desired state management is only configurable if both App delivery method is set to auto and make app MDM managed is enabled

Exclusions

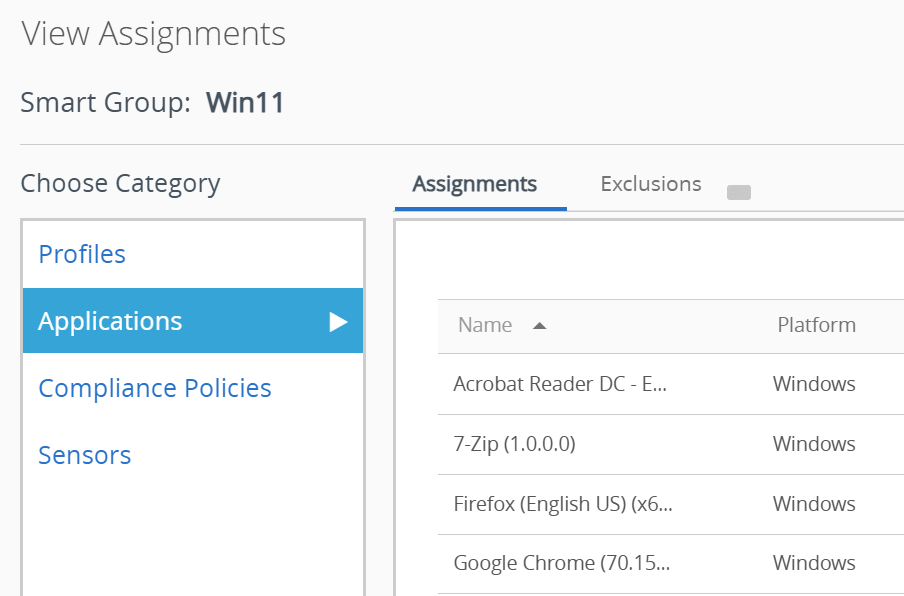

Exclusions like assignments, are used to ‘un-target’ the particular application and version. Exclusions remove devices or users from being assigned an application if they are a member of an excluded Smart Group. Additionally, if the device or user already has the application, the application will be uninstalled.

When configuring exclusions, it is necessary to set exclusions for every app version.  Prior to the transition to Modern SaaS, an older exclusion would prevail; however, this is no longer the case.

Exclusions are a great way to migrate to different applications, prevent applications from being installed that conflict with another application, or block inheritance of applications assigned at a higher level within the Workspace ONE UEM hierarchy. For example, if all devices are assigned CutePDF Reader at the top Customer OG, and a business unit requires Adobe Acrobat, an exclusion can be used to prevent CutePDF Reader deploying to devices within that business unit.

Freestyle Orchestrator

Freestyle Orchestrator can be used for many aspects of Windows management.  For more technical information about Freestyle Orchestrator, please see Getting Started with Workspace ONE UEM Workflows for Desktop Devices.

This section will touch only on application installation and uninstallation features.  Omnissa recommends the use of Freestyle Orchestrator for application deployment where complex conditions and sequencing are required. Simple application deployment should utilize the standard Application assignment method.

Any application with conditions that require an if/then validation is ideal for deployment via Freestyle Orchestrator.  Below are some key use cases:

  • Applications with prerequisites such as Zoom should only to be installed if Outlook is present.
  • Applications that require a sequenced installation such as when AppA, AppB, and AppC require installation or uninstallation in a specific order.
  • Applications that must be removed prior to installation of a new version or another application.
  • Scripts that must be run before or after an application is deployed.
  • Profiles that must be installed after an application is installed.

A screenshot of a computer

AI-generated content may be incorrect.

Figure 37: Freestyle Orchestrator example

The example workflow above checks if the OmnissaDEXDemo v1.1.0.0 application exists, using the managed application inventory for each device. If the application exists on the device, it will run a script to kill the running process of that application, then install the new version of the application (v1.2.0.0) then run a script to run the new version. If the application does not exist on the device, the workflow would simply install the new version (v1.2.0.0) and then run the script that runs the application.

Actions, as shown in the graphic above, are similar to “then” statements.  Freestyle Orchestrator includes the following actions:

  • Install application
  • Remove application
  • Install profile
  • Remove profile
  • (Run) Script

Conditions are similar to “if” statements and are useful to ensure that application conditions and prerequisites are addressed.  Freestyle Orchestrator includes the following conditions:

  • Application does/does not exist
  • File does/does not exist
  • Registry key does/does not exist
  • Sensor equals/does not equal; less than/less than or equal to; greater than/greater than or equal to; between/not between
  • Time window

When evaluating a condition, note that there are two additional settings presented:

A screenshot of a computer

Description automatically generated

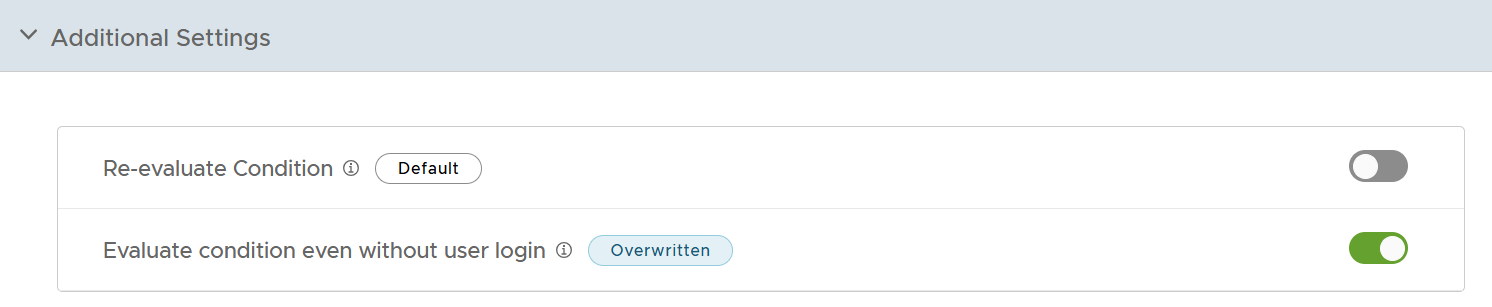

Figure 38: Additional conditional settings

Re-evaluate condition causes a system check every four hours.  In the case of application deployment, this is rarely needed but maybe required where parallel operations may change a condition.  The second item, evaluate condition even without user login, should be utilized where a workflow can deploy without a user being logged in. Note that if multiuser is enabled, workflows will be run upon user login.

Omnissa Intelligence

IntelligenceOmnissa Intelligence is a valuable tool for viewing historical and snapshot inventory and telemetry data. You can leverage the pre-built dashboards or create a custom dashboard to suit your specific needs.  An example of a pre-built dashboard is the Top 10 Installed Native Apps by Platform. To view this dashboard, from within Omnissa Intelligence, select Unified Endpoint Management > Apps from the left menu.

A screenshot of a computer

AI-generated content may be incorrect.

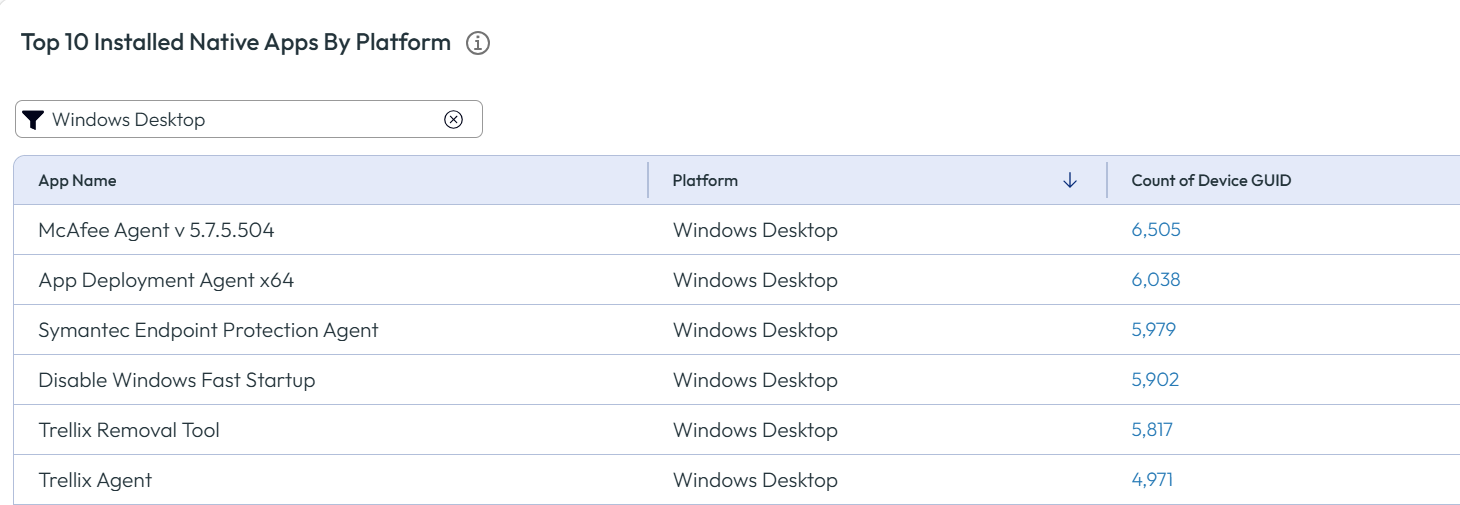

Figure 39: Top apps list with Windows Desktop filter

Delving into the usefulness of Omnissa Intelligence is beyond the scope of this document; however, you are invited to review the Getting Started with Workspace ONE Intelligence Tech Zone article.

Some new capabilities are newly available or will be released in the near term:

  • Applications can be deployed in exactly the same way to Windows Server as Windows Desktop devices. Simply configure the Supported Models field of the Application File to include Windows Server.
  • Fetch is a GitHub utility that integrates with the Microsoft Winget repository and is geared toward bulk application deployment.
  • App Volumes integration automates MSI file creation and enables MSI file output to be easily ingested by Workspace ONE.
  • Application Rollback allows administrators to easily revert back to a previous version without creating a complex Freestyle Orchestrator workflow or multiple manual processes.
  • ADMX Profiles enable administrators to configure ADMX template settings for common applications.

These items are discussed in subsequent sections.

Windows Server apps

The new Workspace ONE Windows Server functionality introduces the ability to deploy applications to Windows Servers.  Having the ability to deploy applications uniformly for both Windows Desktops and Windows Servers is particularly useful for common applications such as PDF readers and browsers.

Administrators can utilize the same applications within Workspace ONE and target to Windows Desktops and/or Windows Server devices. Administrators can also exclude applications from deploying to a particular device type, operating system version, and/or other criteria.

As part of the Application File configuration, the Supported Models field choice(s) determines whether an application can be installed on Windows Desktop and/or Windows Server.

A blue and white logo

AI-generated content may be incorrect.

Figure 40: Application details > supported models field

Fetch

Fetch is a GitHub utility that may be used to simplify bulk imports and updates of applications into Workspace ONE UEM.  With over 7,000 unique applications and a combined total of over 50,000 application versions housed in the official Microsoft Winget repository, Fetch is able to support the bulk application requirements of large enterprises.

Although many Workspace ONE administrators are currently using Fetch, please note that it is not officially supported by Omnissa.

Fetch utilizes the Winget community and vendor provided application install and uninstall recipes to populate the Workspace ONE UEM application catalog, reducing application packaging effort, and improving time to value. The tool automates the process of finding, uploading and configuring Windows applications in Workspace ONE UEM using a process outlined below:

A blue and white rectangular sign

AI-generated content may be incorrect.

Figure 41: Overview of Fetch

After initial settings configuration, Fetch provides an easy-to-use interface for locating and importing applications.  By default, the most recent 64-bit MSI file is designated; however, multiple versions of apps, as well as platforms and installers, are offered and may be selected.  In some instances, MSIX files are presented.

Alt text

Figure 42: Searching for apps, as well as already queued apps

Fetch not only automates application file downloads, including the respective manifests, but the Fetch interface enables administrators to address Windows applications in bulk.  By separating the application download process from scanning, security is ensured.

MSI/EXE file types

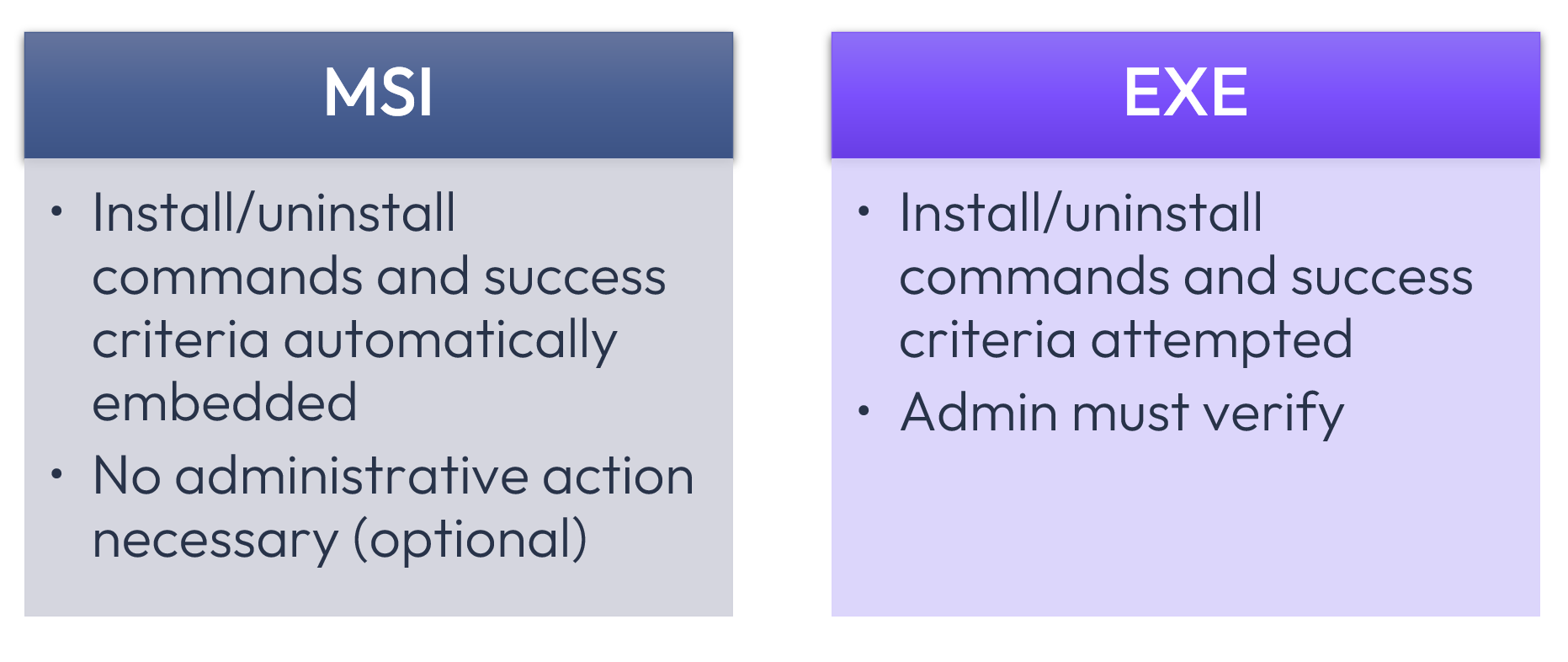

Fetch will auto-populate the Install Command, Uninstall Command, and When to Call Install Complete (defining criteria) for each imported application.  For MSI files, these parameters are automatically embedded, whereas for EXE files, these will be attempted based on the respective Winget manifest and Powershell scripts.  Please note that it is possible that any or all of these fields may not populate EXE files correctly and should be reviewed, fully tested and modified as required.

 A screenshot of a computer screen

AI-generated content may be incorrect.

Figure 43: Fetch administrative requirements based on MSI and EXE file selection, respectively

Because ZIP files are custom bundles, Fetch does not provide an automated way to create ZIP files.

App Volumes integration

Omnissa customers that have procured App Volumes licensing can maximize their investment by building MSI packages for deployment onto Workspace ONE UEM managed Windows devices.  Once created, Workspace ONE can then ingest the MSI files generated by App Volumes in conjunction with the App Volumes Agent for deployment to Windows managed devices.

For example, if your environment already uses App Volumes to create application packages for virtual desktops and/or apps, that same licensing and skill set can likewise support MSI packaging needs for Workspace ONE managed Windows devices.

A diagram of a workflow

Description automatically generated

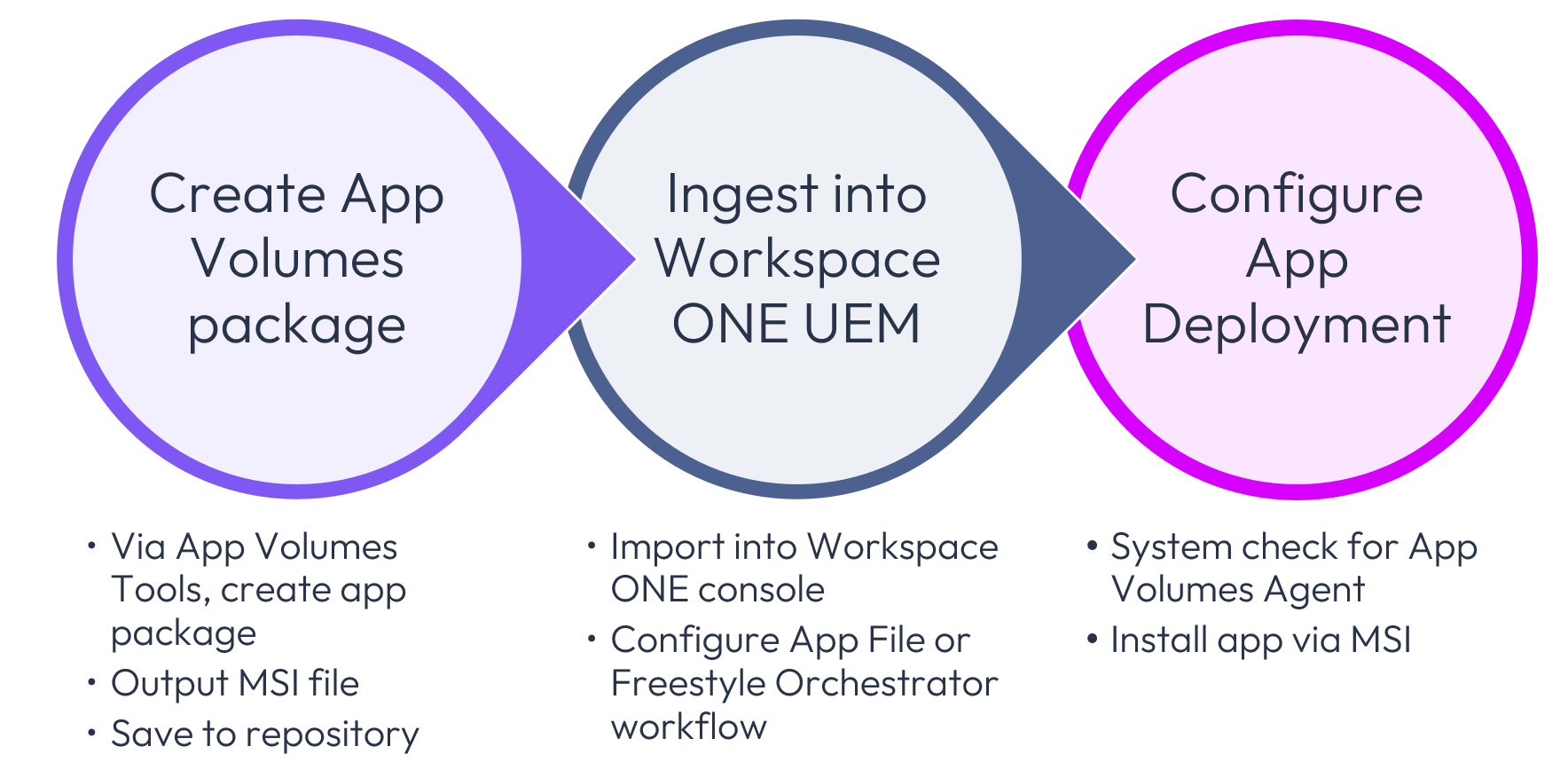

Figure 44: Using App Volumes to create MSI file for Workspace ONE UEM deployment

The diagram above depicts the process for creating an MSI package with App Volumes Tools.  Note that the App Volumes Agent version 2412 or higher is a prerequisite for installing MSI packages generated by App Volumes.

Omnissa recommends deploying MSI packages generated by App Volumes via one of the following methods:

A screenshot of a computer program

Description automatically generated

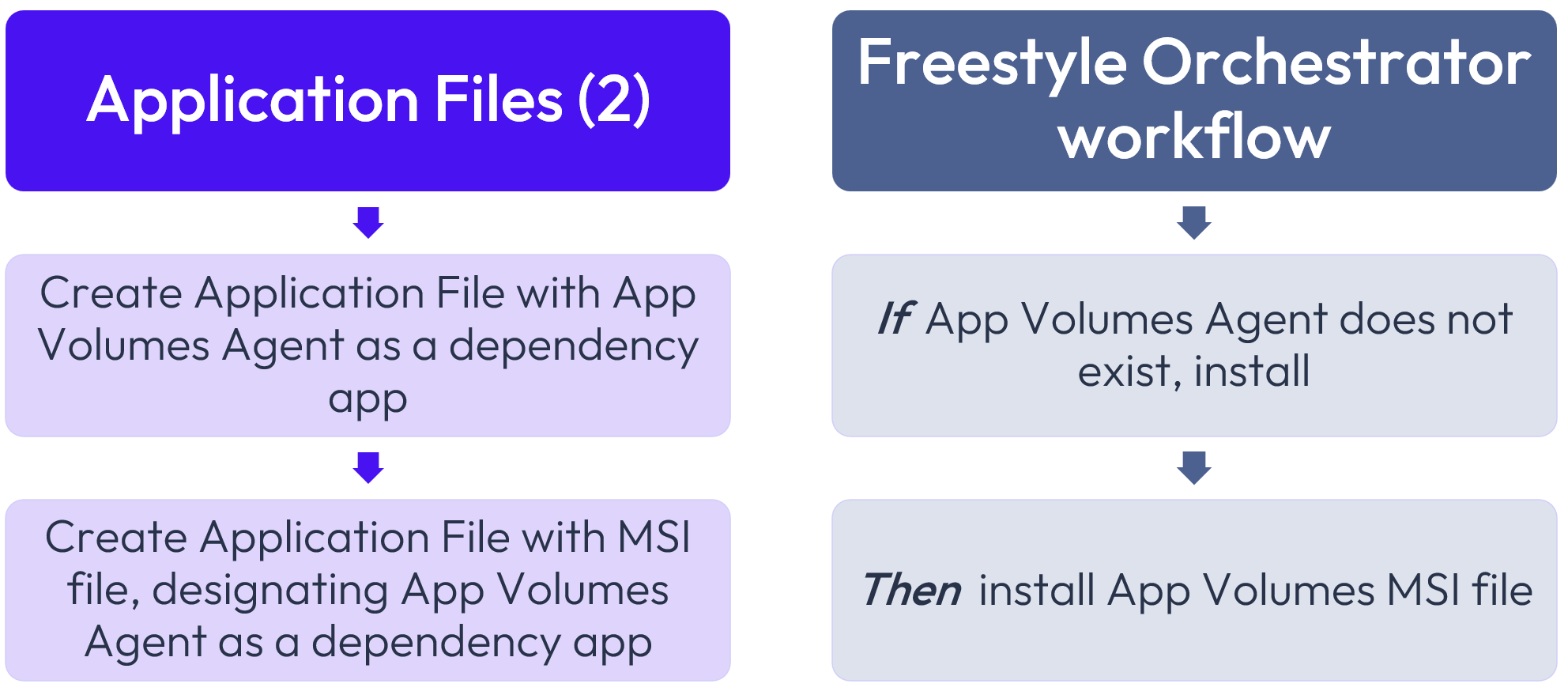

Figure 45: Using Application Files or Freestyle Orchestrator to install App Volumes-generated MSI packages

For more information about using App Volumes to create MSI files for use with Workspace ONE UEM Windows devices, please see the App Volumes Reference Architecture.


Application Rollback

Application Rollback is a new feature of Workspace ONE UEM Intelligent Hub 24.10.  The only requirements are Workspace ONE UEM 24.10 and Modern SaaS enablement.

How Application Rollback works

Application Rollback allows administrators to seamlessly uninstall the current application version and install (revert back to) the previous version.  Note that the new application file type must be the same as other(s) within that same application file.  If attempted, an error will be presented.  For example, if an application file contains a Firefox EXE, a newer Firefox MSI file cannot be appended to it.

While this functionality is available within the Workspace ONE console by means of numerous administrative actions, Application Rollback cuts it down to just two key steps, as we’ll walk through below.

Behind the scenes, the process works in this way:

A diagram of a application process

Description automatically generated

Figure 46: Application Rollback process

Thus, if you learn that there is an issue with a newer version of an application, it can be remedied quickly and easily with application rollback.

Process

Below are the steps to roll back a newer version of a Windows application.

Before attempting application rollback, there must be at least two versions of the application that have been configured as Workspace ONE Windows native apps for success.  An earlier version must already be deployed by means of the add version button.

If only one version of an app exists, and retire is clicked as shown below, the application will be retired and removed from assigned devices.

Step 1: After the newer version of the app has been deployed, select the version of application and choose Retire under more actions to initiate Application Rollback.

A screenshot of a computer

Description automatically generated

Figure 47: Click retire to roll back the application version.

Step 2: When presented with the retire application confirmation screen, click Retire.

A screenshot of a computer application

Description automatically generated

Figure 48: Click retire again to confirm

Note that within the administrative interface, the term “Retire” is used.

Administrative Templates Profiles

In March 2025, a new type of Workspace ONE Windows Profile was released into beta, with final availability expected later in 2025.  When released, the standard Administrative Templates (ADMX) will support both Windows Desktop and Windows Server devices.

In addition to the standard ADMX Templates that provide general management, additional ADMX Templates are provided to enable the configuration of several common applications. As part of the new Administrative Template Profile functionality, the following applications can be managed:

  • Adobe Reader
  • Mozilla Firefox
  • Microsoft Edge
  • Google Chrome
  • Microsoft 365

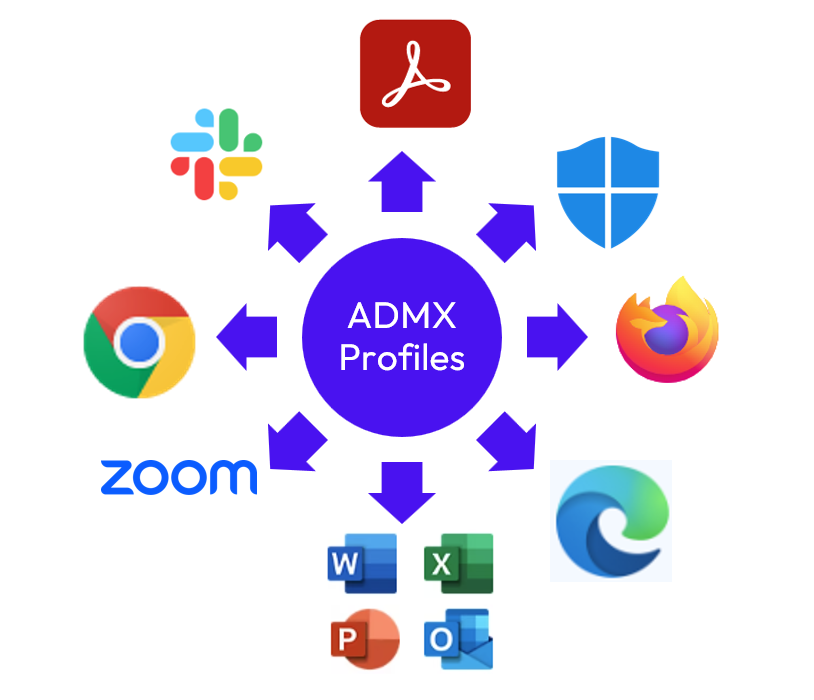

Figure 49: Initial apps that can be managed via ADMX template profiles

The settings presented within each respective administrative template profile directly align to vendor ADMX files and are managed exclusively via Workspace ONE Intelligent Hub.  In time, it is likely that other applications will be added.

For example, management of Google Chrome is easily facilitated with administrative template profile options that consist of hundreds of settings, a few of which are shown below:

A screenshot of a computer

Description automatically generated

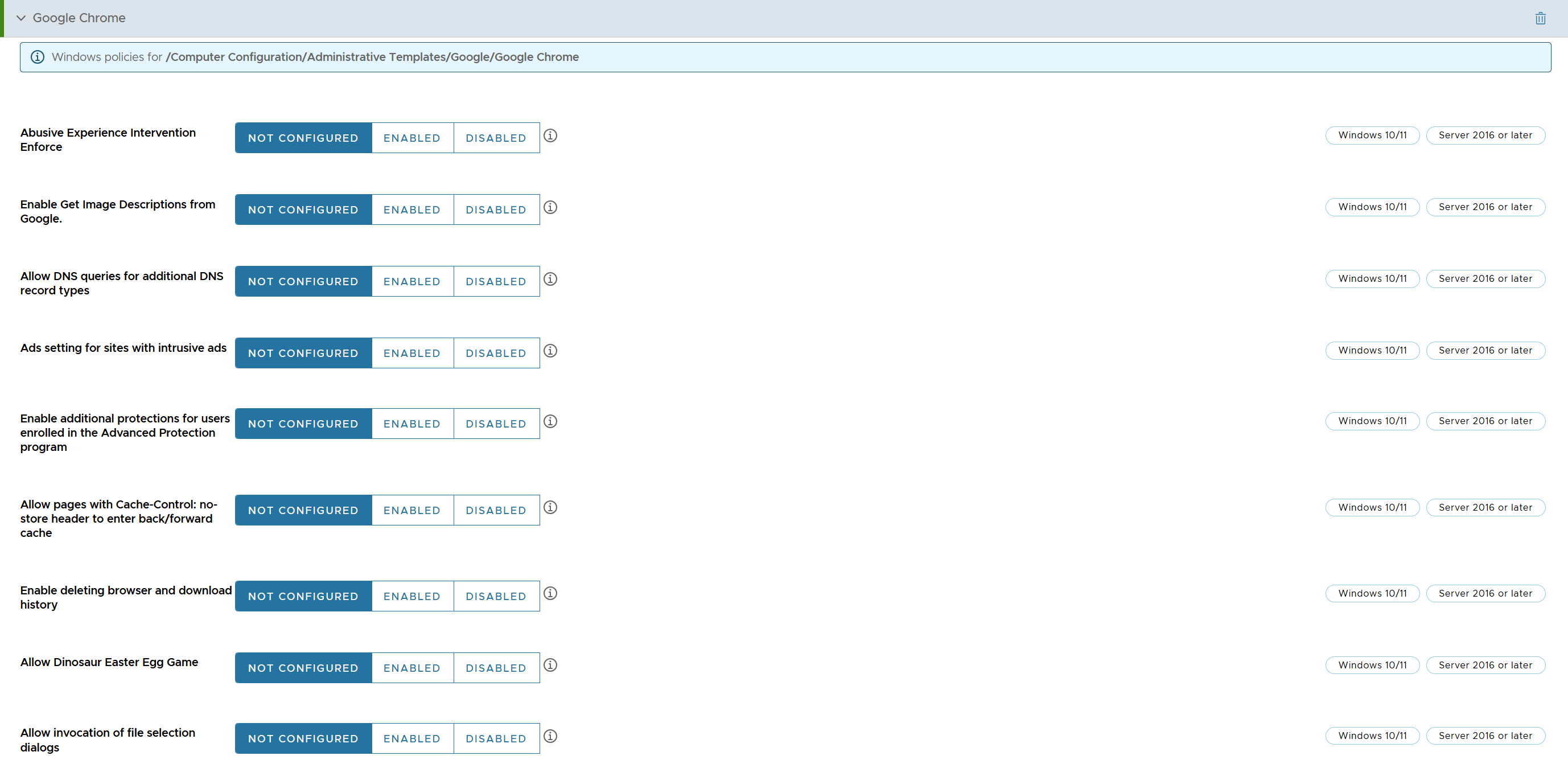

Figure 50: Subset of Google Chrome ADMX template configuration options

Note that the equivalent GPO settings are presented as part of the profile configuration.

Once administrative template profiles are generally available, the embedded templates will provide an easy-to-use solution for managing common applications, irrespective of domain join type.

Validation and troubleshooting

The status of applications can be determined from the Workspace ONE UEM console, as well as the user device.

From the Workspace ONE console

Omnissa recommends utilizing the Workspace ONE UEM console to the extent possible so as to minimize user disruption.

Application File typos

Typos and errors within the Application File are a common issue.  In particular, please check the following fields:

  • Application Install
  • Application Uninstall
  • When to Call Application Complete criteria or script

Application events

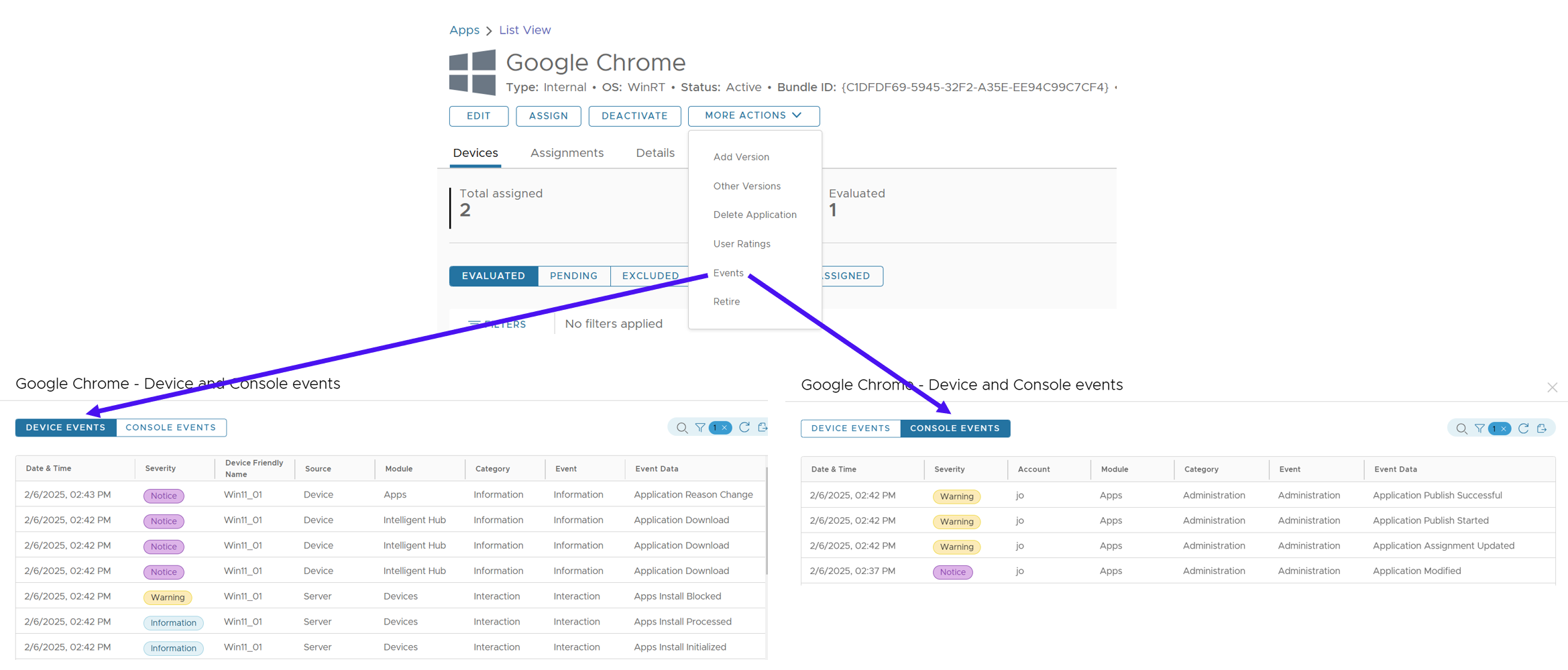

A plethora of application details can be gleaned from the Apps > List View screen.  As an example, device and console events can be viewed via More Actions > Events:

A screenshot of a computer

Description automatically generated

Figure 51: Validation via device and console events

Application status

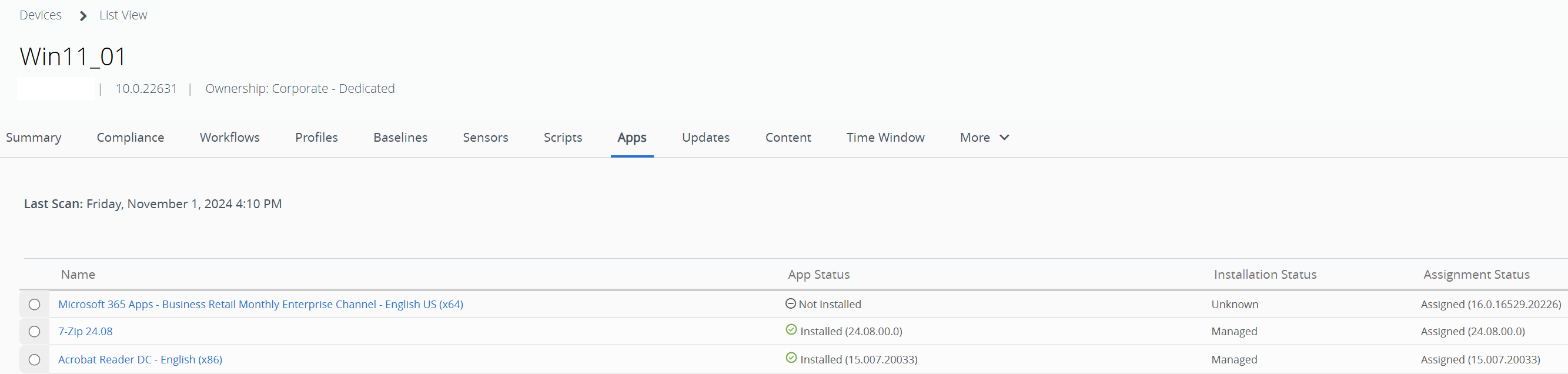

From the Workspace ONE console, administrators can easily validate the status of applications installed on specific Windows devices.  From Devices > Details View > Apps, details specific to application status on a chosen device can be viewed.

A screenshot of a computer

Description automatically generated

Figure 52: Console view of applications

By clicking on an app, the administrator can see additional details.

In addition, the Troubleshooting tab provides some information about application status.

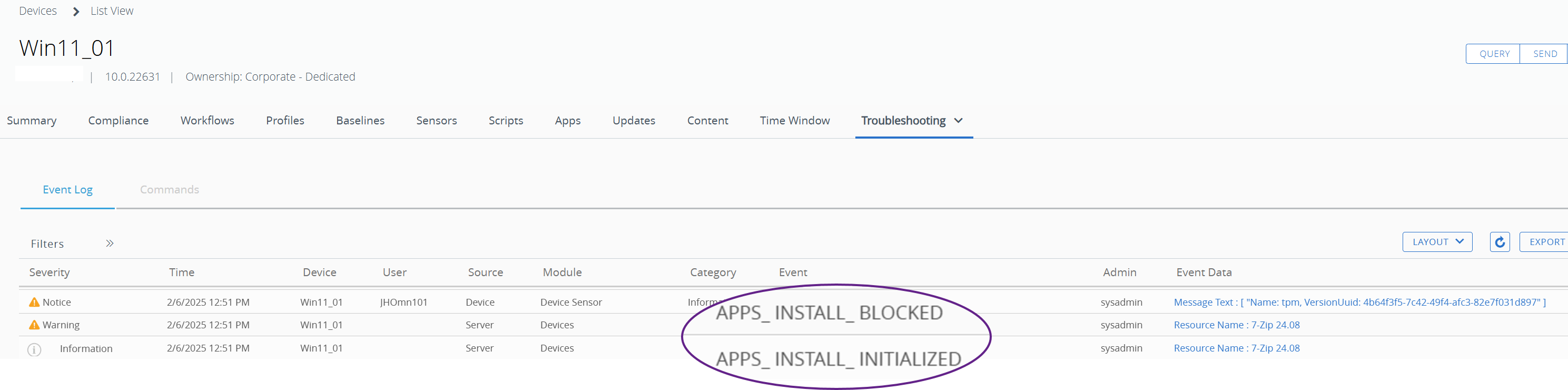

In the example below, installation of 7-Zip initialized but was then blocked.

A screen shot of a computer

Description automatically generated

Figure 53: Application information available from troubleshooting tab

Please note that the data presented may be impacted by Intelligent Hub settings.  As shown below, the default sampling interval is 6 hours, and the reporting interval is 30 minutes.  It may be necessary to adjust the frequency of one or both settings to provide the desired administrative insight.

A screenshot of a computer

AI-generated content may be incorrect.

Figure 54: Intelligent Hub settings

To adjust these settings, go to Groups & Settings > All Settings > Devices & Users > Microsoft > Windows > Intelligent Hub Settings.

When looking at the console troubleshooting logs, status messages may provide additional clues.  The following list describes status messages:

  • Install command ready for the device: The install command has been queued for the device, but the device has not yet checked into Workspace ONE UEM and consumed the command.
  • Install command dispatched: The device has checked into Workspace ONE UEM and consumed the command. At this point, the registry should have entries in the AppManifests, ContentManifests, and Queue folders for this application.
  • Installed: The application has finished installing on the device and the detection criteria provided successfully confirms the installation status.
  • User installed: Detection criterion was fulfilled before Workspace ONE UEM-driven deployment began, indicating that the application was externally installed. As a result, it is reported as installed but unmanaged.
  • Failed: Some part of the process (download, requirement evaluation, dependencies, install, detection, and so on) was unsuccessful. Note that if the installation was successful but detection failed, the client will roll back the installation of the application using the provided uninstall command.
  • MDM removed: The application has successfully uninstalled following the initiation of the application removal through Workspace ONE UEM.

From the Windows device

On the Windows device, four key steps occur:

A group of text boxes

AI-generated content may be incorrect.

Figure 55: Device-side application installation steps

Assuming that the app detection fails because the deployment manifest is not already present, verify that the application has been successfully downloaded to the C:\ProgramData\AirWatchMDM\AppDeploymentCache folder.

A screenshot of a computer

AI-generated content may be incorrect.

Figure 56: AppDeploymentCache folder on Windows device

If the app did not download successfully, you can re-push the application from the Workspace ONE console or restart the Task Scheduler.  To do the latter, open Windows Task Scheduler and navigate to Task Scheduler Library > WorkspaceONE > SfDAgent.

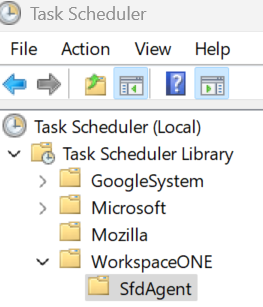

A screenshot of a computer

AI-generated content may be incorrect.

Figure 57: Task scheduler

Select both tasks (Install Validation Task and Software Distribution Queue Task), right-click and select End. Then select both tasks, right-click and select Start.

In Regedit, delete all the paths under the AppDeploymentAgent path related to the specific application GUID in HKLM\SOFTWARE\AirWatchMDM.  For example, if the installation of 7-Zip failed and its GUID is 23170F69-40C1-2702-2409-000001000000, the following entry would be removed:

  • HKLM\SOFTWARE\AirWatchMDM\AppDeploymentAgent\AppManifests\{23170F69-40C1-2702-2409-000001000000}

Send the Install command to the device again from the Workspace ONE UEM Console by navigating to Devices > List View > [Select Target Device] > Apps > Select App > Install.

Registry keys

On the Windows device, the status of application installation can be verified within various registry keys.

HKLM\Software\AirWatchMDM\AppDeploymentAgent

Specifically, three folders under HKLM\Software\AirWatchMDM\AppDeploymentAgent may be useful:

  • AppManifests
  • ContentManifests
  • SIDs

A screenshot of a computer

Description automatically generated

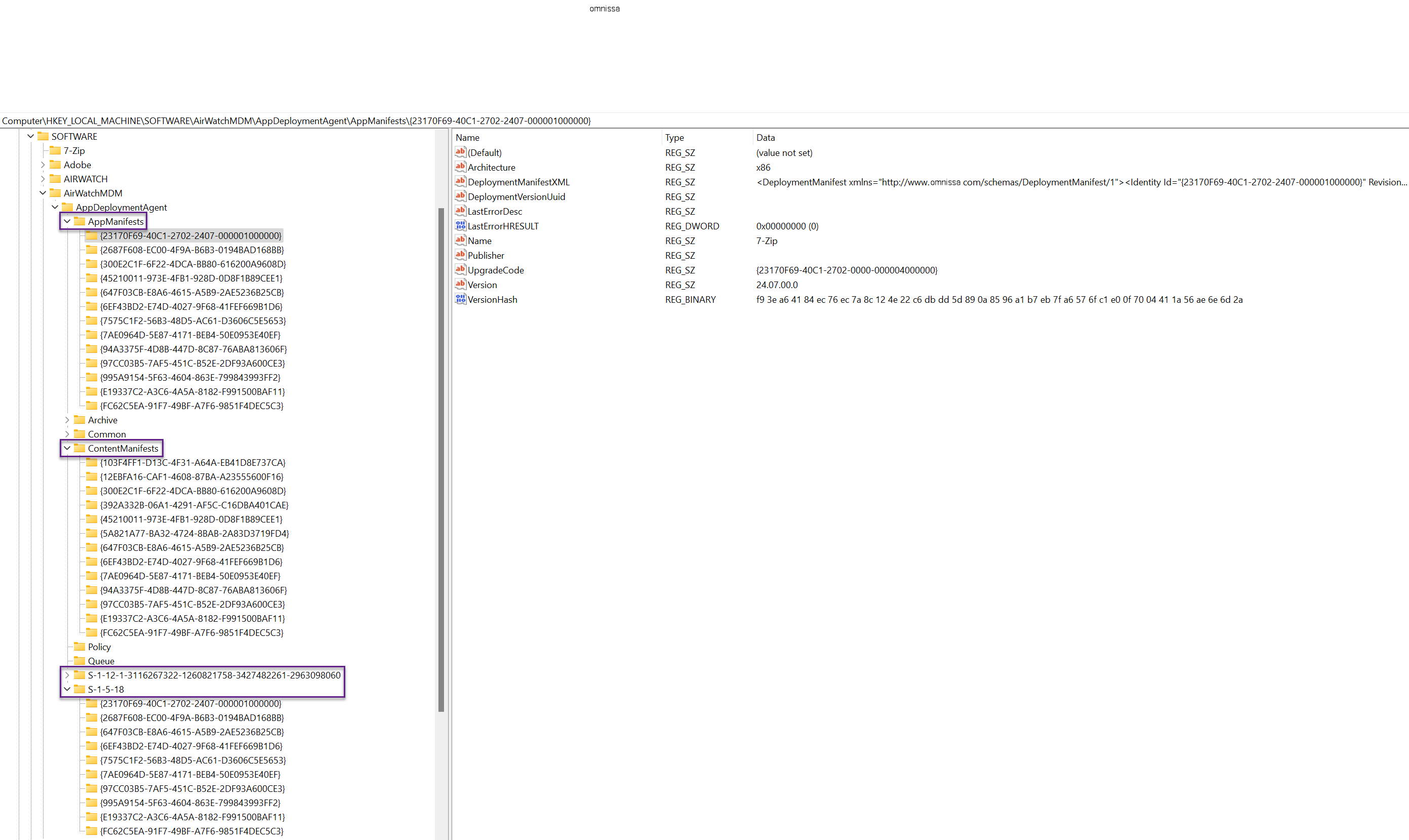

Figure 58: Verification of application status via registry

Within the AppManifests folder, the DeployManifestXML field displays the app metadata, and all application configuration settings are shown.

Within the ContentManifests folder, the ContentManifestXML field displays the URLs associated with the application deployment, including the Content Distribution Network (CDN) and peer-to-peer details.  The URLs automatically securely and automatically refresh to prevent application timeouts.

HKLM\SOFTWARE\AirWatchMDM\AppDeploymentAgent\Queue

In addition, review the Queue path under HKLM\SOFTWARE\AirWatchMDM\AppDeploymentAgent\Queue.  If present, check the LastDeploymentLog and StatusCode entries for additional details.

The DeploymentLog entry contains the log of the current deployment, including any error codes and a description of the last error, if applicable

The StatusCodeEntry is a mapping to which part of the process the client is currently performing, e.g., download, dependency evaluation, installation, etc.

The following list details StatusCode entries.

  1. 0x000: Deployment operation queued
  2. 0x100: First detection in progress
  3. 0x101: First detection failed
  4. 0x102: First detection successful

  5. 0x200: Check reference count in progress
  6. 0x201: Check reference count failed
  7. 0x202: Check reference count successful

  8. 0x300: Requirements evaluation in progress
  9. 0x301: Requirements evaluation failed
  10. 0x302: Requirements evaluation successful

  11. 0x400: Dependency deployment in progress
  12. 0x401: Dependency failed
  13. 0x402: Dependency successful

  14. 0x500: Sanitize cache in progress
  15. 0x501: Sanitize cache failed
  16. 0x502: Sanitize cache successful
  17. 0x600: Pending network connectivity
  18. 0x601: Download in progress
  19. 0x602: Pending download retry
  20. 0x603: Download content failed
  21. 0x604: Download content successful

  22. 0x700: Transform cache in progress (decompressing zip packages)
  23. 0x701: Transform cache failed
  24. 0x702: Transform cache successful

  25. 0x800: Pending user session
  26. 0x801: Install in progress
  27. 0x802: Pending deployment retry
  28. 0x803: Deployment failed
  29. 0x804: Deployment successful
  30. 0x805: Pending reboot

  31. 0x900: Final detection evaluation in progress
  32. 0x901: Final detection failed
  33. 0x902: Final detection successful

  34. 0xC0000000: Deployment operation suspended
  35. 0xC0000602: Deployment suspended — pending download retry
  36. 0xC0000802: Deployment suspended — pending install retry
  37. 0x40000000: Deployment operation failed
  38. 0x40000603: Deployment failed — download failed
  39. 0x40000803: Deployment failed — installation failed
  40. 0x80000000: Deployment operation succeeded
  41. 0x80000402: Application is externally installed
  42. 0x80000902: Deployment succeeded — final detection passed

Lastly, Queue/S-1-5-X folders contain the install status and logs for each application, where S-1-5-18 contains apps assigned to the device and S-1-5-21-X contains apps assigned to users.

  • InstallCount value indicates the following:
    • 0: The application is not installed and is not actively being deployed.
    • 1: The application is installed, or installation is being attempted. If it is a dependency application, the dependency is installed and only one package depends on it.
    • 0x8000001: The application (or dependency application) is externally installed, and assume management is not applied.
    • 2+: The dependency is installed and has x applications dependent on it, for example, if InstallCount for a dependency is 3, it is installed, and three individual application packages depend on it.

HKLM\SOFTWARE\Microsoft\EnterpriseDesktopAppManagement

The MSI folder below this key contains subfolders or keys as GUIDs for SFDAgent and Intelligent Hub pushed to a device on enrollment via OMA-DM. It is not used for Windows apps installed with SFDAgent.

Checking status codes in the registry may be helpful.  Navigate to HKLM\SOFTWARE\Microsoft\EnterpriseDesktopAppManagement and expand the MSI folder. The MSI folder contains keys (GUIDs) for applications sent down from Workspace ONE UEM via OMA-DM.

If there are entries in the MSI folder before enrolling and the GUIDs (Product Version key) match a folder that already exists, then it will fail to install because it will appear that the application is already installed, i.e., ProductVersion field or the GUID folder name matches the build version GUID in the Workspace ONE UEM console. To find this build version, click edit on the application and see the build version.

Note the following information:

  • CommandLine: The command line arguments sent down by Workspace ONE UEM. By default, /quiet is always sent, to perform a silent install.
  • CurrentDownloadURL: The device services/content delivery network (CDN) URL that the device is using to download the application. To verify that the application successfully uploaded to the console, manually copy and paste the URL into the browser and the application should download.
  • DownloadLocation: The file path where applications are downloaded.
  • LastError: Error code for failures. If you see a code, you will also see a new entry called ErrorDescription with details.
  • Status: Code of the current status.

The following table describes status codes for errors 10 to 120.

Status Code Description
10Initialized
20Download in progress
25Retrying download
30Download failed
40Download complete
50Install in progress
60Install failed
70Install complete
80Uninstall in progress
90Uninstall failed
100Uninstall complete
110Hash mismatch
120Sideloading is not enabled

Table 5: Error status codes

Note: The most common error deals with error code 30—download failed. If you get a status of 30, then ensure that:

  • If using a CDN, the user is not blocking access to (users with restricted networks should not use CDN)
  • A proxy server configuration does not hinder downloads.
  • Certificate Revocation Lists (CRLs) and Online Certificate Status Protocol (OCSP) URLs are accessible because, by default, devices must verify the validity of the SSL certificate.
  • Time synchronization is not correct.

Also check the BITS log in Event Viewer for details as these applications are downloaded using BITS.

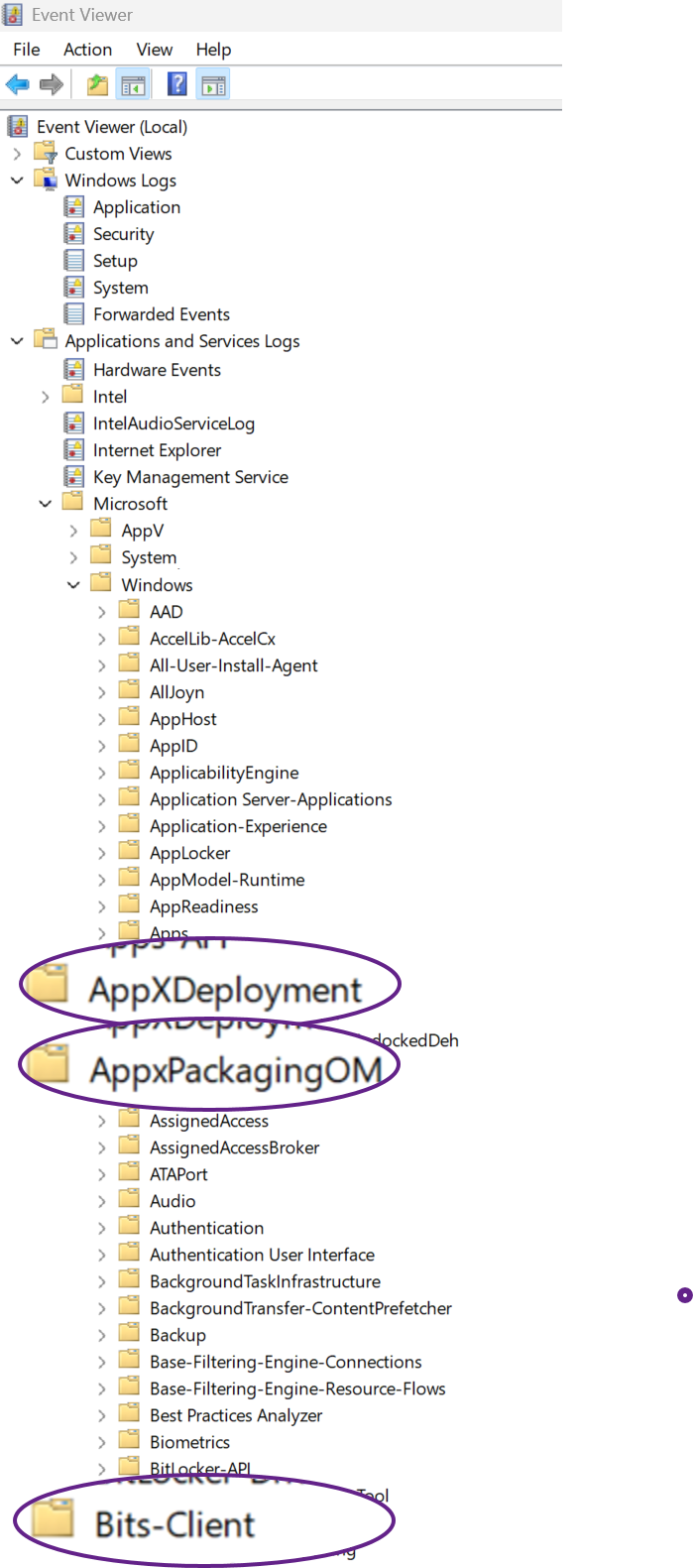

A screenshot of a computer

AI-generated content may be incorrect.

Figure 59: Useful event viewer entries

 MSI installer and Event Viewer logs

Detailed application-specific logs are stored within C:\Windows\Temp.

Event Viewer logs can be viewed in Applications and Services Logs > Microsoft > Windows > AppXDeployment-Server and Microsoft-Windows-AppxPackagingOM

CDN performance and issues

CDN configuration is managed by Omnissa for SaaS tenants.  The Akamai Edge Server is responsible for caching and distributing files based on geographic location, as well as authentication.  The Workspace ONE (AirWatch) Content Domain is the domain mapping to the configured Akamai Edge Server using CNAME (DNS plus *.edgekey.net), so firewall configuration may be necessary.

Additional troubleshooting items

In addition, some issues that you may encounter:

Issue

Likely Cause

Check

Fewer configuration options presented within Application File

Application was designated as a Dependency app

Application File tabs: all will have fewer options as compared with other apps

User confirmation requested during installation

Application File not configured to install with Admin privileges

Application File > Deployment Options > Admin Privileges

Application does not install properly

Error during installation

HKLM\Software\AirwatchMDM\AppDeploymentAgent\[GUID]\
Check:

  • LastDeploymentLog
  • LastErrorHRESULT
  • LastOperation
  • LastOperationID
  • LastStatusCode

Copy contents of LastDeploymentLog and paste into Notepad to view detailed logs

Application installation does not initiate

App not downloaded to device

  • Validate App Deployment Cache populated: HKLM\ProgramData\AirwatchMDM\AppDeploymentCache
  • Validate sufficient space on device

Application does not download

Validate CDN and P2P settings

HKLM\SOFTWARE\AirWatchMDM\AppDeploymentAgent\[GUID]\ContentManifests

Application exclusions not respected

Exclusions not designated for all app versions

After Modern SaaS upgrade, all versions of an application must detail exclusions, not just a previous version

Applications not downloaded

Validate network connectivity

Check for proxy server communication, firewall configuration, and bandwidth.

Table 6: Additional troubleshooting issues

Omnissa recommendations and best practices

To align with Omnissa best practices, please consider the following:

  • Deploy MSI packages where feasible.  MSI files are significantly easier to deploy, offer the best deployment options with Workspace ONE UEM, including the ability to utilize MSP and MST files per assignment group, and should be used where feasible. EXEs application are the next preference. ZIP packages are supported, however due to the nature of ZIP packages and possible customization of the package, deployment details may be limited compared to MSI and EXE applications.

A screenshot of a computer

AI-generated content may be incorrect.

Figure 60: File type comparison

  • Application distribution.  Content Delivery Network (CDN) and Peer-to-Peer (P2P) in conjunction with Smart Groups configured as Deployment Rings, provide the most efficient software distribution.  In addition to minimizing network bandwidth, applications are deployed to user devices at remote offices in logical groups reducing risk, improving user efficiency, reducing download waste by surviving network disconnects with automatic congestion throttling and download restarts where the downloads left off.
  • Application deployment time.  Initiate application deployment to occur at a day and time where usage is generally lighter and consider that the time setting within the Workspace ONE UEM console governs this setting, not the local time on the user device. Unless the application update is critical, allow users to defer application installation.
  • Multiuser.  Keeping in mind that once the prerequisites are met, all new Windows devices are automatically enabled for multiuser, and existing single user devices can be converted to multiuser.  Applications assigned to the device are available to all users on that device, whereas applications assigned to users are only available to those users. In addition, new application assignments will be installed upon logon, and uninstallations can also occur based on configuration, thereby utilizing CPU, memory and disk resources during the user logon process. This may negatively affect the logon user experience. As such, ensure that your application deployment strategy aligns with your multiuser or shared device requirements.
  • Freestyle Orchestrator.  Where complex conditions and sequencing are required, Omnissa recommends using Freestyle Orchestrator to configure application rollout. Simple application deployments should utilize the standard App File method.
  • Testing and Deployment Rings.  All applications should be fully tested prior to full deployment.  Consider utilizing a deployment ring methodology, i.e., initially deploying applications to small logical groups of devices, with ever increasing numbers of devices in subsequent logical groupings.  This methodology reduces the business impact of the change, reduces the risk of a bad deployment, and works in conjunction with the previously mentioned application distribution methodology.
  • Application installation timeout settings.  The default is 60 minutes, but this should be reconfigured to a shorter time for smaller installations so as not to block the device for a full hour if there is an issue with the installation.
  • Application metadata. Ensure application details such as Supported Processor Architecture and Supported Models are configured appropriately for that application. Supported Processor Architecture can be used in Smart Groups to target those specific device types. This is particularly important for ARM64 devices.
  • Supported models.  This is important for targeting the correct Windows device type. By default, Windows Desktop is selected for new devices. Windows Server can also be designated instead of or in addition to Windows Desktop.
  • Add version. Utilize Add Version to add a new version of the same application. This provides benefits such as copying assignments, and rollback to previous version using the Retire function. Note, Omnissa recommends to not select Retire Previous Version when appending a new version as this prevents rollback to the previous active version.
  • Application Rollback. Utilize More Actions > Retire to rollback an application to the previous version.

Additional resources

For more information about Windows Modern Management with Workspace ONE, you can explore the following resources:

  Windows Security and Policy Management

  Windows Baselines and Profiles

 Windows Troubleshooting

Changelog

The following changes impact this guide:

Date

Description of Changes

3/24/25

  •          Minor updates

3/12/2025

  •          Complete document rewrite.

About the author and contributors

This tutorial was written by:

  • Jo Harder, Senior Technical Marketing Architect, Omnissa
  • Phil Helmling, Senior Adoption Product Manager, Omnissa

With significant contributions from:

  • Saurabh Jhunjhunwala, EUC Staff Customer Success Architect, Omnissa
  • Michael McGuinness, Competitive Technical Specialist, Omnissa
  • Grischa Ernst, Senior Product Manager, Omnissa
  • Stephane Foucher-Jan, Senior Sales Engineer, Omnissa
  • Sujay Gopalan, Senior Technical Marketing Architect, Omnissa

Feedback

Your feedback is valuable.

To comment on this paper, contact Omnissa End-User-Computing Technical Marketing at euc_tech_content_feedback@omnissa.com.

Filter Tags

Workspace ONE Workspace ONE UEM Document
